Kenmore
Gas Water Heater

Model # 153338360 Official Kenmore power miser 8 gas water heater

Here are the diagrams and repair parts for Official Kenmore 153338360 power miser 8 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Temp Adjust F145-1277
#15

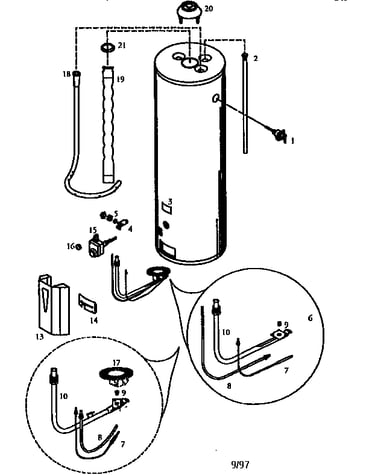

30 gallon diagram

Temp adjust

Part #F145-1277

The manufacturer no longer makes this part, and there's no substitute part

Flue Baffle 9001193
#19

30 gallon diagram

Flue baffle

Part #9001193

$31.99
In Stock
Water Heater Manifold Inner Door 9000281
#14

30 gallon diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Water Heater Pilot Tube Assembly (replaces Std317025, Std317255) 9000278
#8

30 gallon diagram

Water heater pilot tube assembly (replaces std317025, std317255)

Part #9000278

Replaced by #100108370

?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
Dip Tube 9001698
#18

30 gallon diagram

Dip tube

Part #9001698

Replaced by #100108709

?
Manufacturer substitution
This part replaces 9001698. Substitute parts can look different from the original.
$26.67
In Stock
Kenmore Elite Water Heater Washer (replaces 0540042) 9001584
#5

30 gallon diagram

Kenmore elite water heater washer (replaces 0540042)

Part #9001584

Replaced by #100108603

?
Manufacturer substitution
This part replaces 9001584. Substitute parts can look different from the original.
$24.44
In Stock
Ring 9000275
#21

30 gallon diagram

Ring

Part #9000275

Replaced by #100108369

?
Manufacturer substitution
This part replaces 9000275. Substitute parts can look different from the original.
$27.78
In Stock
Anode Rod 9000734
#2

30 gallon diagram

Anode rod

Part #9000734

Replaced by #100108660

?
Manufacturer substitution
This part replaces 9000734. Substitute parts can look different from the original.
$60.00
In Stock
Thermocouple 42-9231
#7

30 gallon diagram

Thermocouple

Part #42-9231

The manufacturer no longer makes this part, and there's no substitute part

Mag Erad 3515

#NI

All parts diagram

Mag erad

Part #3515

Replaced by #23600

?
Manufacturer substitution
This part replaces 3515. Substitute parts can look different from the original.
$35.19
In Stock
