Black & Decker
Table Saw

Model # DW746X Official Black & Decker table saw

Here are the diagrams and repair parts for Official Black & Decker DW746X table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

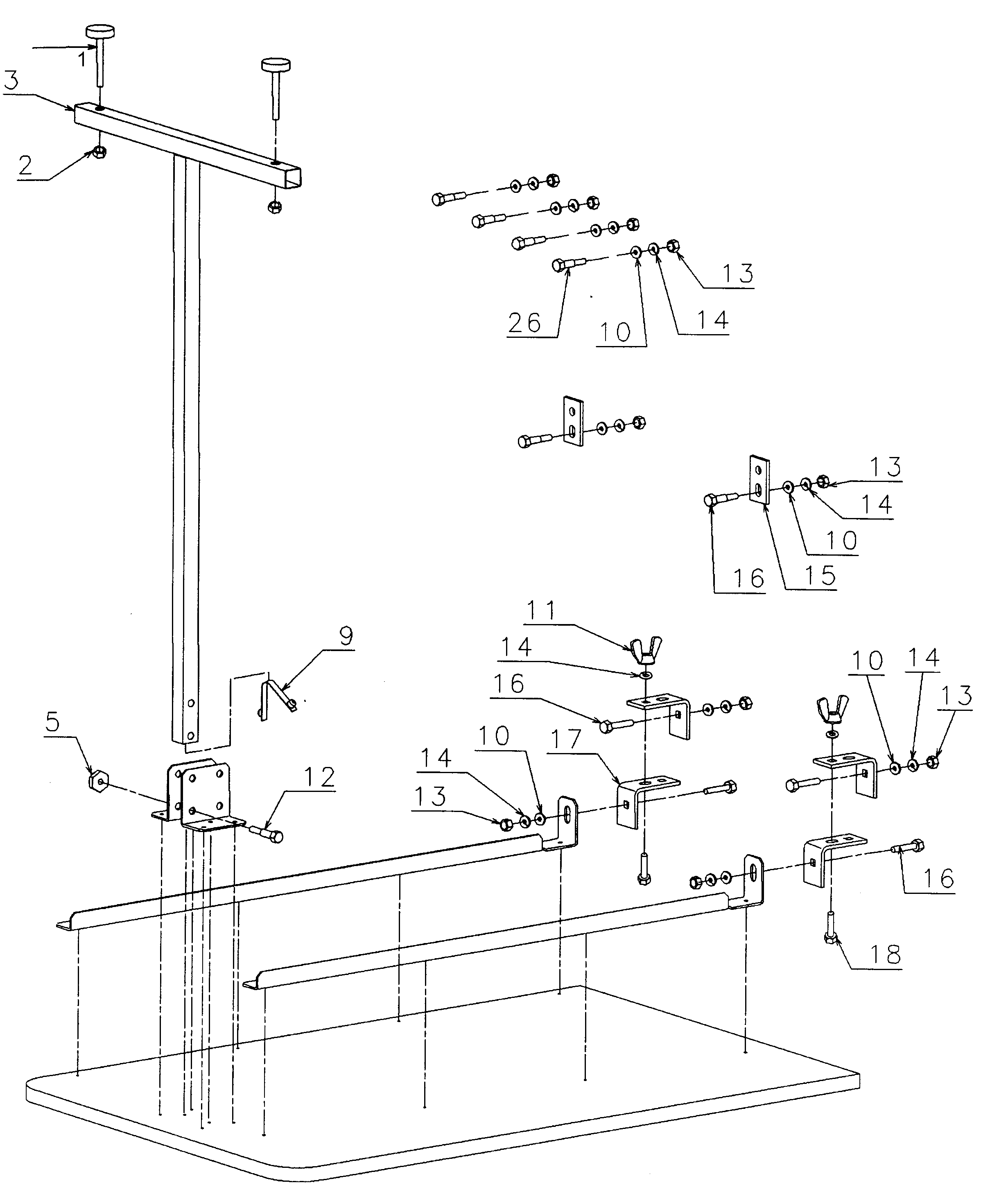

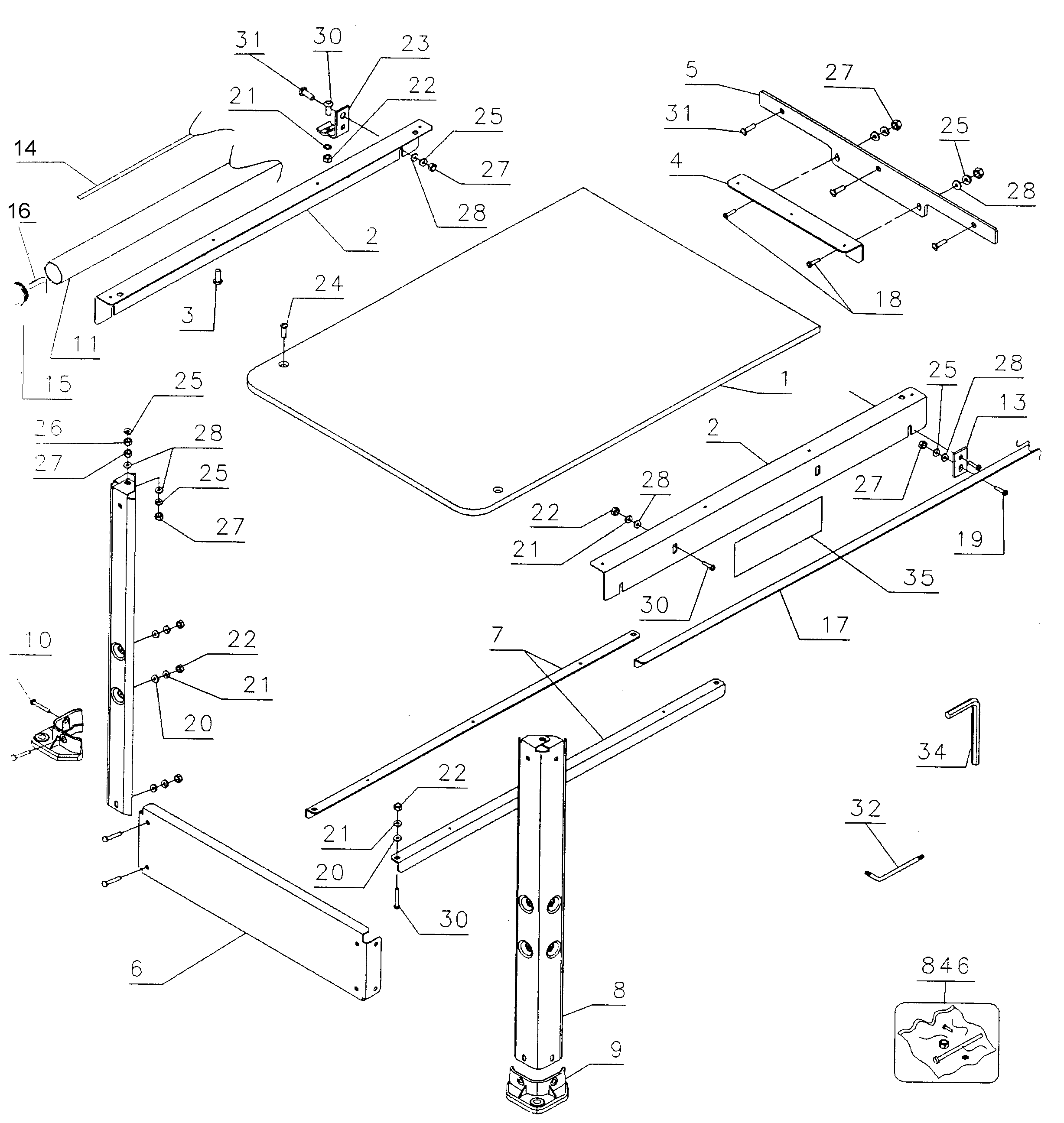

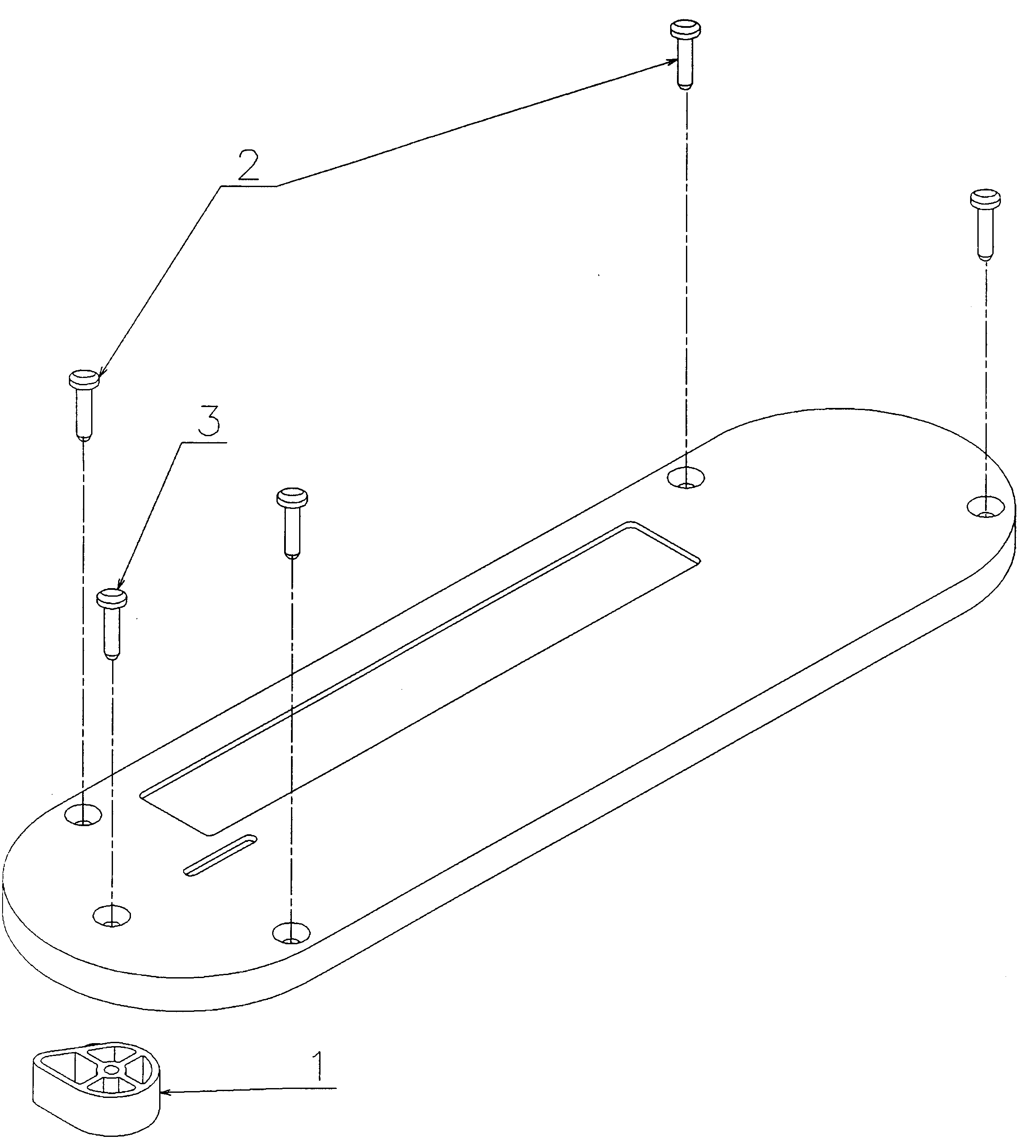

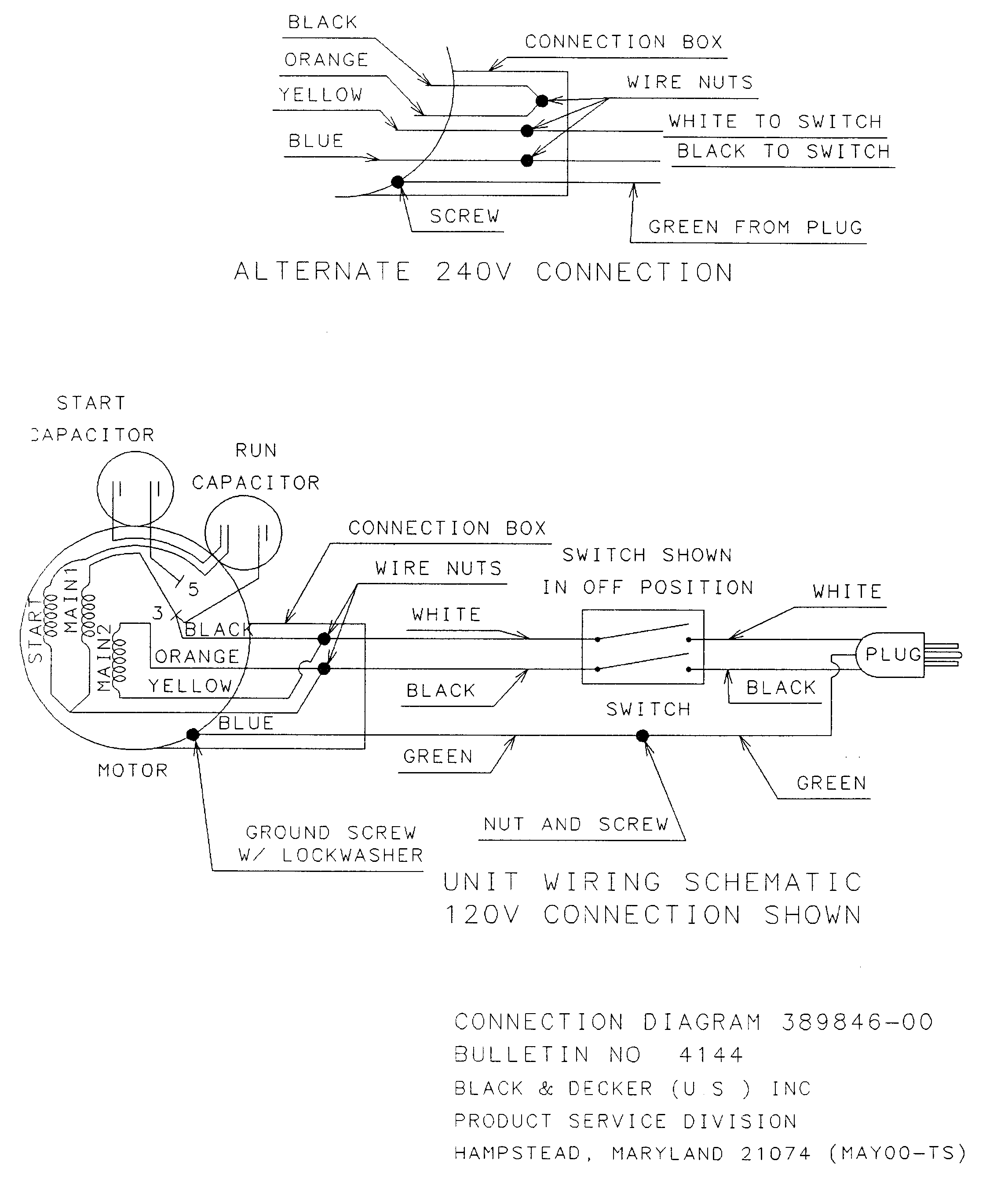

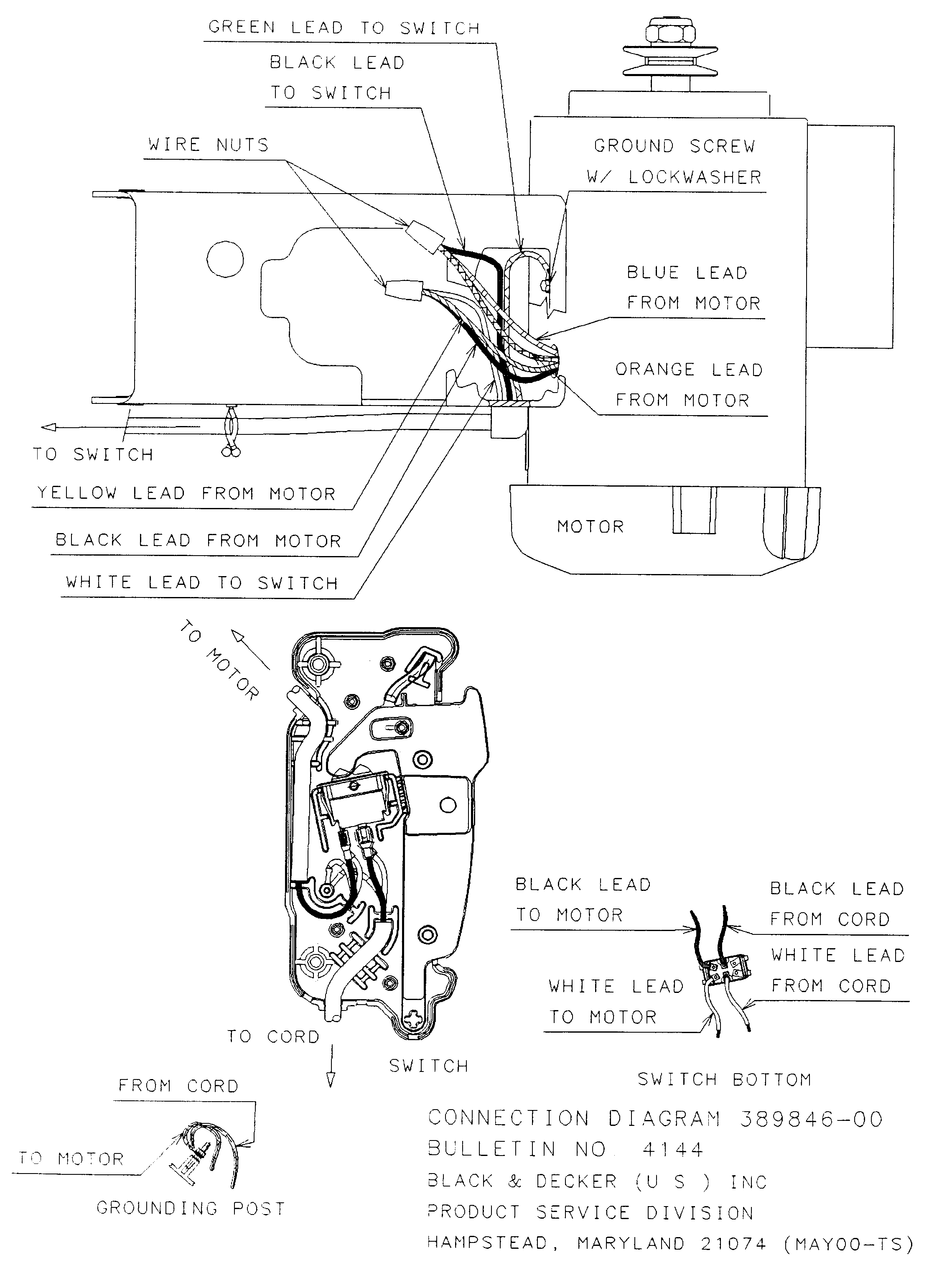

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Washer 389355-00
Washer

Part #389355-00

The manufacturer no longer makes this part, and there's no substitute part

Trunnion 389615-00
#6

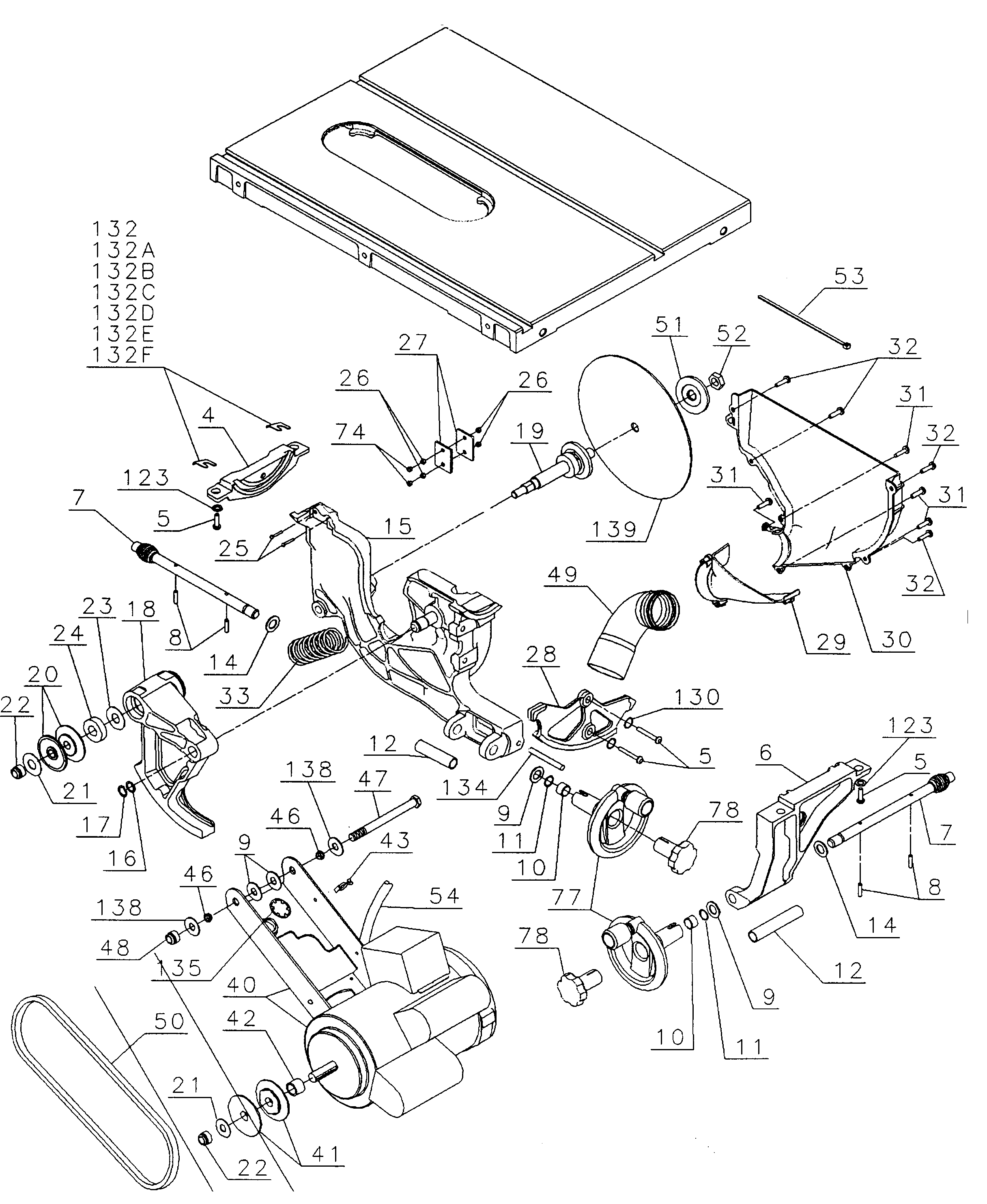

Motor/blade assy diagram

Trunnion

Part #389615-00

The manufacturer no longer makes this part, and there's no substitute part

Sw Paddle 389356-00
#36

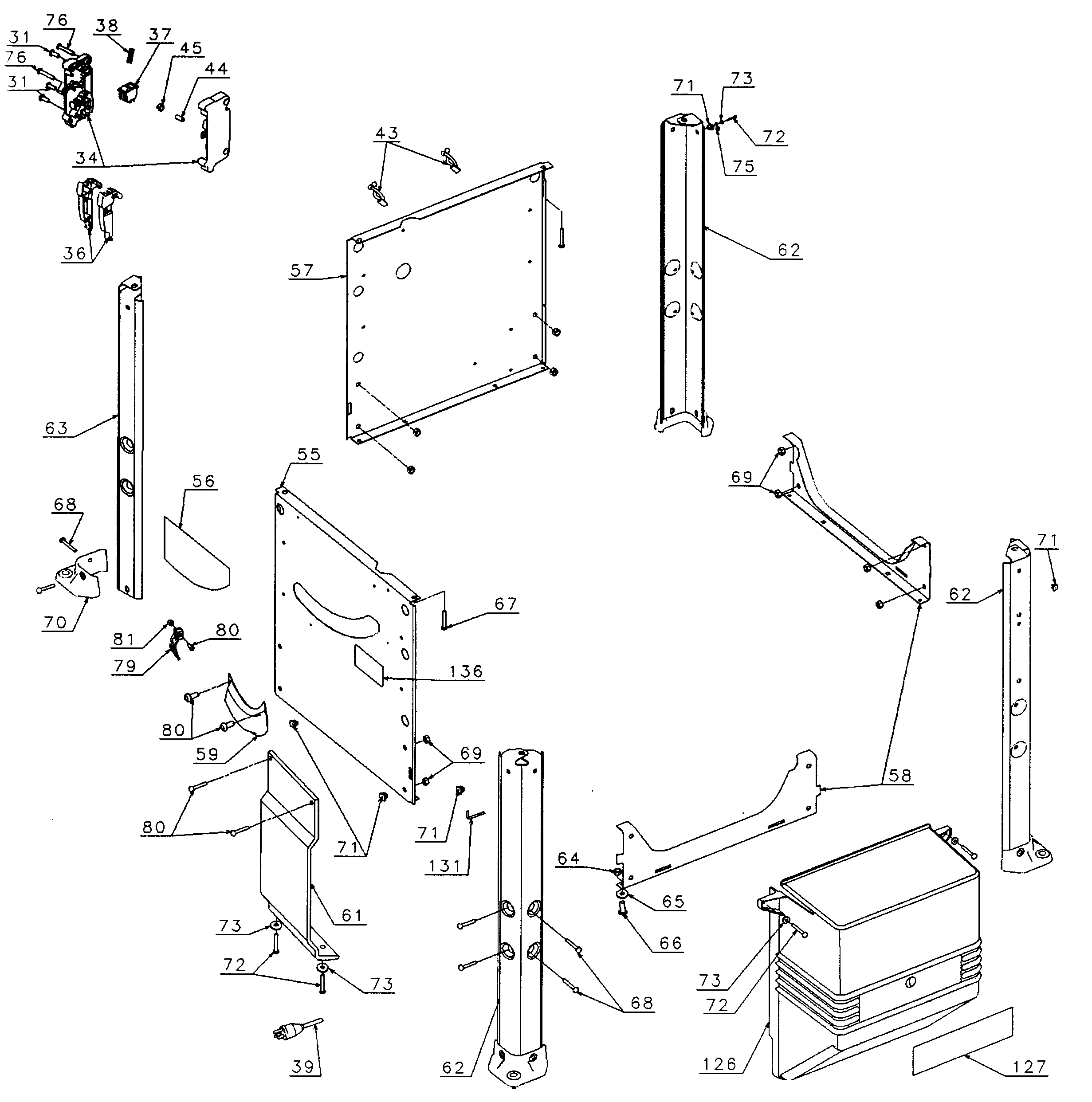

Stand diagram

Sw paddle

Part #389356-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 98023-46
#25

Motor/blade assy diagram

Screw

Part #98023-46

The manufacturer no longer makes this part, and there's no substitute part

Cradle 389875-00
#15

Motor/blade assy diagram

Cradle

Part #389875-00

The manufacturer no longer makes this part, and there's no substitute part

Pulley 389279-00
#41

Motor/blade assy diagram

Pulley

Part #389279-00

The manufacturer no longer makes this part, and there's no substitute part

Nut 389046-00
#81

Stand diagram

Nut

Part #389046-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 389686-00
#129

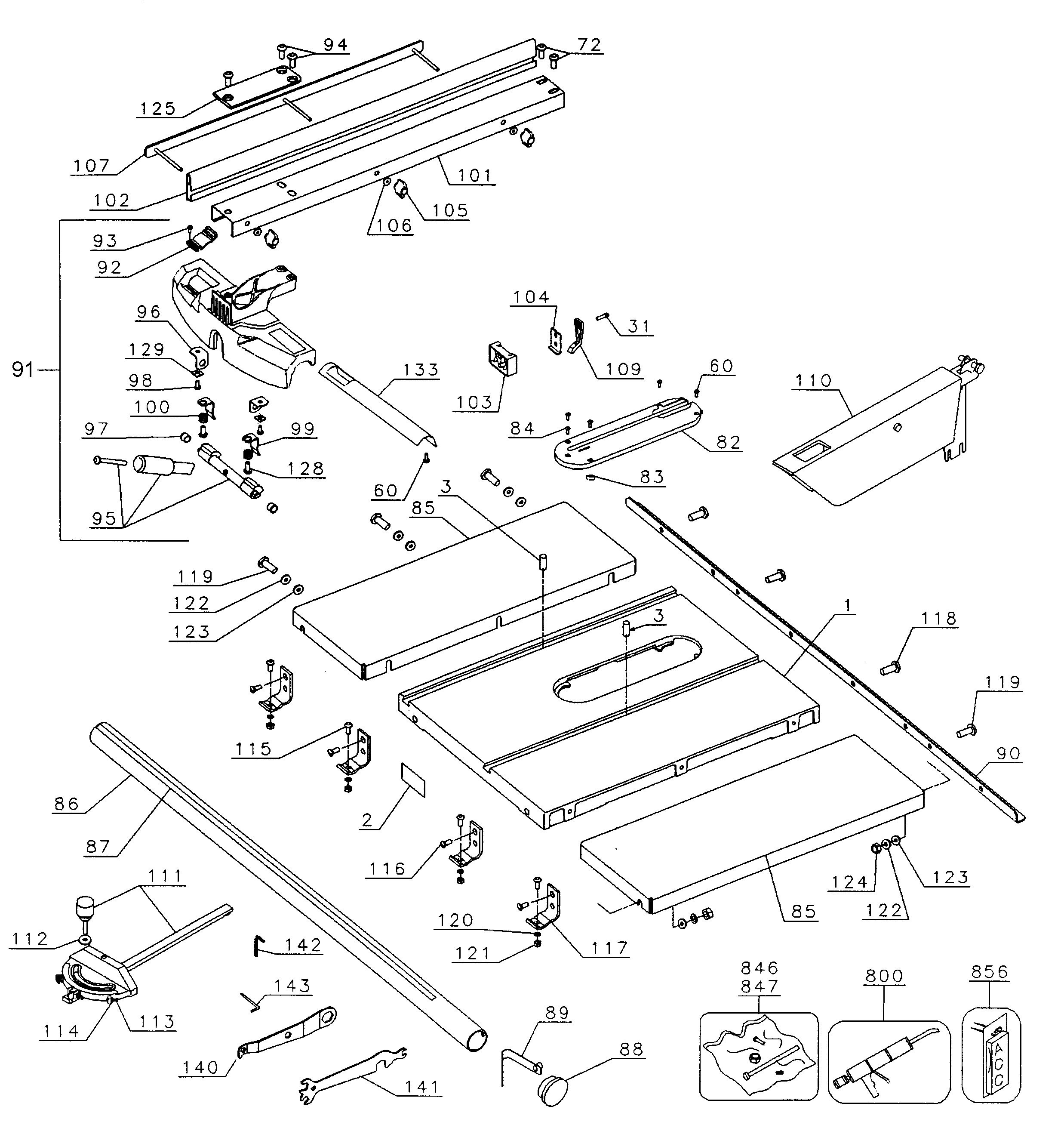

Table diagram

Washer

Part #389686-00

The manufacturer no longer makes this part, and there's no substitute part

Wire Clip 388301-00
#43

Motor/blade assy diagram

Wire clip

Part #388301-00

The manufacturer no longer makes this part, and there's no substitute part

Brace 429898-03
#5

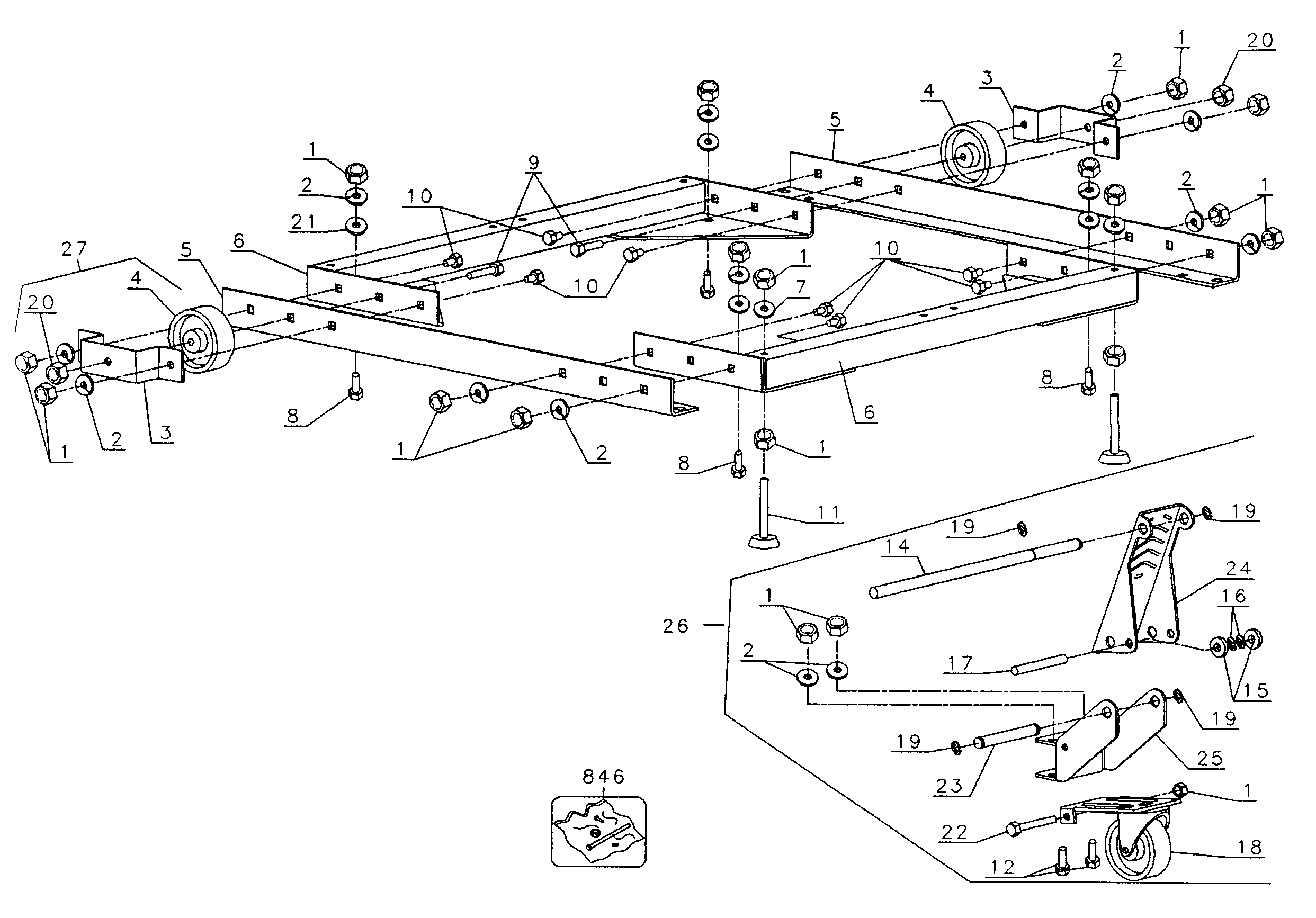

Moble base diagram

Brace

Part #429898-03

The manufacturer no longer makes this part, and there's no substitute part
