AFG
Treadmill

Model # 4.0AT Official AFG treadmill

Here are the diagrams and repair parts for Official AFG 40AT treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Treadmill Power Cord Receptacle (replaces 003363-00, Mc0703045a) 019749-A
#P06

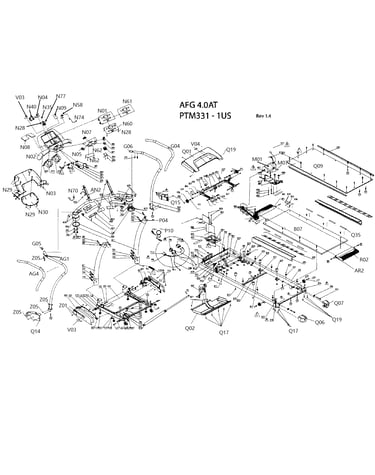

Main asy diagram

Treadmill power cord receptacle (replaces 003363-00, mc0703045a)

Part #019749-A

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
Back Order
Treadmill On/off Switch 003326-00
#P01

Main asy diagram

Treadmill on/off switch

Part #003326-00

$27.79 |
18% OFF Phone Price : $33.79
In Stock
Treadmill Transport Wheel (replaces Mb0101016ea) 000011-EA
#L01

Main asy diagram

Treadmill transport wheel (replaces mb0101016ea)

Part #000011-EA

This item is not returnable
$8.72
In Stock
Treadmill Drive Belt 019968-A
#R03

Main asy diagram

Treadmill drive belt

Part #019968-A

$62.71
In Stock
Treadmill Screw 004488-00
#R09

Main asy diagram

Treadmill screw

Part #004488-00

This item is not returnable
$2.16
In Stock
Rubber Pad 056374-AA
#M07

Main asy diagram

Rubber pad

Part #056374-AA

This item is not returnable
$5.66
In Stock
Exercise Equipment Screw 004364-00
#P29

Main asy diagram

Exercise equipment screw

Part #004364-00

This item is not returnable
$2.52
In Stock
Horizon Treadmill Transport Wheel 000021-B
#L05

Main asy diagram

Horizon treadmill transport wheel

Part #000021-B

This item is not returnable
$5.25
In Stock
Wire,safet 087242
#N66

Main asy diagram

Wire,safet

Part #087242

This item is not returnable
$5.66
In Stock
Sticker 055251-AX
#V01

Main asy diagram

Sticker

Part #055251-AX

This item is not returnable
$2.16
In Stock
