Model # MT7118XDQ3 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MT7118XDQ3 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

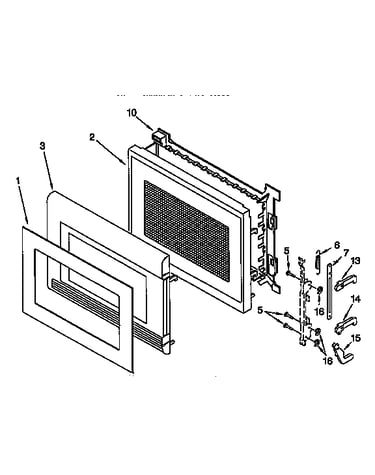

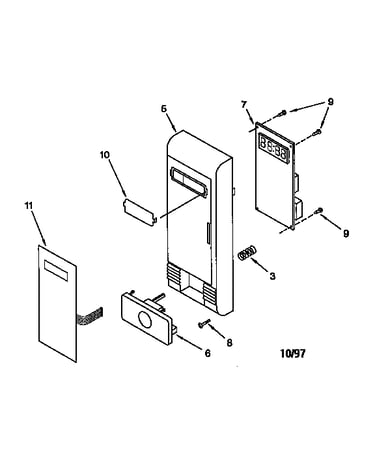

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Switch 4393498
#27

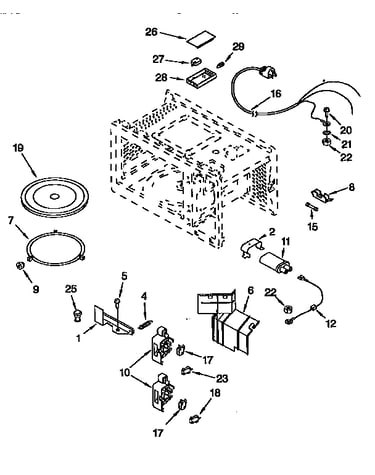

Interior diagram

Switch

Part #4393498

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4393498. Substitute parts can look different from the original.
BEST SELLER
$30.85 |
16% OFF Phone Price : $36.85
In Stock
Primary Switch 4393442
#23

Interior diagram

Primary switch

Part #4393442

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4393442. Substitute parts can look different from the original.
BEST SELLER
$30.85 |
16% OFF Phone Price : $36.85
In Stock
Thermal Fuse 4393308
#15

Interior diagram

Thermal fuse

Part #4393308

Replaced by #W11707984

?
Manufacturer substitution
This part replaces 4393308. Substitute parts can look different from the original.
$23.80
In Stock
Washer 4393278
Washer

Part #4393278

Replaced by #WP8533914

?
Manufacturer substitution
This part replaces 4393278. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 4393279
Screw

Part #4393279

Replaced by #8169480

?
Manufacturer substitution
This part replaces 4393279. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Nut 4393332
#17

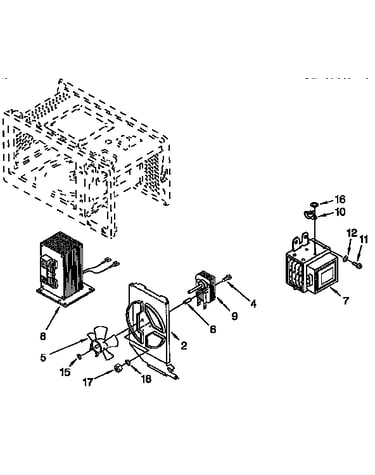

Magnetron and air flow diagram

Nut

Part #4393332

The manufacturer no longer makes this part, and there's no substitute part

Foot Base 4393282
#10

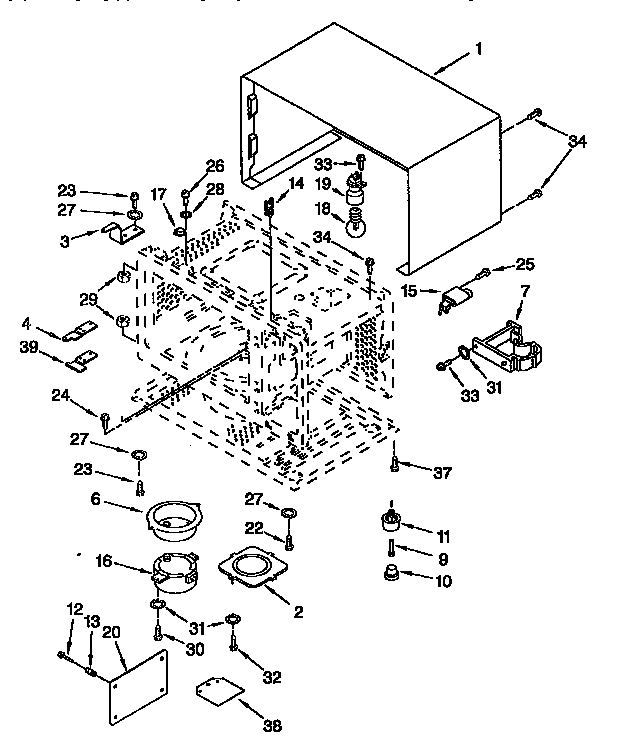

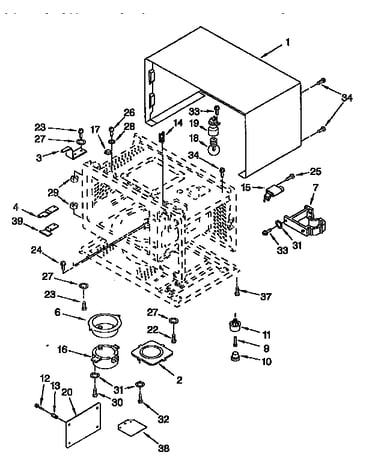

Cabinet diagram

Foot base

Part #4393282

The manufacturer no longer makes this part, and there's no substitute part

Nail 4393291
#12

Cabinet diagram

Nail

Part #4393291

The manufacturer no longer makes this part, and there's no substitute part

Screw 4393541
#4

Magnetron and air flow diagram

Screw

Part #4393541

The manufacturer no longer makes this part, and there's no substitute part

Nut 4393296
#29

Cabinet diagram

Nut

Part #4393296

The manufacturer no longer makes this part, and there's no substitute part
