Model # DR705024 Official Proform proform crosswalk treadmill

Here are the diagrams and repair parts for Official Proform DR705024 proform crosswalk treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382
#26

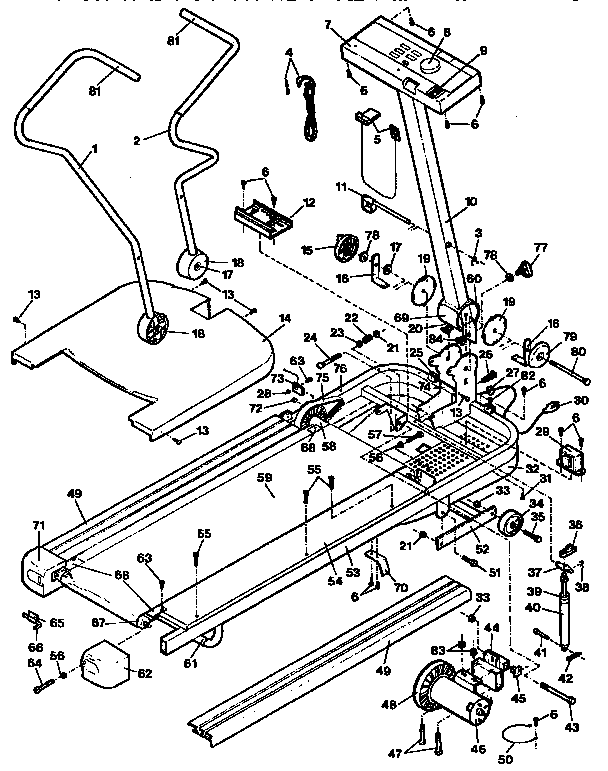

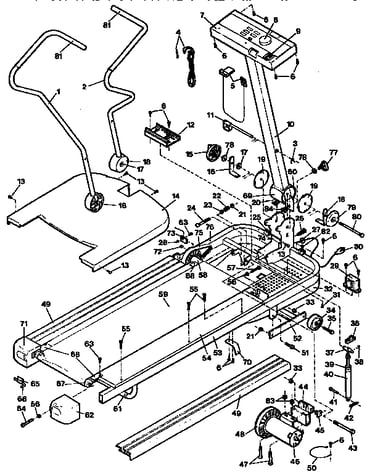

Unit parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Image Treadmill Safety Key Assembly 106337
#5

Unit parts diagram

Image treadmill safety key assembly

Part #106337

This item is not returnable
$6.59 |
13% OFF Phone Price : $7.59
In Stock
Choke,5.5mh 031238
#29

Unit parts diagram

Choke,5.5mh

Part #031238

Replaced by #130993

?
Manufacturer substitution
This part replaces 031238. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Mag,rnd,for 033066
#72

Unit parts diagram

Mag,rnd,for

Part #033066

Replaced by #113842

?
Manufacturer substitution
This part replaces 033066. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Walking Belt Assembly 126255
#59

Unit parts diagram

Walking belt assembly

Part #126255

Replaced by #124882

?
Manufacturer substitution
This part replaces 126255. Substitute parts can look different from the original.
$54.79 |
10% OFF Phone Price : $60.79
In Stock
Nut,hex Nyl 012082
#21

Unit parts diagram

Nut,hex nyl

Part #012082

The manufacturer no longer makes this part, and there's no substitute part

Om,dr705024/ 115693

#NI

All parts diagram

Om,dr705024/

Part #115693

This item is not returnable
$2.99
In Stock
Cotter Pin,3 106334
#42

Unit parts diagram

Cotter pin,3

Part #106334

This item is not returnable
$2.16
In Stock
Screw 101049
#82

Unit parts diagram

Screw

Part #101049

This item is not returnable
$2.16
In Stock
Weider Exercise Equipment Screw 112609
#57

Unit parts diagram

Weider exercise equipment screw

Part #112609

This item is not returnable
$2.16
In Stock
