Kenmore
Upright Vacuum

Model # 1753287181 Official Kenmore heavy-duty upright vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1753287181 heavy-duty upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

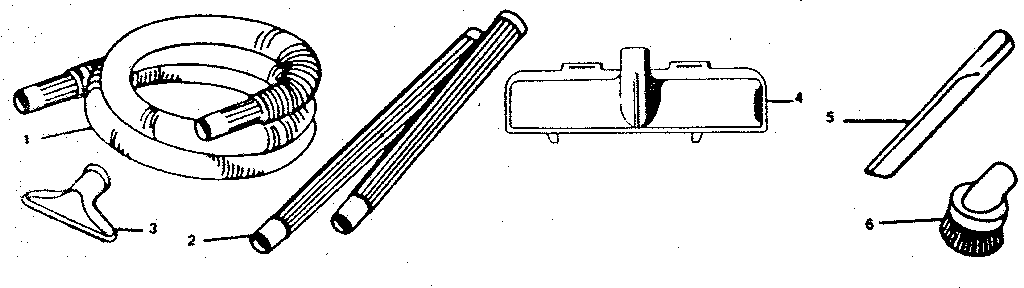

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |

Mounting Screw 643146-001
#43

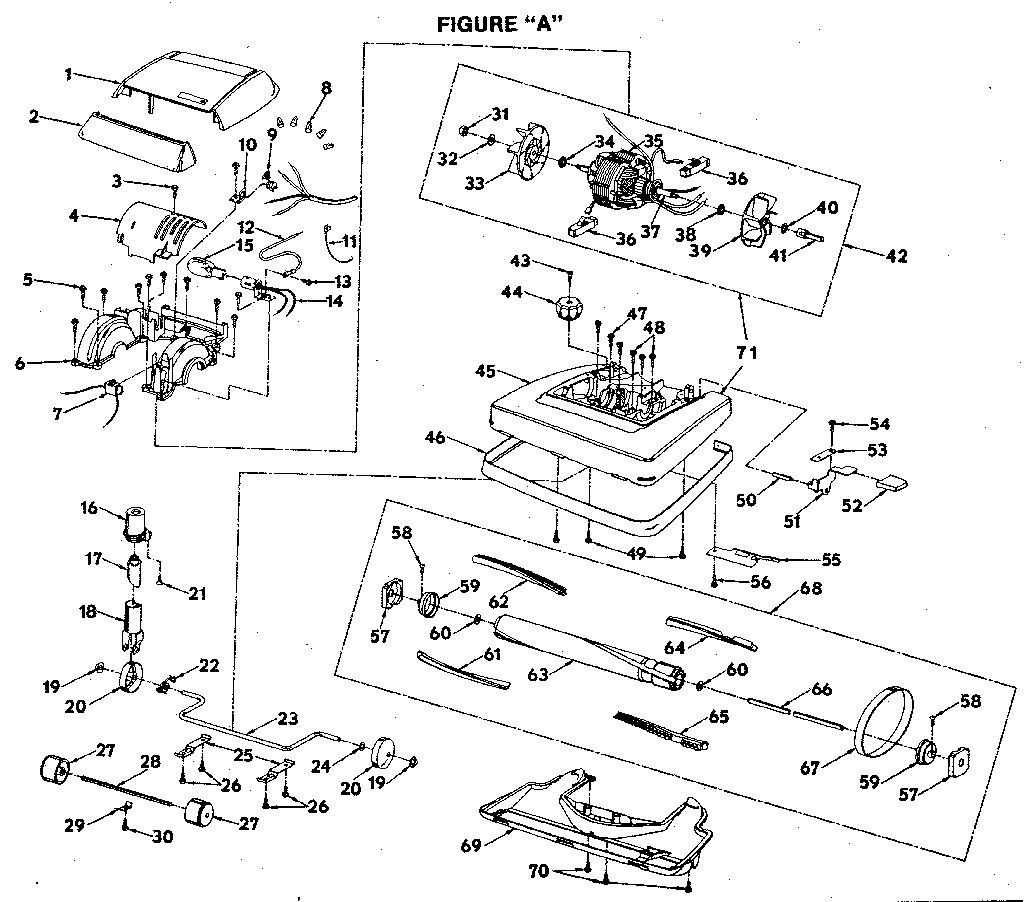

Nozzle and motor assembly diagram

Mounting screw

Part #643146-001

The manufacturer no longer makes this part, and there's no substitute part

Axle 643740-001
#23

Nozzle and motor assembly diagram

Axle

Part #643740-001

The manufacturer no longer makes this part, and there's no substitute part

Retainer Plate 643015-000
#29

Nozzle and motor assembly diagram

Retainer plate

Part #643015-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-321
#60

Nozzle and motor assembly diagram

Washer

Part #706382-321

The manufacturer no longer makes this part, and there's no substitute part

Screw 643533-003
#21

Nozzle and motor assembly diagram

Screw

Part #643533-003

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 20-5240
#15

Nozzle and motor assembly diagram

Light bulb

Part #20-5240

The manufacturer no longer makes this part, and there's no substitute part

Complete Motor 644096-003
#42

Nozzle and motor assembly diagram

Complete motor

Part #644096-003

The manufacturer no longer makes this part, and there's no substitute part

Label 660064-004
#31

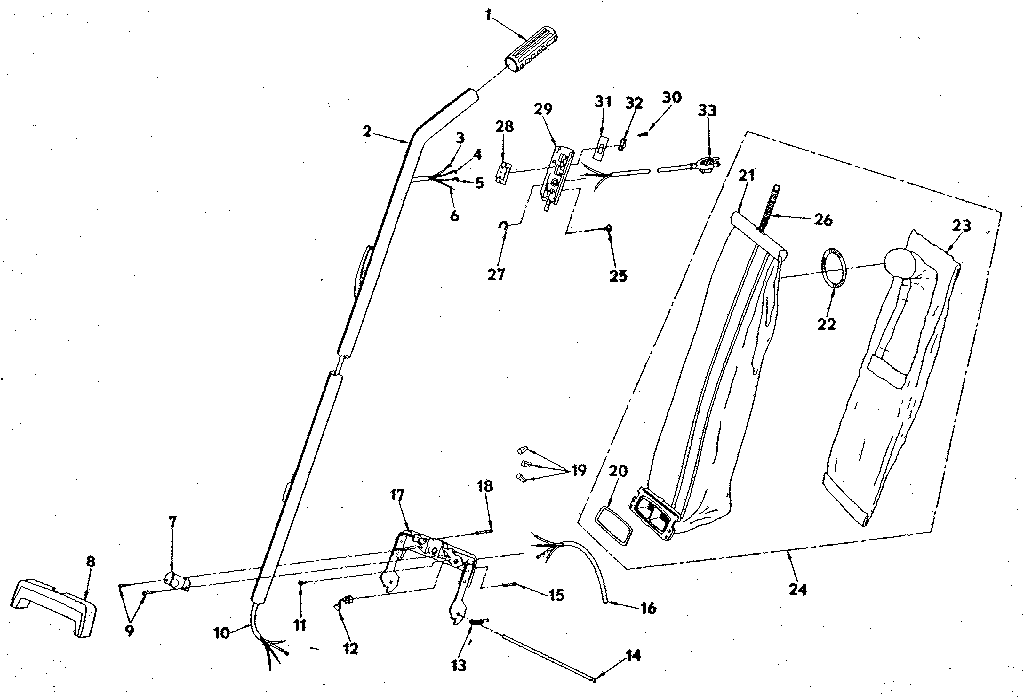

Handle and bag housing diagram

Label

Part #660064-004

The manufacturer no longer makes this part, and there's no substitute part

Complete Field 644054-001
#35

Nozzle and motor assembly diagram

Complete field

Part #644054-001

The manufacturer no longer makes this part, and there's no substitute part

Flr Br Holdr 643763-005
#63

Nozzle and motor assembly diagram

Flr br holdr

Part #643763-005

The manufacturer no longer makes this part, and there's no substitute part
