Model # 51272214-82 Official Sears gym set

Here are the diagrams and repair parts for Official Sears 51272214-82 gym set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
End Cap 441-834
#19

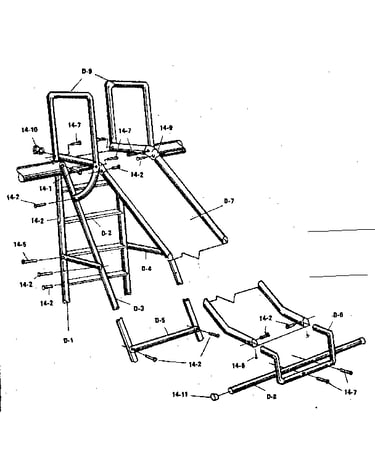

Slide hardware bag #96110 diagram

End cap

Part #441-834

The manufacturer no longer makes this part, and there's no substitute part

(14-5) Rd. Hd. Bolt 1/4-20 X 1 1/2" 416-802727
#14

Slide hardware bag #96110 diagram

(14-5) rd. hd. bolt 1/4-20 x 1 1/2"

Part #416-802727

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bolt 416-805936
Carriage bolt

Part #416-805936

The manufacturer no longer makes this part, and there's no substitute part

Sockette 441-837
Sockette

Part #441-837

The manufacturer no longer makes this part, and there's no substitute part

Sockette 441-824
Sockette

Part #441-824

The manufacturer no longer makes this part, and there's no substitute part

Ladder Supt 808366
#3

Slide hardware bag #96110 diagram

Ladder supt

Part #808366

The manufacturer no longer makes this part, and there's no substitute part

Hand Rail 847966
#9

Slide hardware bag #96110 diagram

Hand rail

Part #847966

The manufacturer no longer makes this part, and there's no substitute part

Foot Rest 441-1227
#1

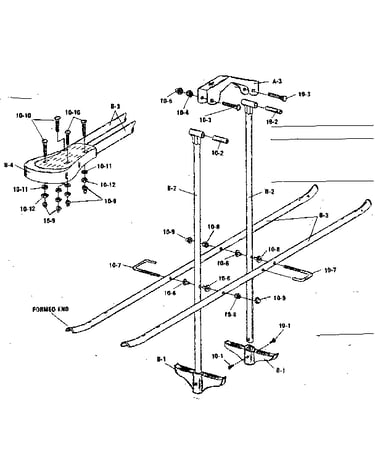

Glide ride hardware bag #94206 diagram

Foot rest

Part #441-1227

The manufacturer no longer makes this part, and there's no substitute part

Cap 441-823
Cap

Part #441-823

The manufacturer no longer makes this part, and there's no substitute part

Top Bar 800566
#16

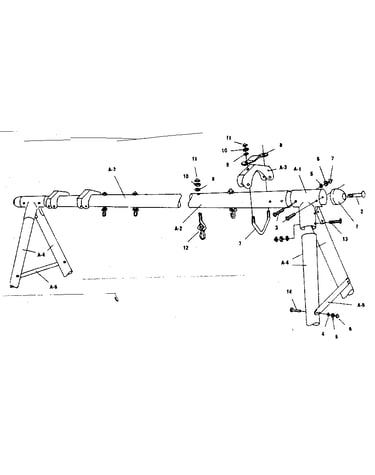

A-frame hardware bag #93670 diagram

Top bar

Part #800566

The manufacturer no longer makes this part, and there's no substitute part
