Kenmore
Room Air Conditioner

Model # 25379107991 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25379107991 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

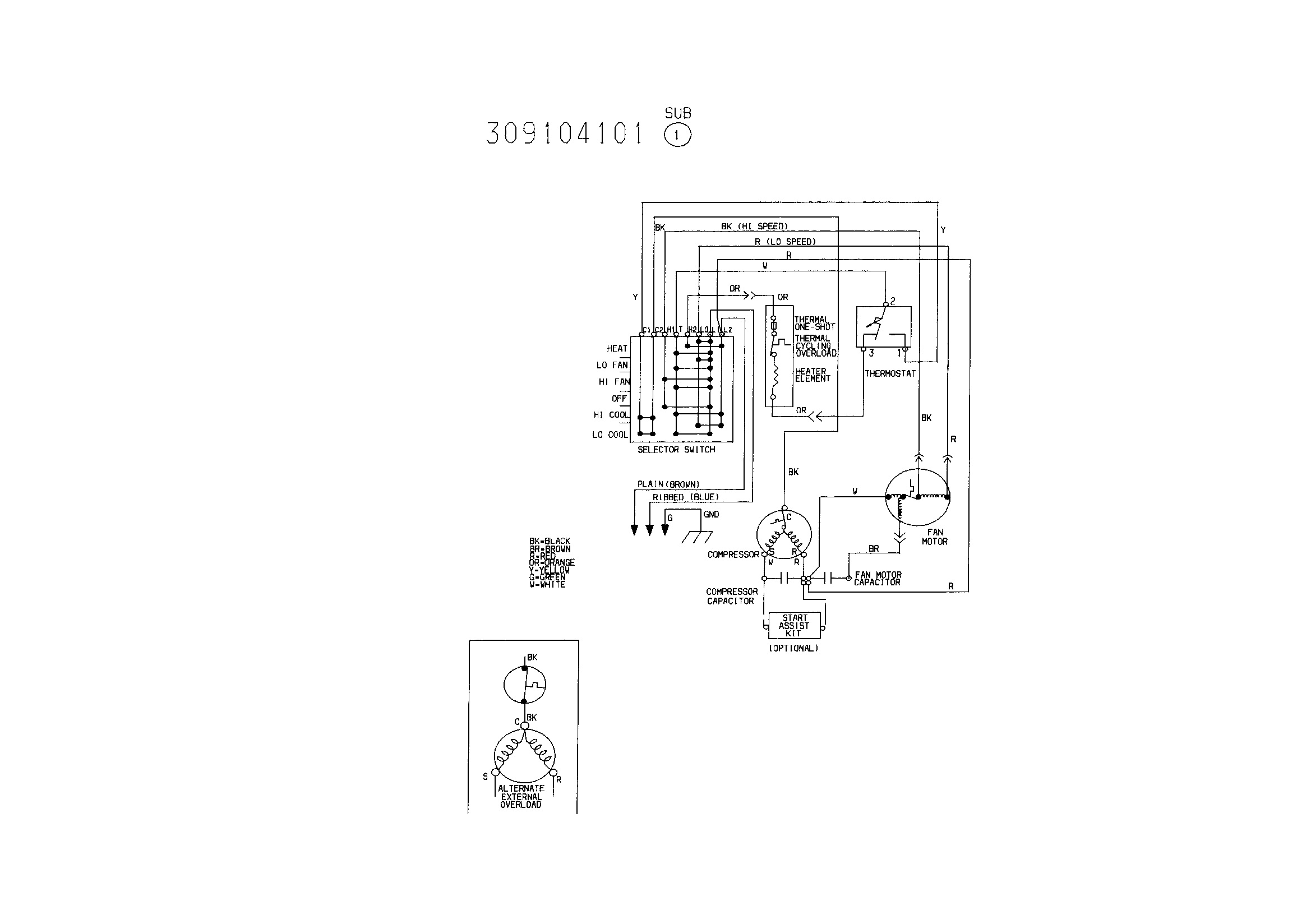

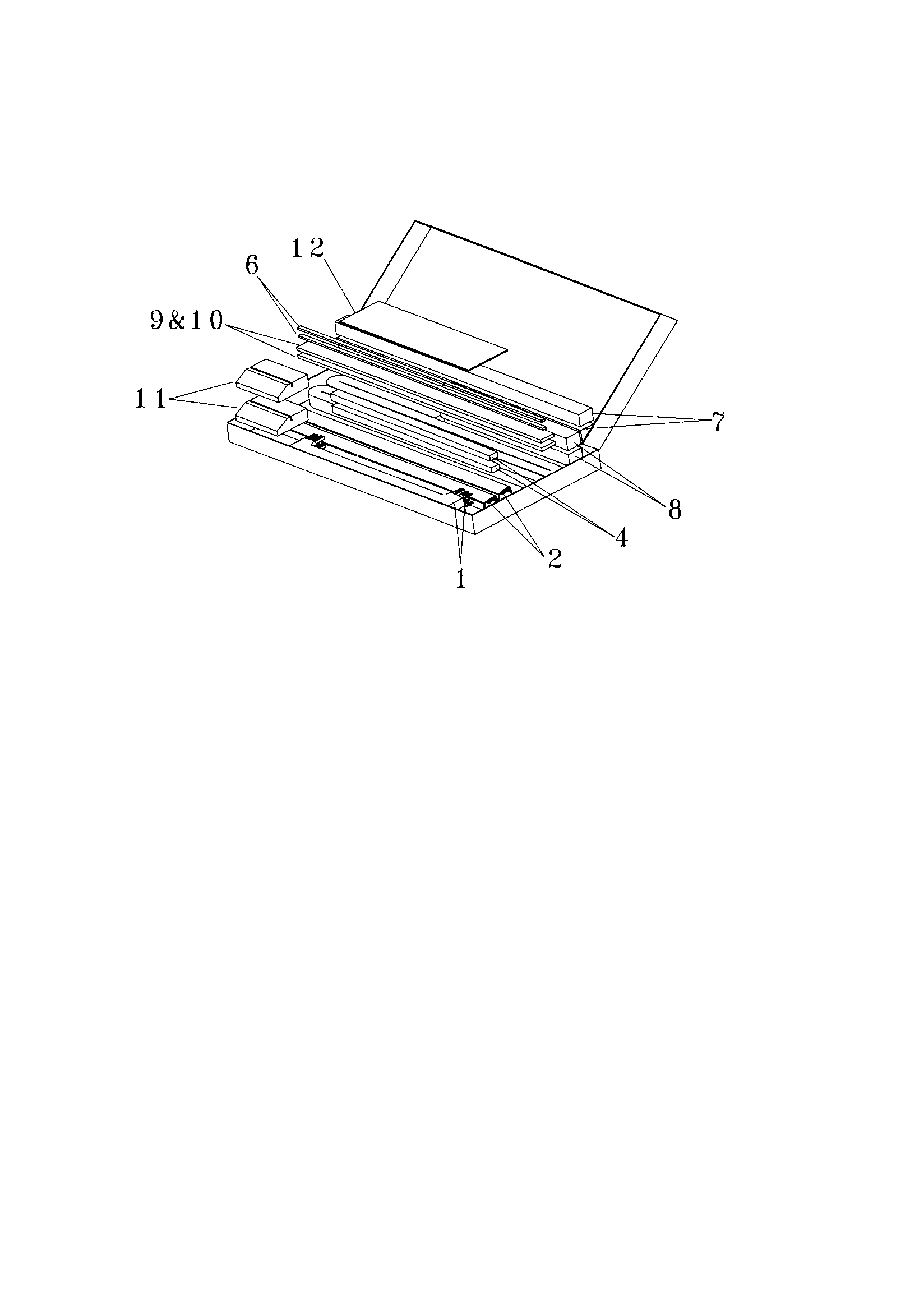

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Service Type Cord 5304409515
#17

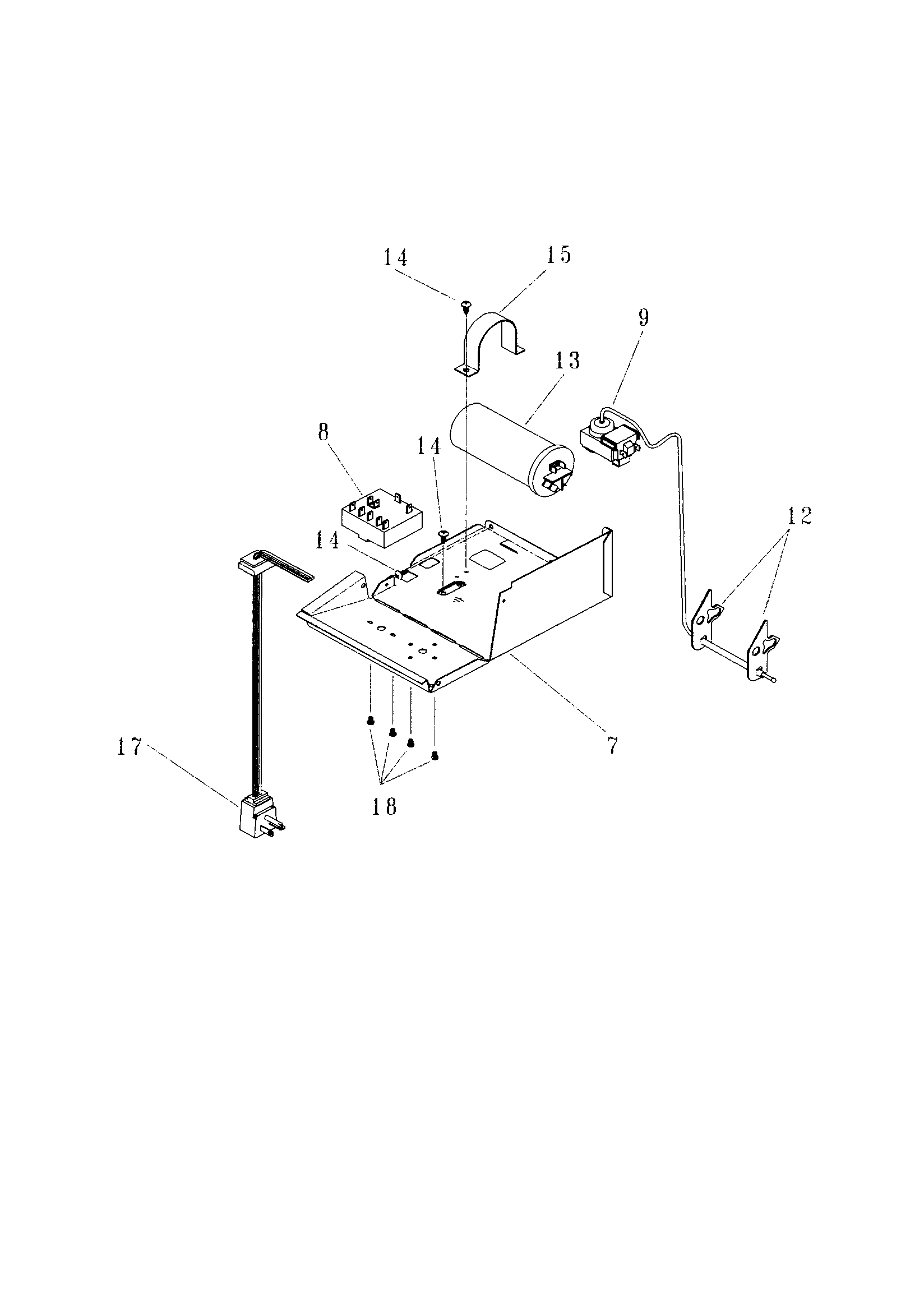

Control diagram

Service type cord

Part #5304409515

$19.18
In Stock
Screw 3202975
#2

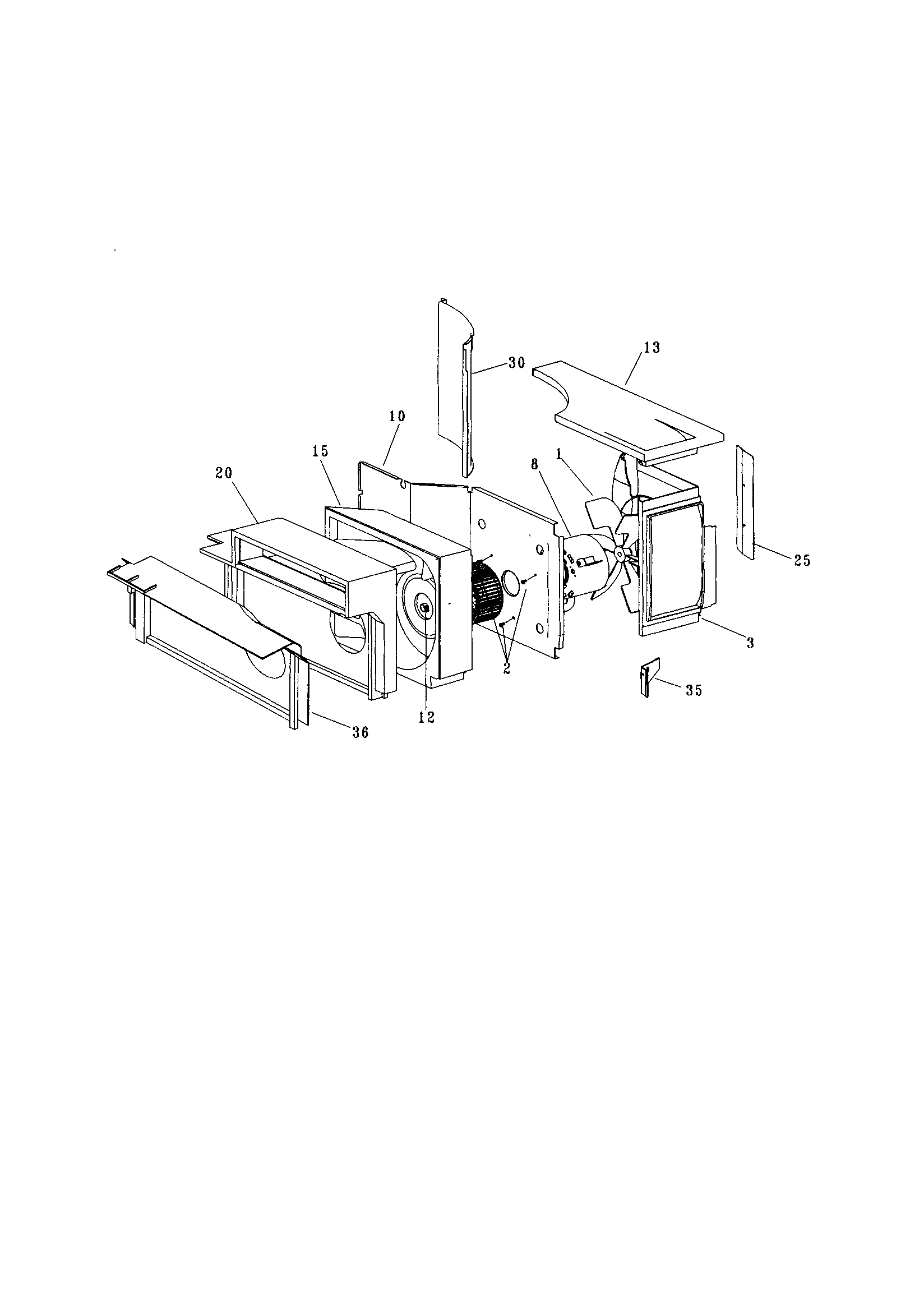

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
+evap Assy-1 309632301
#11

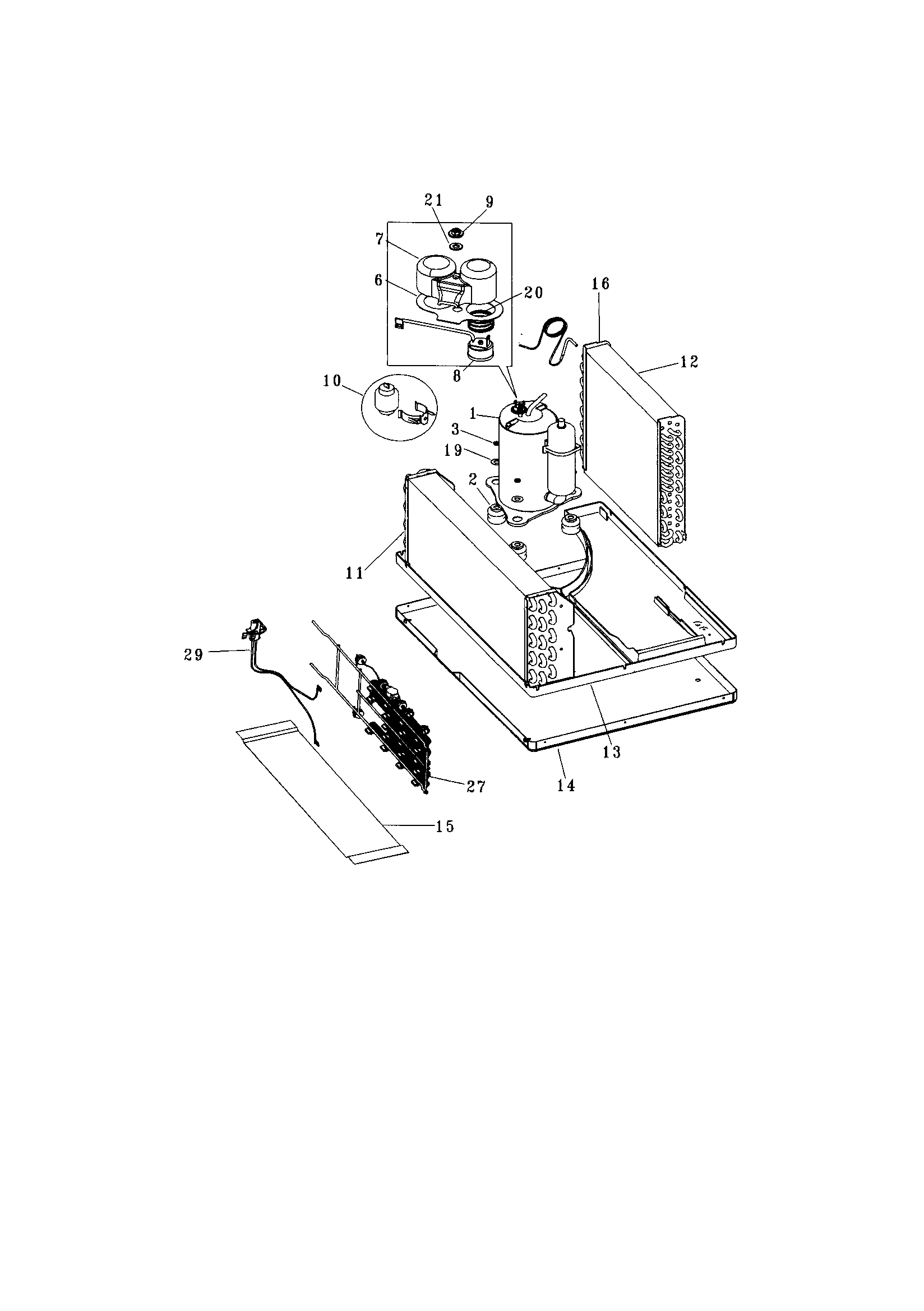

Compressor diagram

+evap assy-1

Part #309632301

The manufacturer no longer makes this part, and there's no substitute part

#fnt/ctrl Lb 309631804
#43

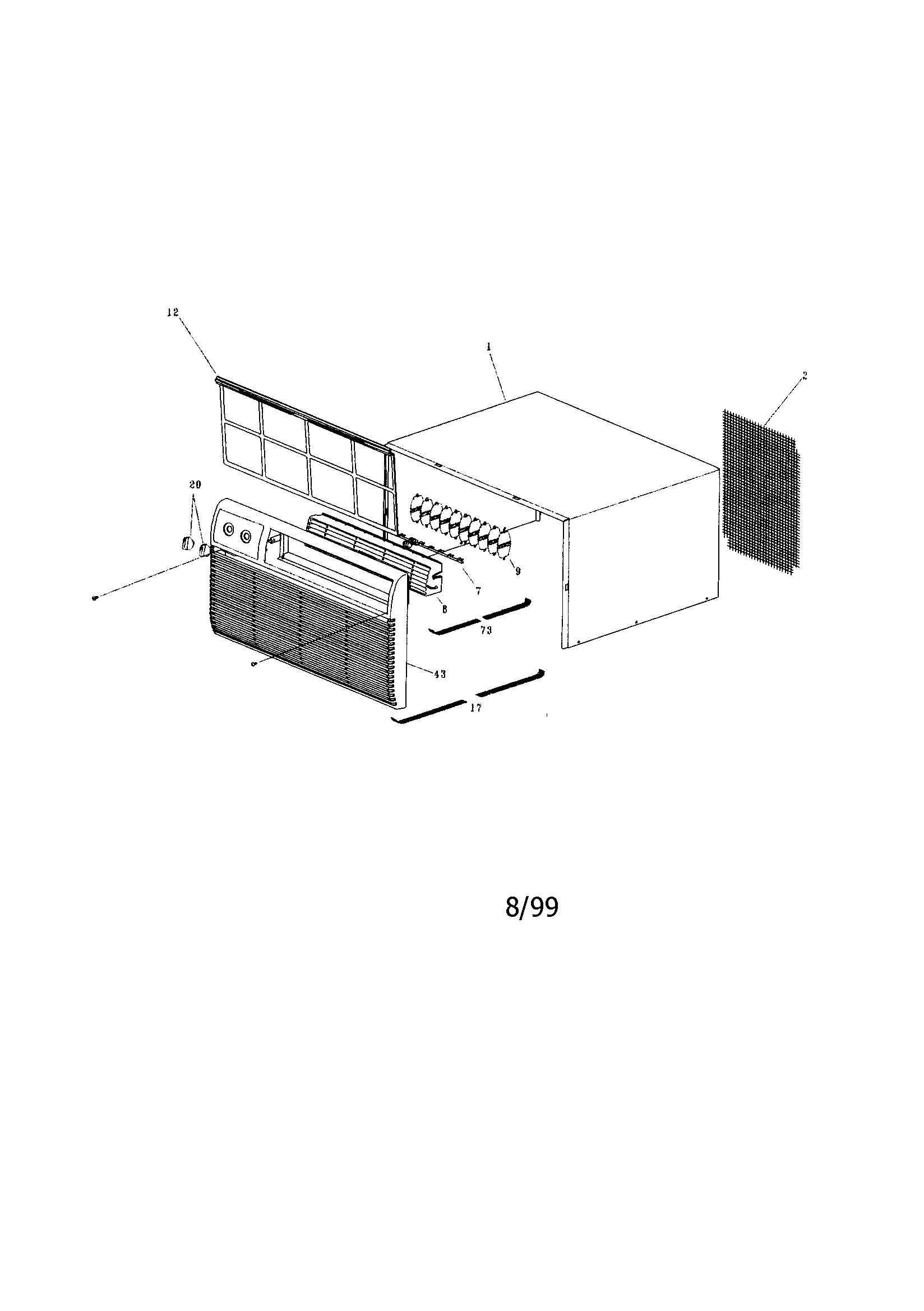

Cabinet front and wrapper diagram

#fnt/ctrl lb

Part #309631804

The manufacturer no longer makes this part, and there's no substitute part

Spacer 3200761
#35

Control diagram

Spacer

Part #3200761

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Compressor Grommet 5303283877
#2

Compressor diagram

Room air conditioner compressor grommet

Part #5303283877

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 5304409514
#8

Air handling diagram

Fan motor

Part #5304409514

The manufacturer no longer makes this part, and there's no substitute part

#bulkhead-18 309627401
#10

Air handling diagram

#bulkhead-18

Part #309627401

The manufacturer no longer makes this part, and there's no substitute part

Safety Scren 309636101
#2

Cabinet front and wrapper diagram

Safety scren

Part #309636101

The manufacturer no longer makes this part, and there's no substitute part

Tube 5308017120
#16

Compressor diagram

Tube

Part #5308017120

The manufacturer no longer makes this part, and there's no substitute part
