Gladiator
Rolling Tool Cart

Model # GAGB272DLR00 Official Gladiator modular gearbox

Here are the diagrams and repair parts for Official Gladiator GAGB272DLR00 modular gearbox, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Door Assy,lh W11540457
#7B

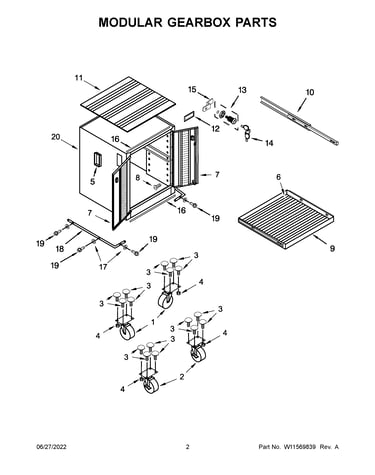

Modular gearbox parts diagram

Door assy,lh

Part #W11540457

$95.00
In Stock
Tray And Gui W11551769
#9

Modular gearbox parts diagram

Tray and gui

Part #W11551769

$109.76
In Stock
Magnet 8211280
#16

Modular gearbox parts diagram

Magnet

Part #8211280

$15.96
In Stock
Door Assy,lh W11540458
#7

Modular gearbox parts diagram

Door assy,lh

Part #W11540458

$95.00
In Stock
Bumper, Gun W11547095
#18

Modular gearbox parts diagram

Bumper, gun

Part #W11547095

$20.05
In Stock
Cam Door Loc W11522080
#15

Modular gearbox parts diagram

Cam door loc

Part #W11522080

$17.30
In Stock
Mat Top Modu W11540466
#11

Modular gearbox parts diagram

Mat top modu

Part #W11540466

$81.59 |
7% OFF Phone Price : $87.59
In Stock
Door Assy,rh W11540460
#7C

Modular gearbox parts diagram

Door assy,rh

Part #W11540460

$95.24
In Stock
Door Assy,rh W11540461
#7A

Modular gearbox parts diagram

Door assy,rh

Part #W11540461

$95.27
In Stock
Caster Rigid W11538386
#2

Modular gearbox parts diagram

Caster rigid

Part #W11538386

Replaced by #W11558423

?
Manufacturer substitution
This part replaces W11538386. Substitute parts can look different from the original.
$61.64
In Stock
