Model # MT1145SLB1 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MT1145SLB1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

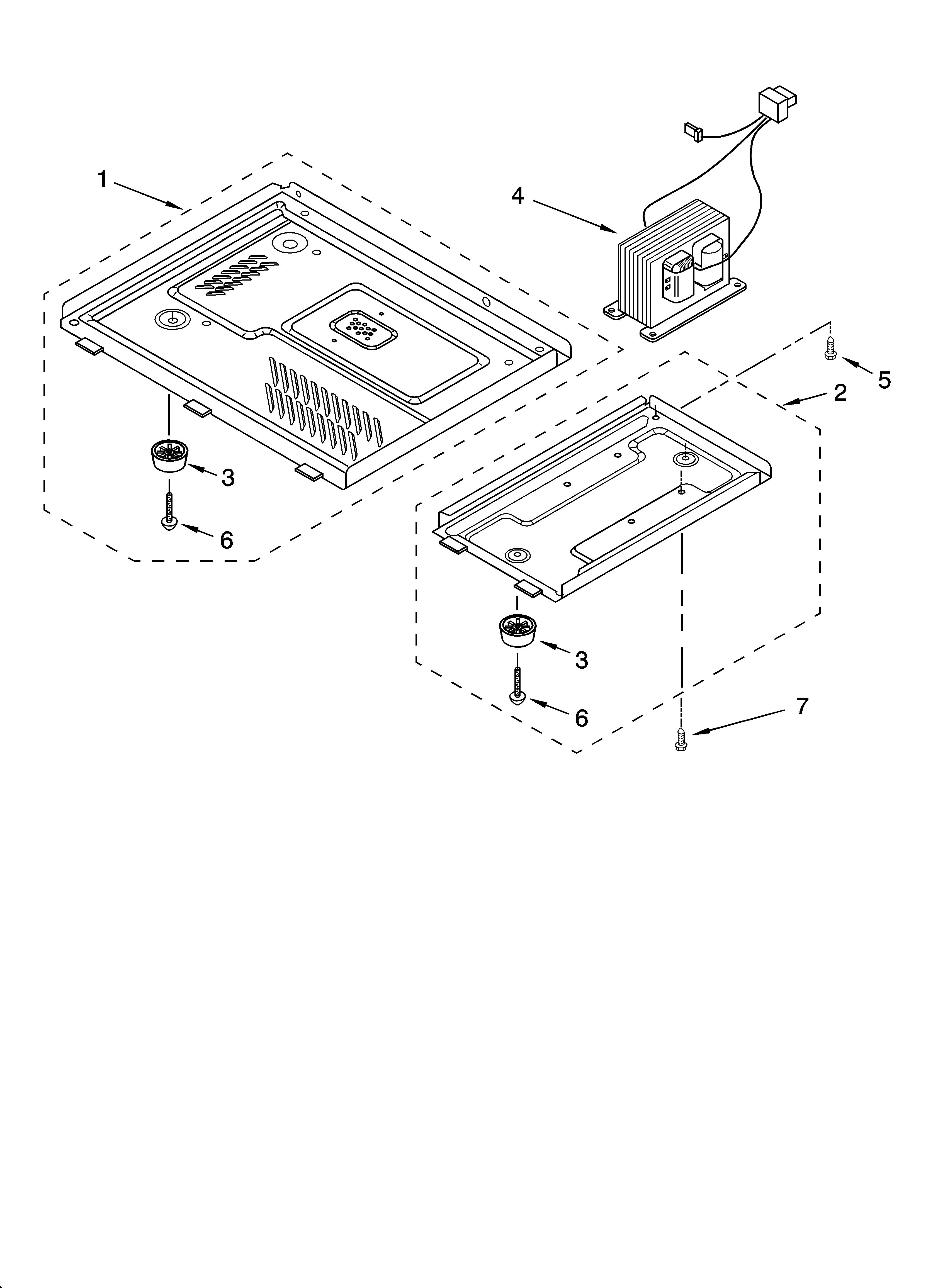

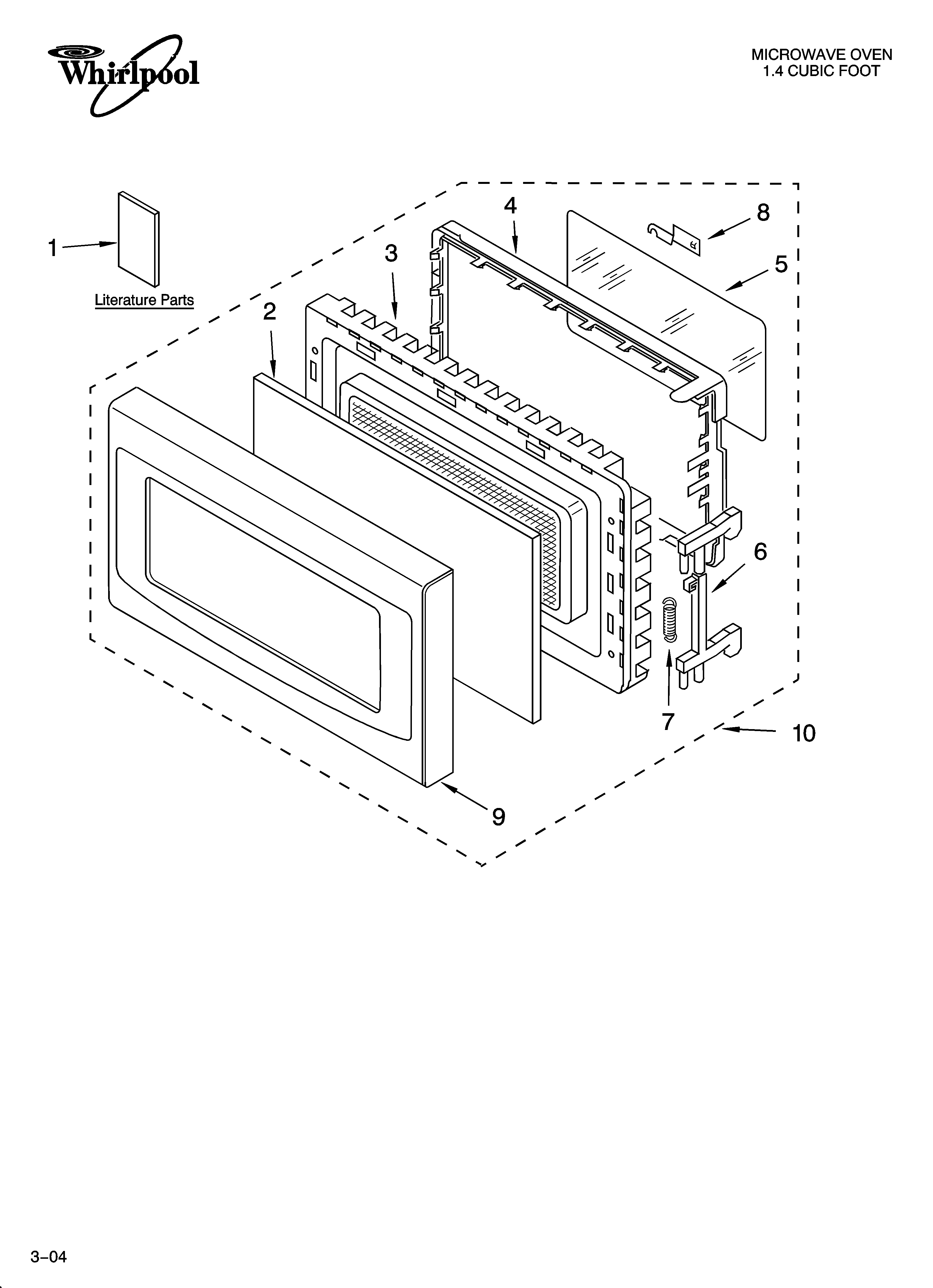

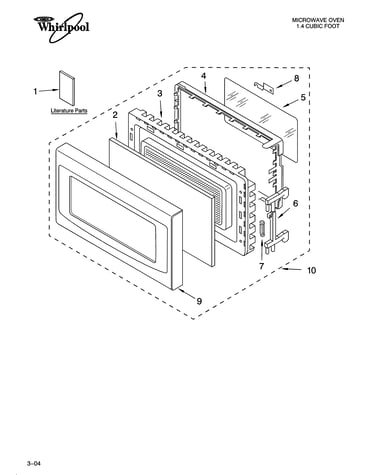

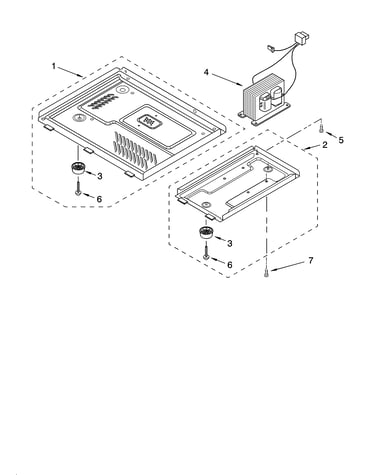

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Magnetron 8172000
#13

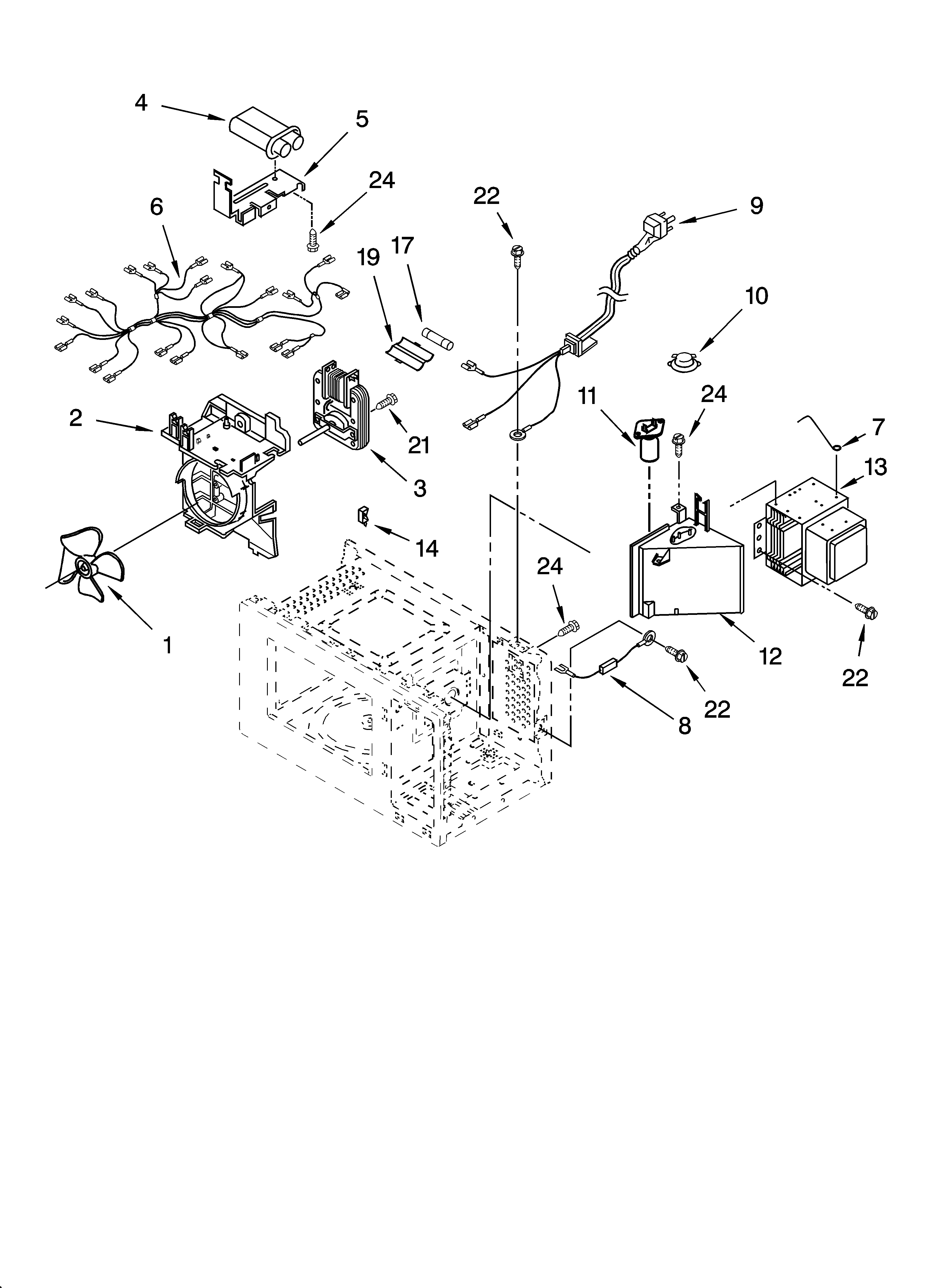

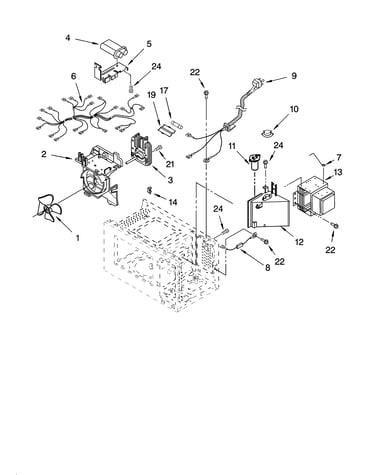

Oven interior parts diagram

Magnetron

Part #8172000

The manufacturer no longer makes this part, and there's no substitute part

Voltage Wire 8171879
#8

Oven interior parts diagram

Voltage wire

Part #8171879

Replaced by #WP8205489

?
Manufacturer substitution
This part replaces 8171879. Substitute parts can look different from the original.
$32.49 |
16% OFF Phone Price : $38.49
In Stock
Microwave High-voltage Capacitor 8184813
#4

Oven interior parts diagram

Microwave high-voltage capacitor

Part #8184813

Replaced by #WP8184813

?
Manufacturer substitution
This part replaces 8184813. Substitute parts can look different from the original.
$79.79 |
7% OFF Phone Price : $85.79
In Stock
Spring 4158178
#7

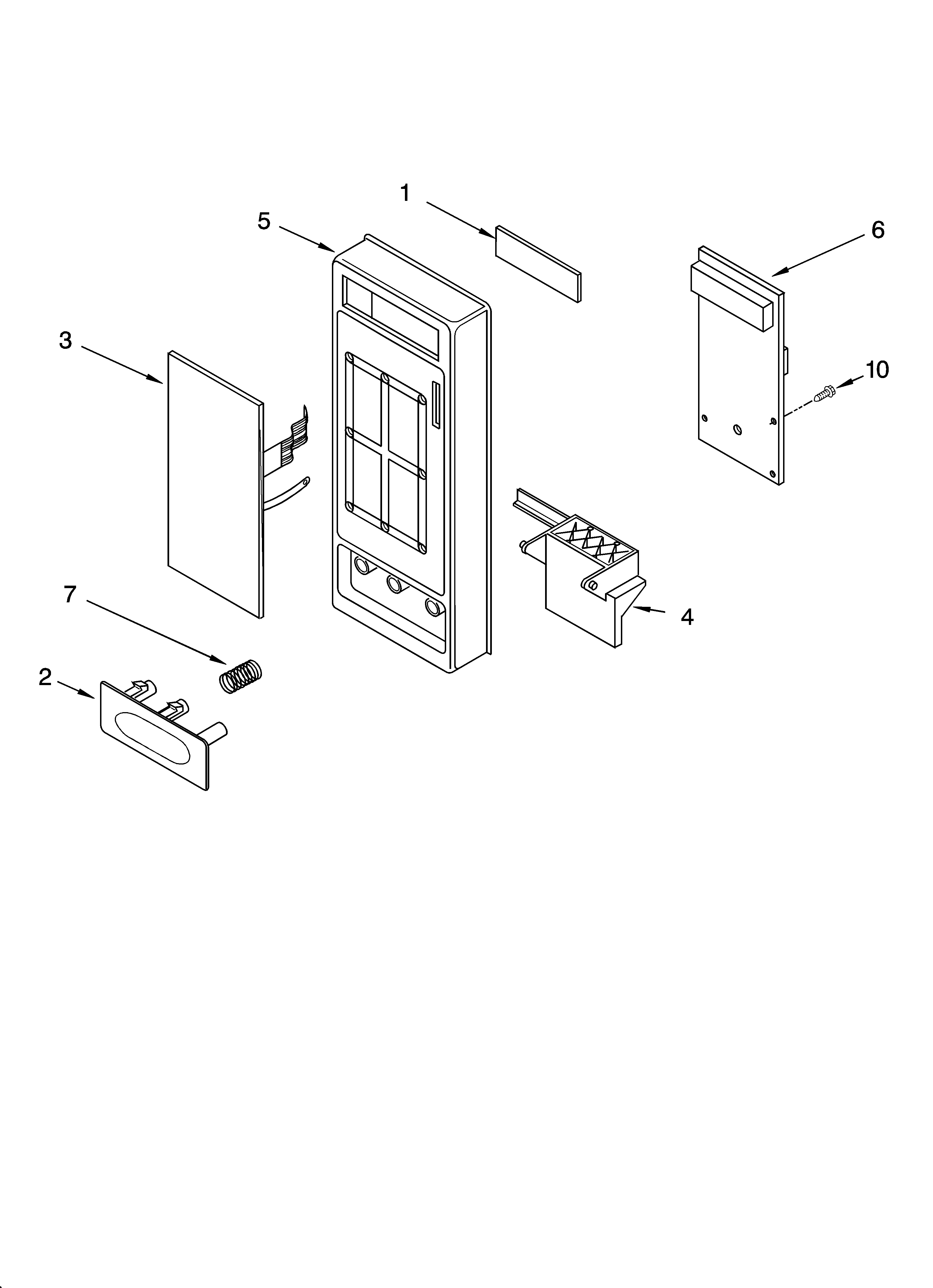

Control panel parts diagram

Spring

Part #4158178

Replaced by #WP4158178

?
Manufacturer substitution
This part replaces 4158178. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Mounting Bracket 8184812
#2

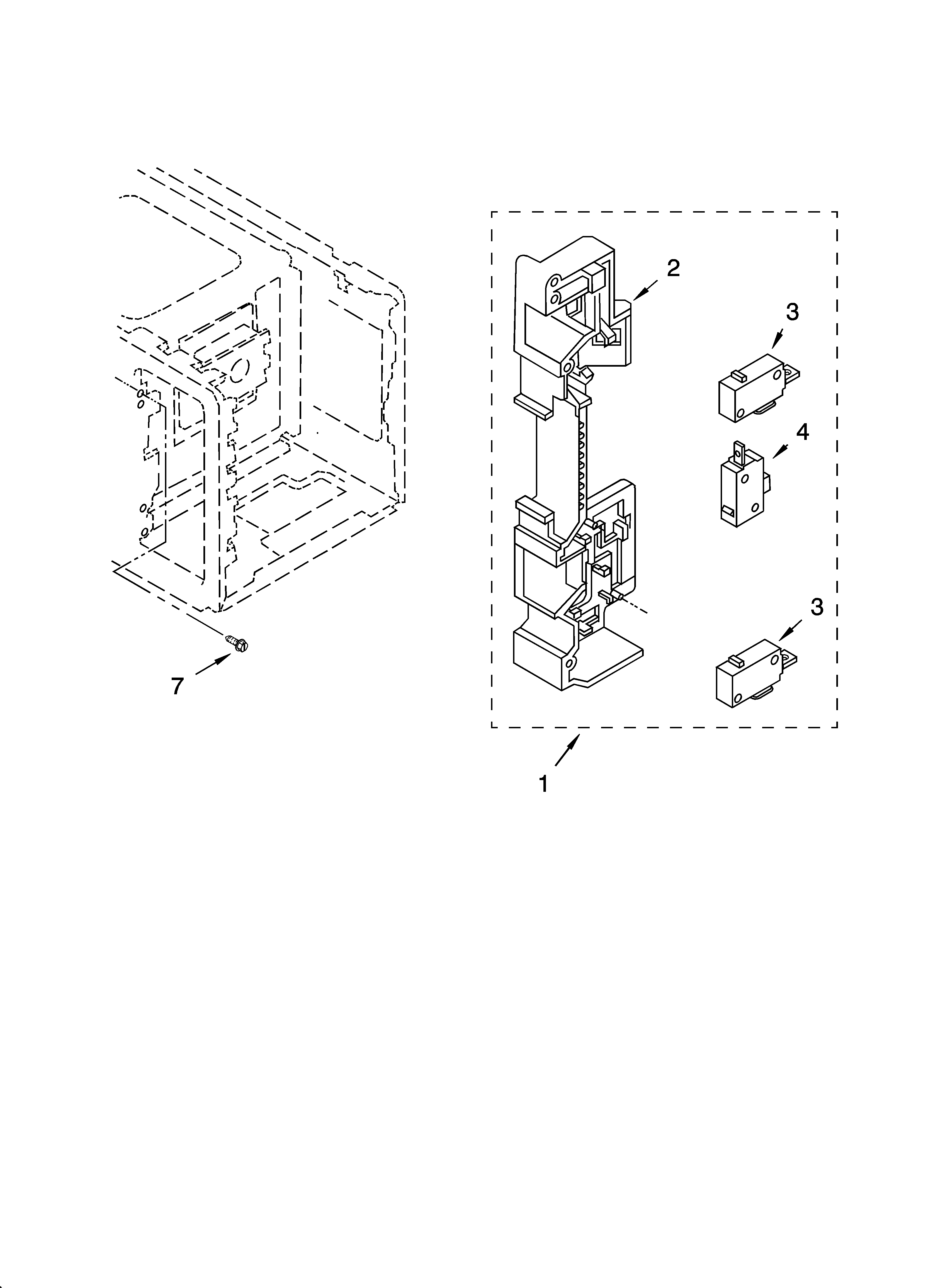

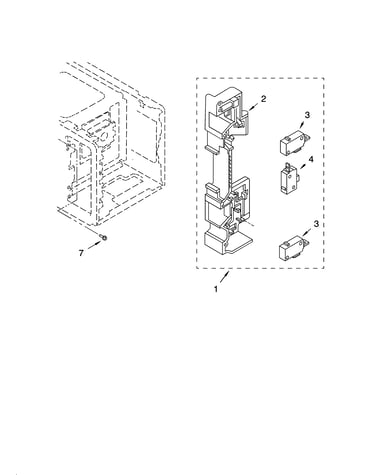

Latch board parts diagram

Mounting bracket

Part #8184812

Replaced by #WP8185271

?
Manufacturer substitution
This part replaces 8184812. Substitute parts can look different from the original.
$40.45 |
13% OFF Phone Price : $46.45
In Stock
Turntable Motor 8183504
#11

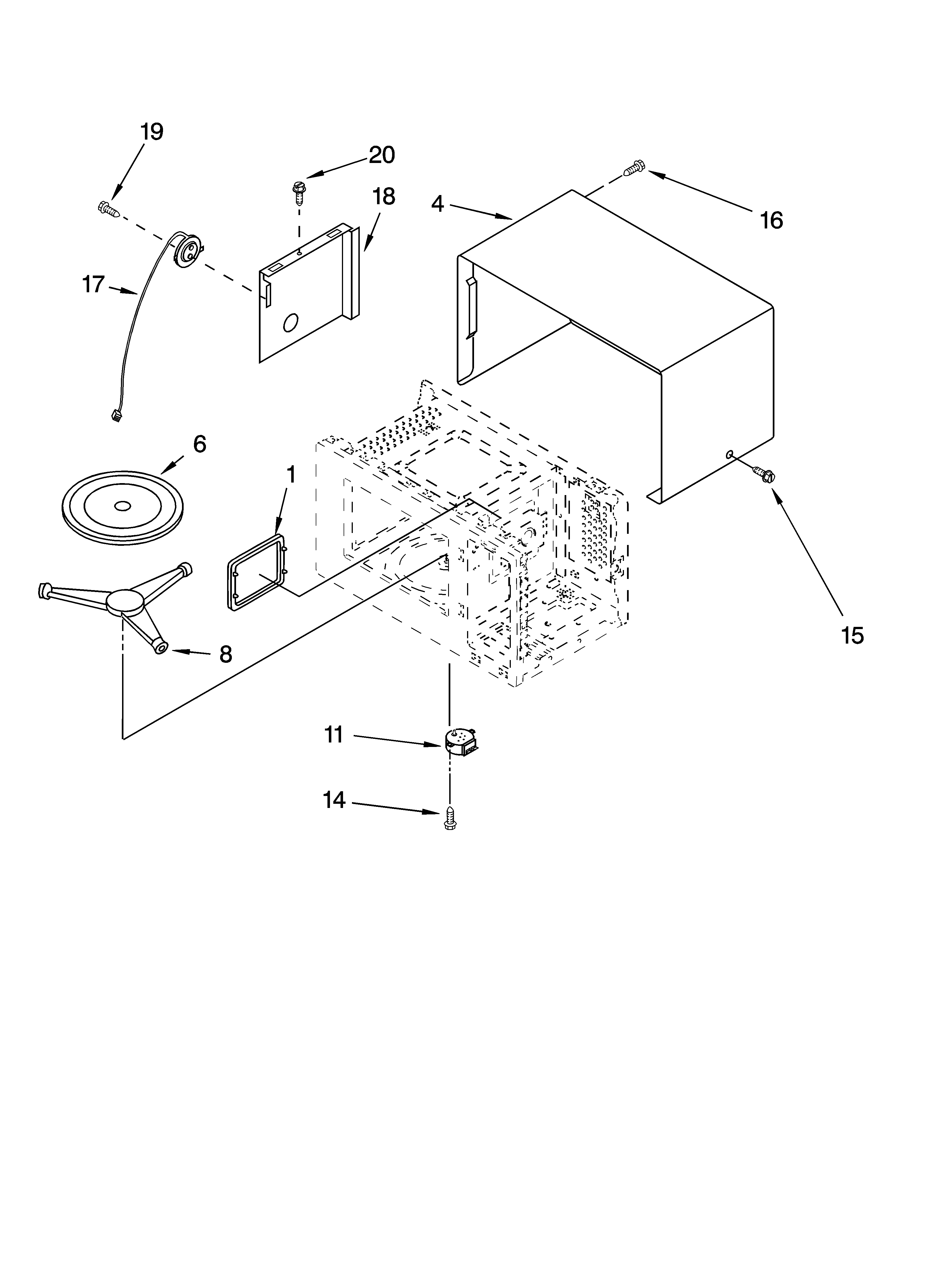

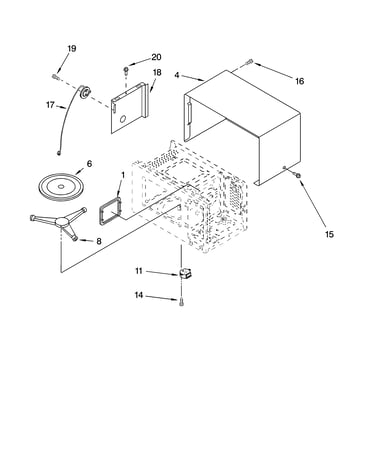

Oven cavity parts diagram

Turntable motor

Part #8183504

Replaced by #WPW10159107

?
Manufacturer substitution
This part replaces 8183504. Substitute parts can look different from the original.
$70.45 |
8% OFF Phone Price : $76.45
In Stock
Screw 4358192
Screw

Part #4358192

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4358192. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Cook Tray 4359780
#6

Oven cavity parts diagram

Cook tray

Part #4359780

Replaced by #WPW10267856

?
Manufacturer substitution
This part replaces 4359780. Substitute parts can look different from the original.
$43.49 |
12% OFF Phone Price : $49.49
In Stock
Screw 8171862
#16

Oven cavity parts diagram

Screw

Part #8171862

Replaced by #8169474

?
Manufacturer substitution
This part replaces 8171862. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Switch 4158941
#4

Latch board parts diagram

Switch

Part #4158941

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158941. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
