Craftsman
Lawn & Garden Engine

Model # 143625092 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143625092 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Starter Rope 590386
#9

Rewind starter diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 27110
#21

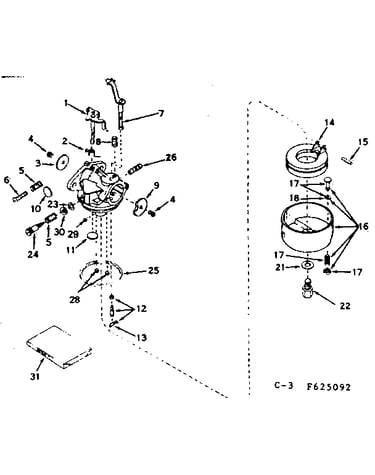

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

/fuel Bowl 631025
#16

Carburetor diagram

/fuel bowl

Part #631025

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#2

Carburetor diagram

Spring retainer

Part #630731

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27930
#91

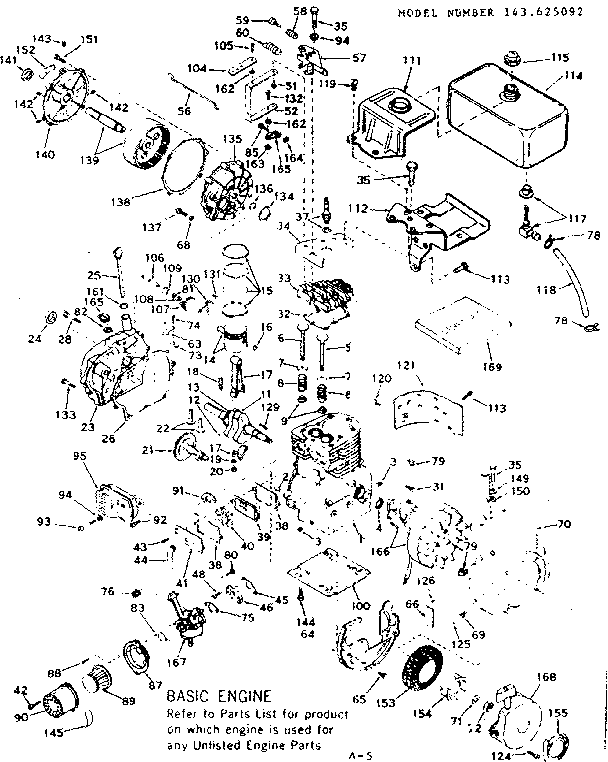

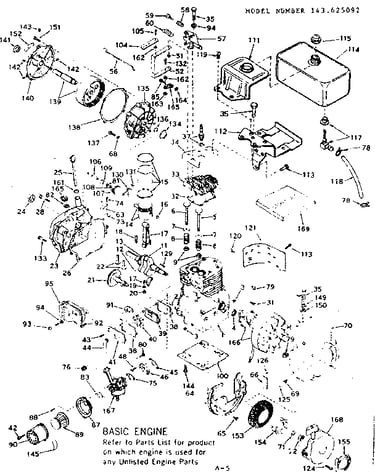

Basic engine diagram

Gasket

Part #27930

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#88

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Screw 30564
#151

Basic engine diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Recoil Starter Pawl Spring 590412
#5

Rewind starter diagram

Lawn & garden equipment engine recoil starter pawl spring

Part #590412

$9.51
In Stock
Washer 630739
#30

Carburetor diagram

Washer

Part #630739

The manufacturer no longer makes this part, and there's no substitute part

Washer 30590A
#81

Basic engine diagram

Washer

Part #30590A

The manufacturer no longer makes this part, and there's no substitute part
