Sony
Speaker

Model # SS-CT500 Official Sony audio speaker

Here are the diagrams and repair parts for Official Sony SS-CT500 audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

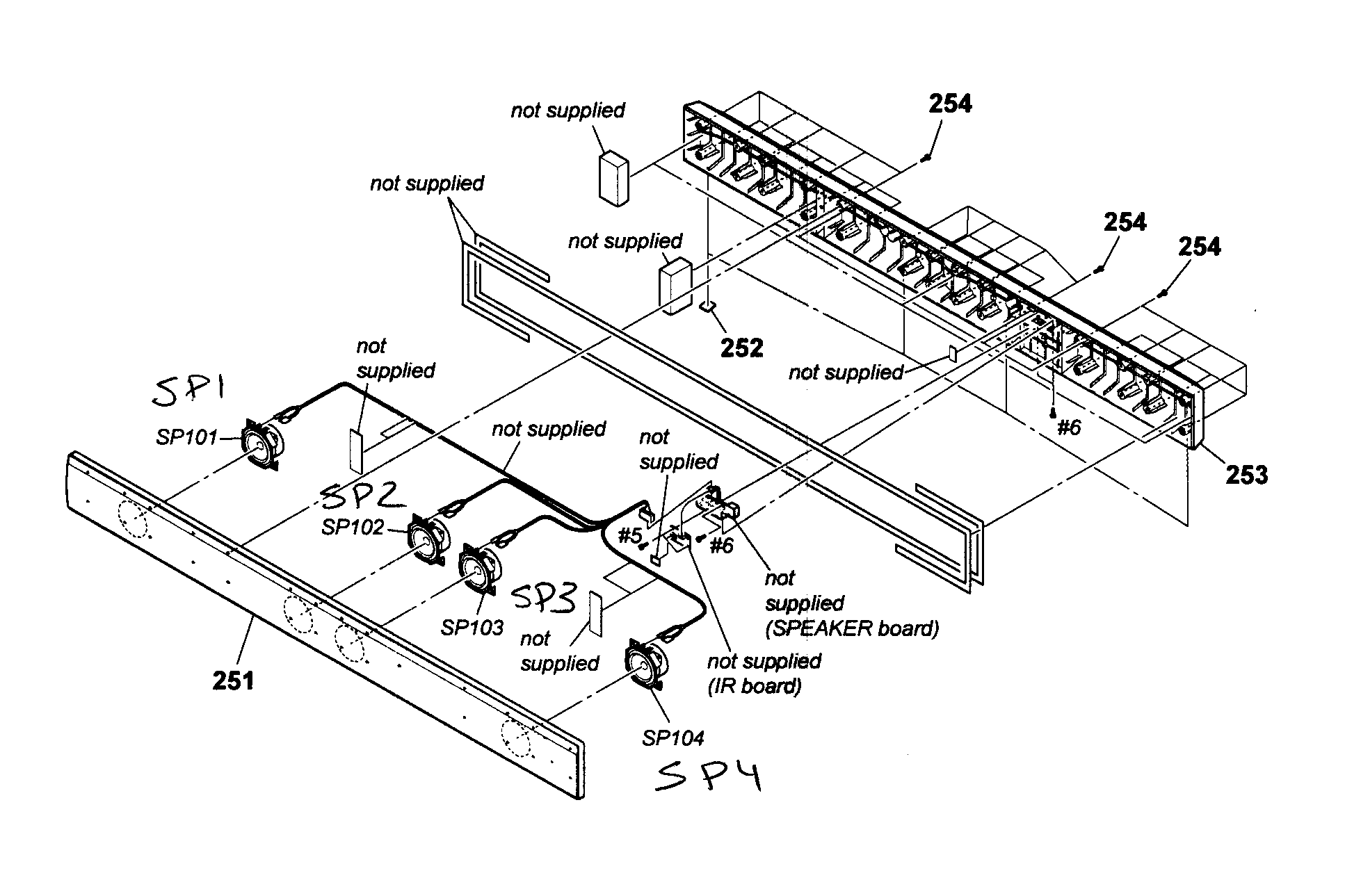

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Loudspeaker 185819511
Loudspeaker

Part #185819511

The manufacturer no longer makes this part, and there's no substitute part

Cabinet,sp A1665109A
#253

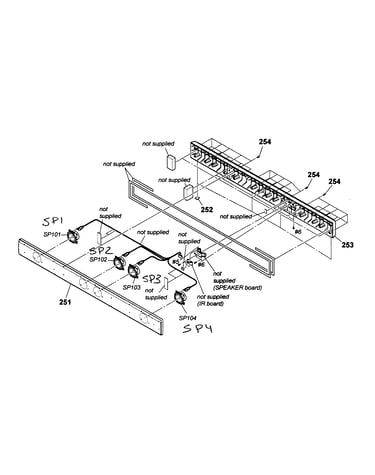

Speaker diagram

Cabinet,sp

Part #A1665109A

The manufacturer no longer makes this part, and there's no substitute part

Foot 413171001
#252

Speaker diagram

Foot

Part #413171001

The manufacturer no longer makes this part, and there's no substitute part

Pcb,term 178049121
#NI

Speaker diagram

Pcb,term

Part #178049121

The manufacturer no longer makes this part, and there's no substitute part

Pcb,term 178049041
#NI

Speaker diagram

Pcb,term

Part #178049041

The manufacturer no longer makes this part, and there's no substitute part

Loudspeaker 185823111
Loudspeaker

Part #185823111

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 660050201
#NI

Speaker diagram

Integrated circuit

Part #660050201

The manufacturer no longer makes this part, and there's no substitute part

Front Panel X23452371
#251

Speaker diagram

Front panel

Part #X23452371

The manufacturer no longer makes this part, and there's no substitute part
