Model # 22LV610U Official Toshiba lcd television with dvd

Here are the diagrams and repair parts for Official Toshiba 22LV610U lcd television with dvd, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Ic-mem Dat AE016893
#NI

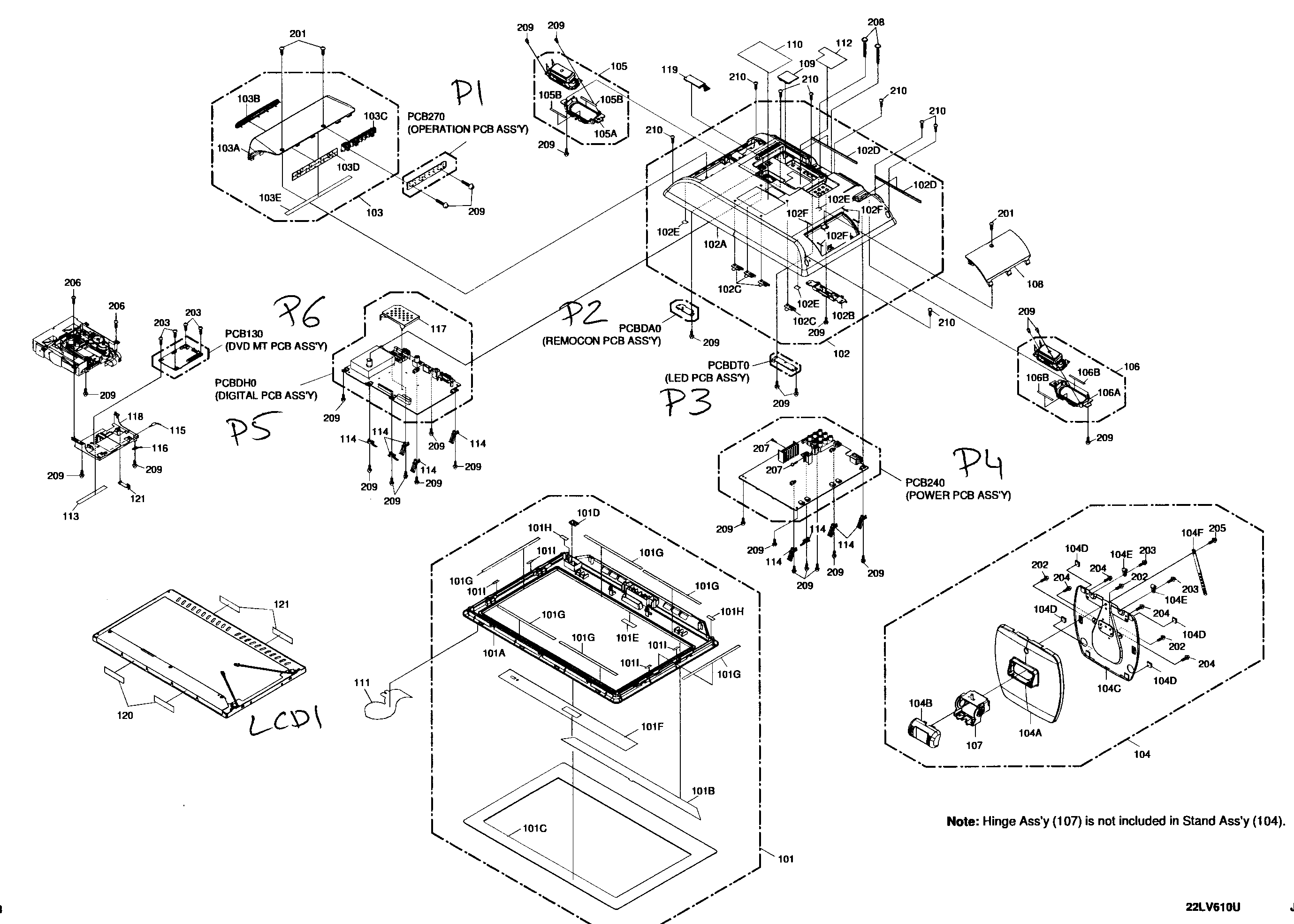

Cabinet parts diagram

Ic-mem dat

Part #AE016893

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly AE016816
#107

Cabinet parts diagram

Hinge assembly

Part #AE016816

The manufacturer no longer makes this part, and there's no substitute part

Capacitor AE003857
#NI

Cabinet parts diagram

Capacitor

Part #AE003857

The manufacturer no longer makes this part, and there's no substitute part

Ic-mem Dat AE016836
#NI

Cabinet parts diagram

Ic-mem dat

Part #AE016836

The manufacturer no longer makes this part, and there's no substitute part

Insulator AE008501
#606

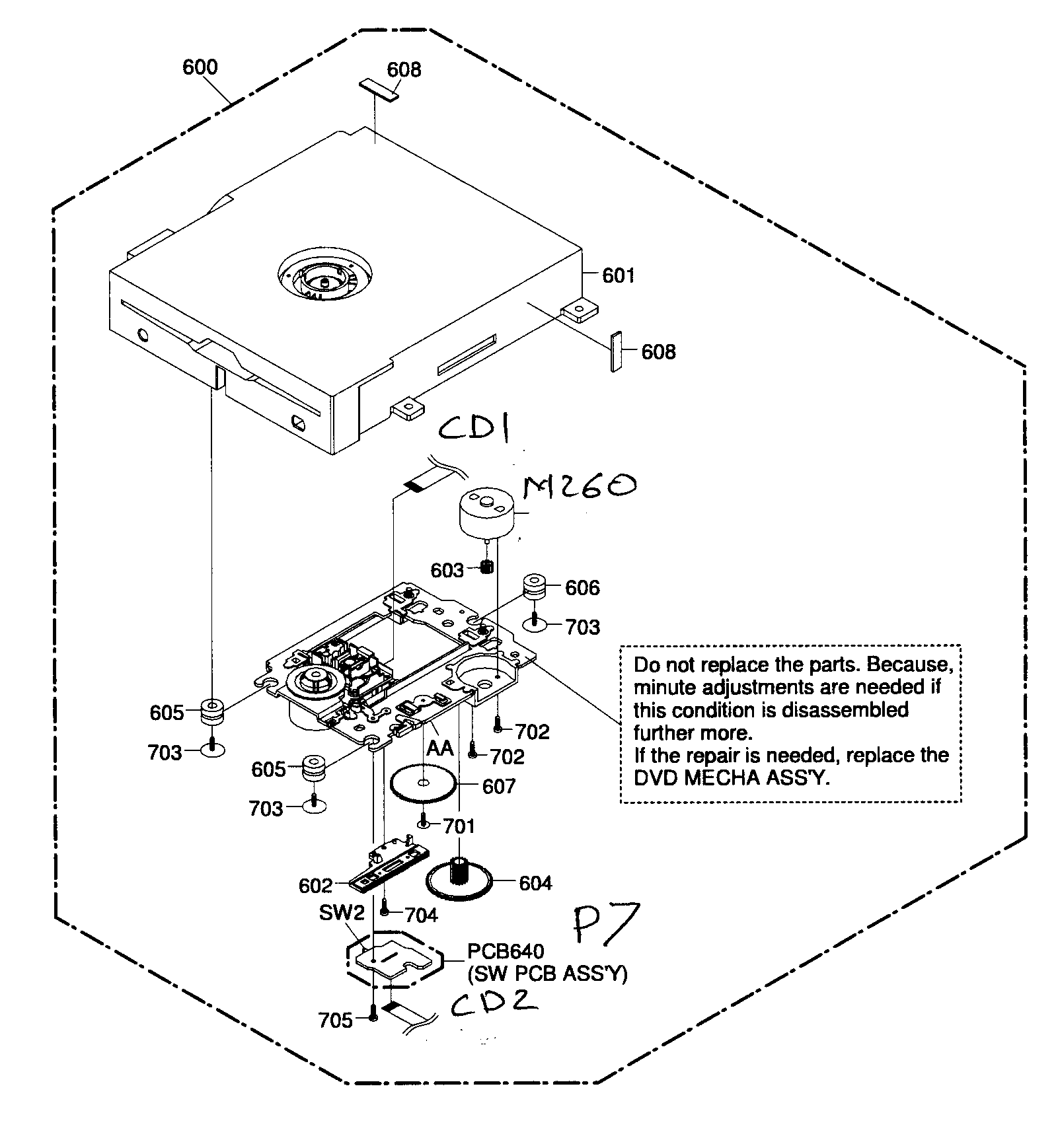

Deck assy diagram

Insulator

Part #AE008501

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Diode Scho AE011472
#NI

Cabinet parts diagram

Toshiba diode scho

Part #AE011472

The manufacturer no longer makes this part, and there's no substitute part

Transistor AE009621
#NI

Cabinet parts diagram

Transistor

Part #AE009621

The manufacturer no longer makes this part, and there's no substitute part

Capacitor AE009920
#NI

Cabinet parts diagram

Capacitor

Part #AE009920

The manufacturer no longer makes this part, and there's no substitute part

Ic-chrg Po AE009500
#NI

Cabinet parts diagram

Ic-chrg po

Part #AE009500

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Sprngearth AE017022
#115

Cabinet parts diagram

Toshiba sprngearth

Part #AE017022

The manufacturer no longer makes this part, and there's no substitute part
