Model # KAC084P7A3 Official Kelvinator room air conditioner - 5995241196

Here are the diagrams and repair parts for Official Kelvinator KAC084P7A3 room air conditioner - 5995241196, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Bracket Screw 3015312
#3

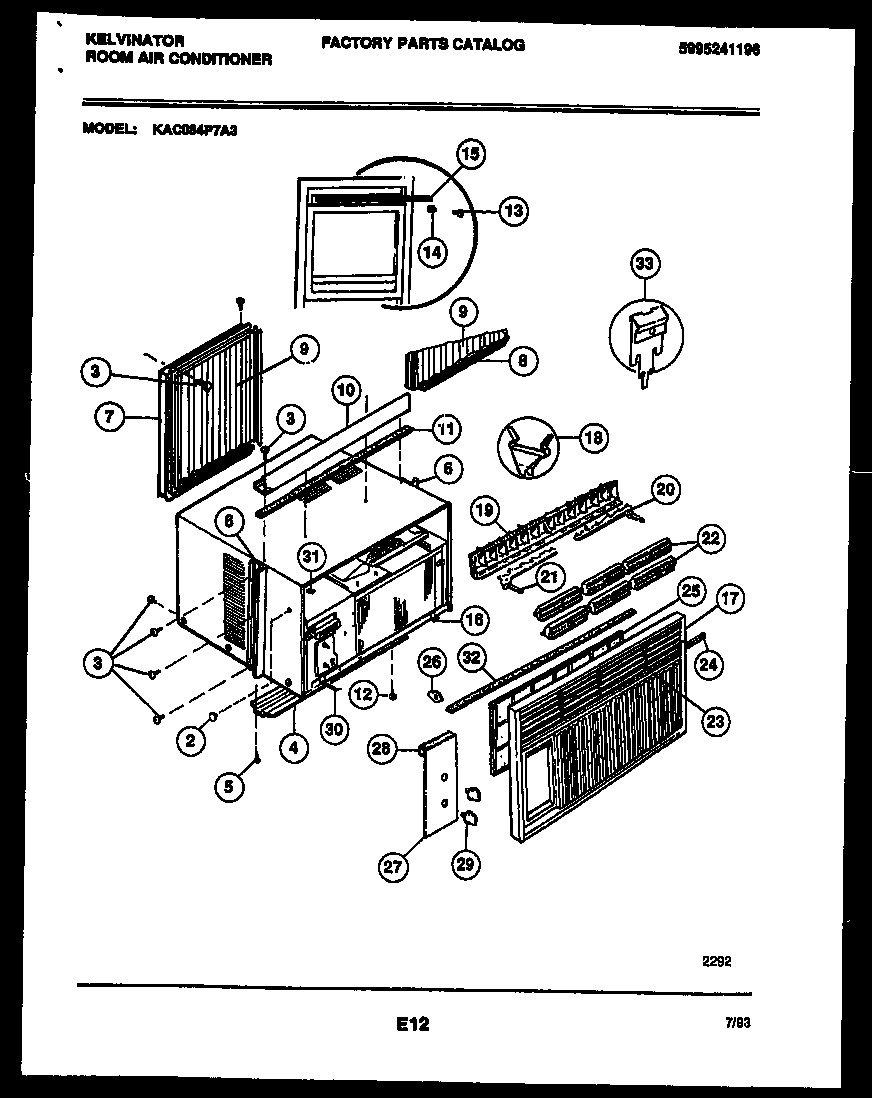

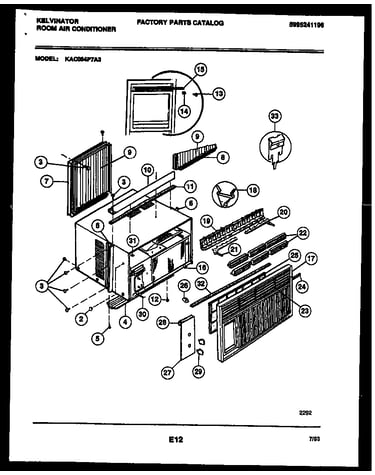

Cabinet parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#16

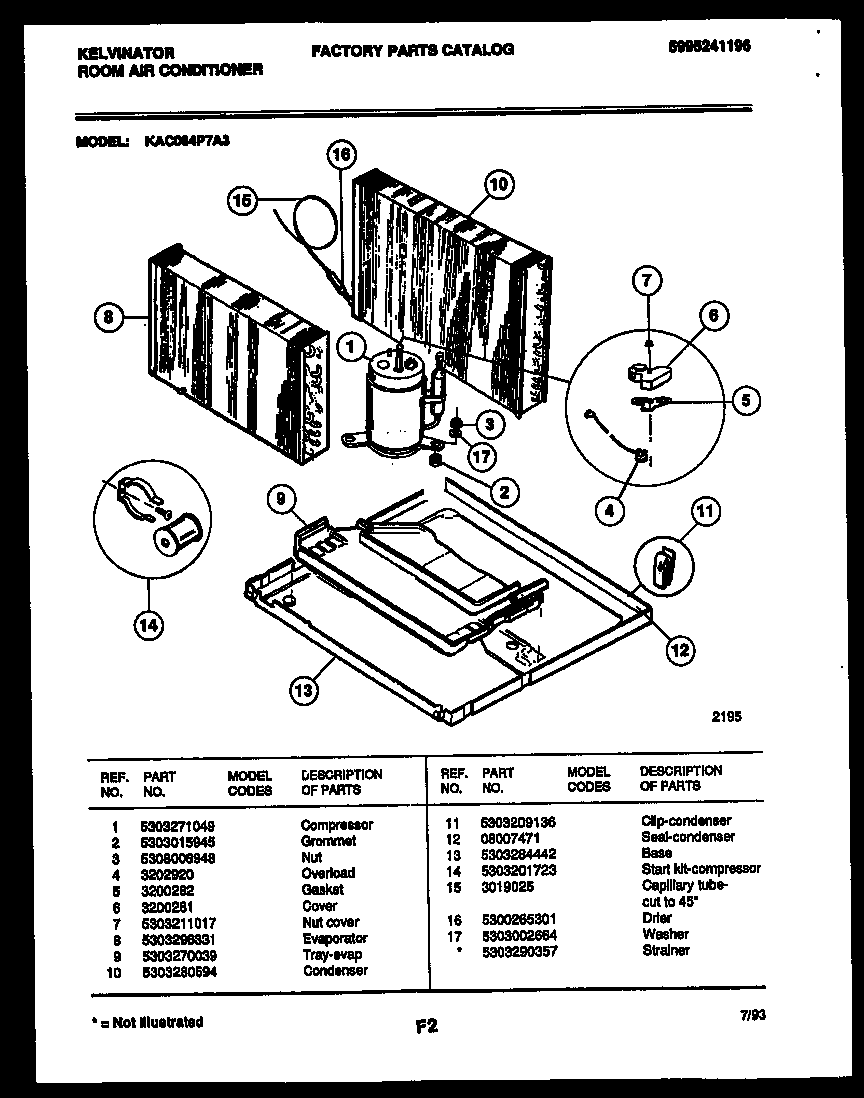

System parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Gibson Link 5303293759
#21

Cabinet parts diagram

Gibson link

Part #5303293759

$8.99
In Stock
Kelvinator Louver 5303300112
#22

Cabinet parts diagram

Kelvinator louver

Part #5303300112

$9.49
In Stock
Screw 3202975
#13

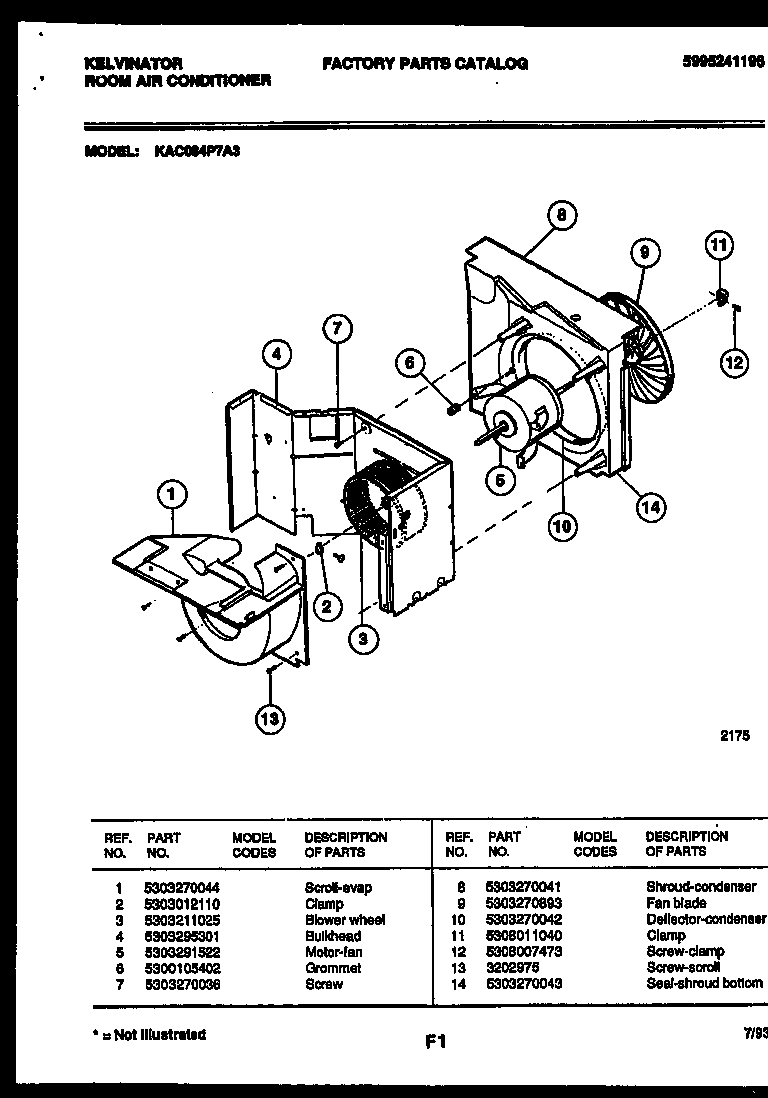

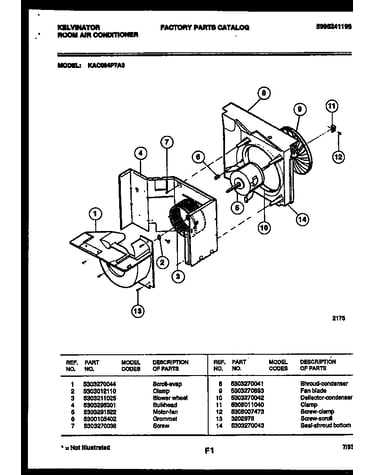

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Screw 5308007473
#12

Air handling parts diagram

Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
$13.26
In Stock
Gasket 3002603
#15

Cabinet parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Seal 3017398
#32

Cabinet parts diagram

Seal

Part #3017398

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 5303296331
#8

System parts diagram

Evaporator

Part #5303296331

The manufacturer no longer makes this part, and there's no substitute part

Base 5303284442
#13

System parts diagram

Base

Part #5303284442

The manufacturer no longer makes this part, and there's no substitute part
