Model # PD-1930 Official Ryobi impact drill

Here are the diagrams and repair parts for Official Ryobi PD-1930 impact drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Retaining Ring E-5 9500500
#60

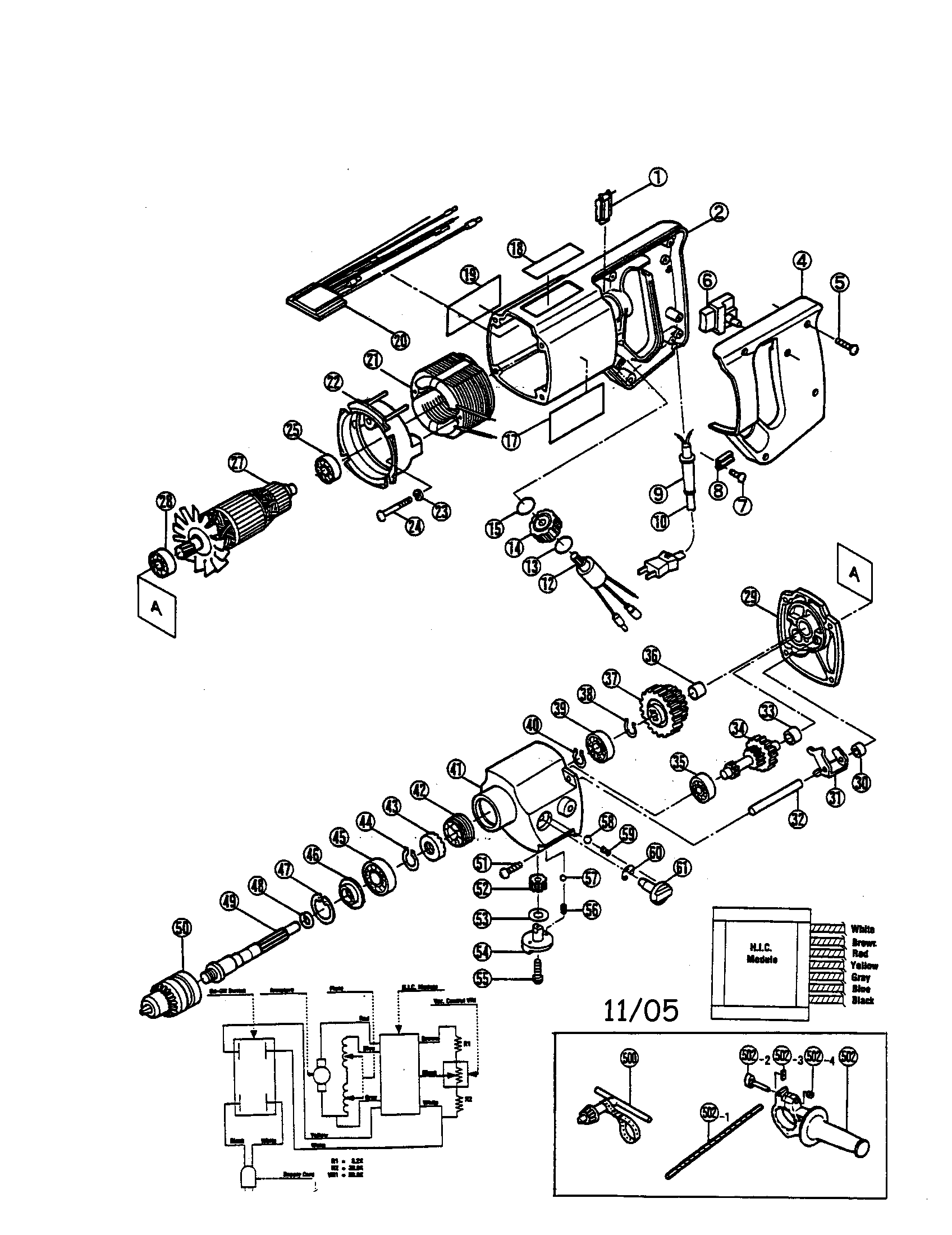

Impact drill diagram

Retaining ring e-5

Part #9500500

The manufacturer no longer makes this part, and there's no substitute part

Change Button 6830740
#54

Impact drill diagram

Change button

Part #6830740

The manufacturer no longer makes this part, and there's no substitute part

Clutch (f) 6190079
#42

Impact drill diagram

Clutch (f)

Part #6190079

The manufacturer no longer makes this part, and there's no substitute part

Washer, 2-pack 6900296
#53

Impact drill diagram

Washer, 2-pack

Part #6900296

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Cover 6530396

#NI03

All parts diagram

Sleeve cover

Part #6530396

The manufacturer no longer makes this part, and there's no substitute part

Switch 6550225
#6

Impact drill diagram

Switch

Part #6550225

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060540
#51

Impact drill diagram

Screw

Part #9060540

The manufacturer no longer makes this part, and there's no substitute part

Clutch (m) 6190080
#43

Impact drill diagram

Clutch (m)

Part #6190080

The manufacturer no longer makes this part, and there's no substitute part

Fan Casing 6490190
#22

Impact drill diagram

Fan casing

Part #6490190

The manufacturer no longer makes this part, and there's no substitute part

O Ring P-18 De1310r 9760018
O ring p-18 de1310r

Part #9760018

The manufacturer no longer makes this part, and there's no substitute part
