Amana
Countertop Microwave

Model # RS458P/P7769508M Official Amana microwave

Here are the diagrams and repair parts for Official Amana RS458P-P7769508M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

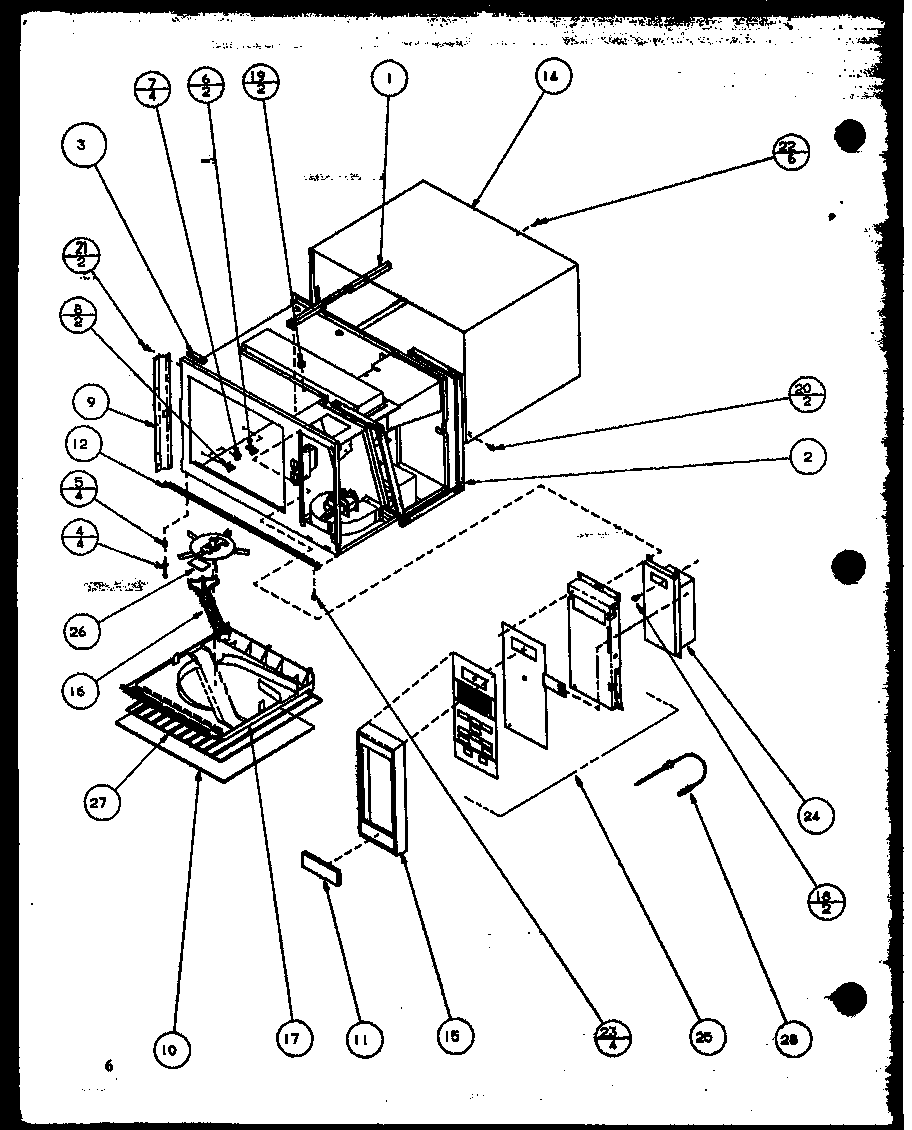

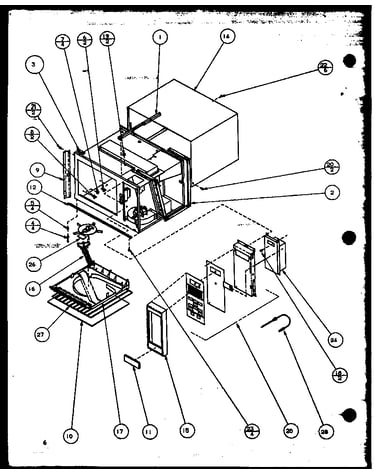

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Lamp A0282803
#1

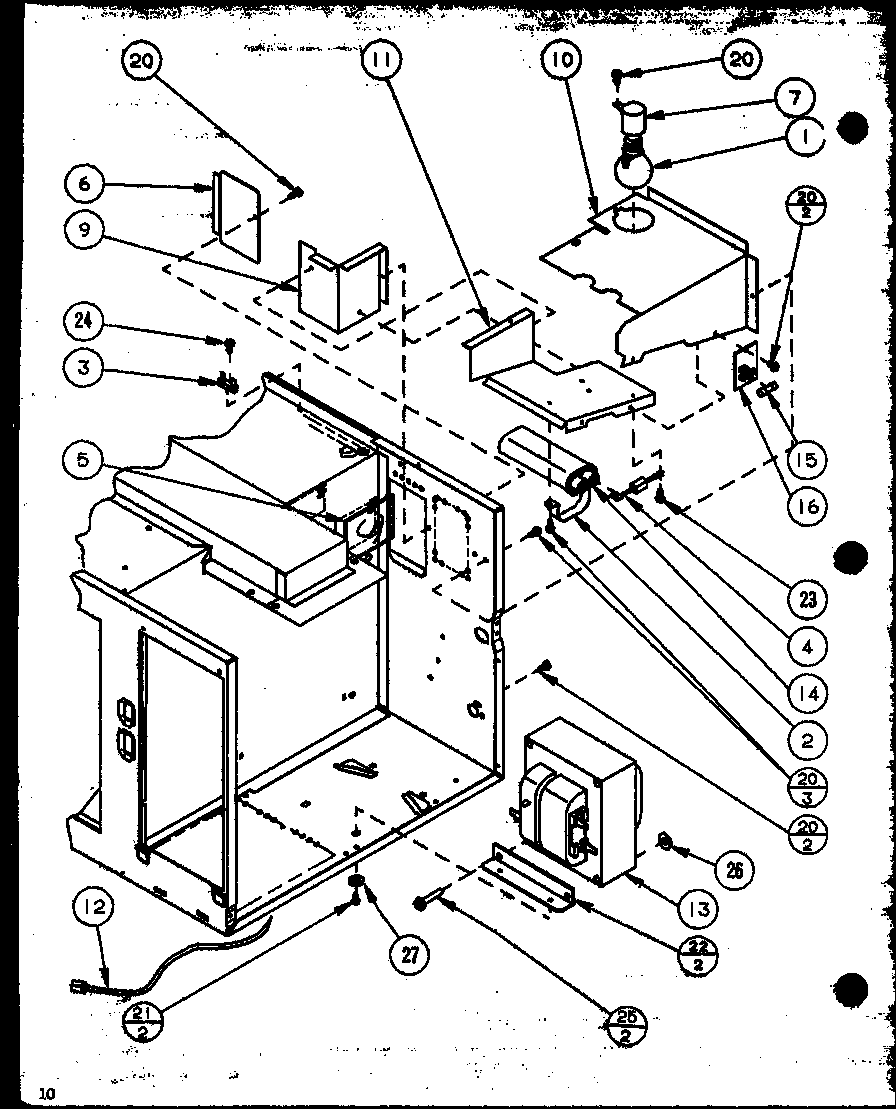

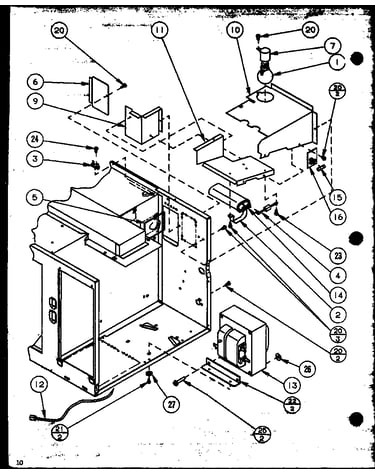

Transformer/capacitor diagram

Lamp

Part #A0282803

Replaced by #40A15

?
Manufacturer substitution
This part replaces A0282803. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw M0216729
#21

Transformer/capacitor diagram

Screw

Part #M0216729

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces M0216729. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Capacitor D8547909
#14A

Transformer/capacitor diagram

Capacitor

Part #D8547909

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces D8547909. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Air Duct D7772003
#10

Transformer/capacitor diagram

Air duct

Part #D7772003

Replaced by #D7772007

?
Manufacturer substitution
This part replaces D7772003. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Torx Screw M0234016
Torx screw

Part #M0234016

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0234016. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Capacitor D8547907
#14B

Transformer/capacitor diagram

Capacitor

Part #D8547907

Replaced by #D8547907

?
Manufacturer substitution
This part replaces D8547907. Substitute parts can look different from the original.
$31.49
In Stock
Screw M0225818
#22

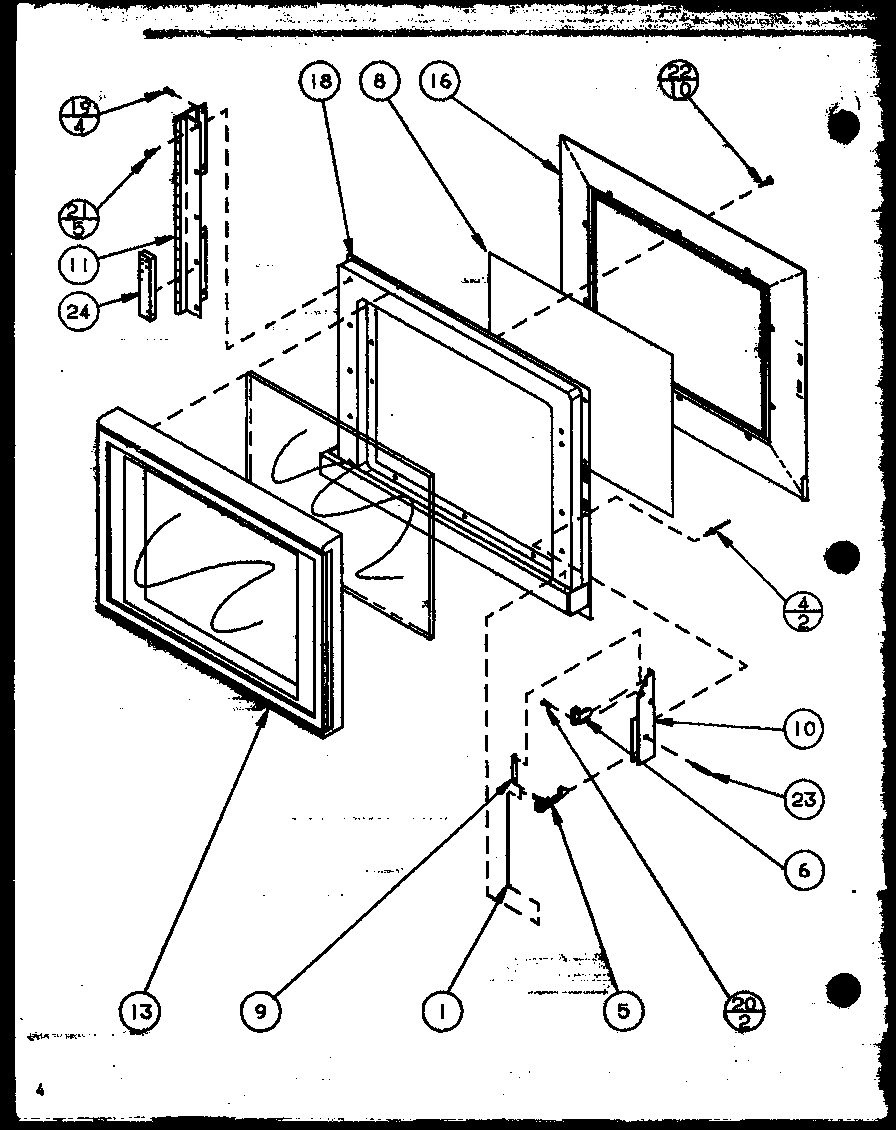

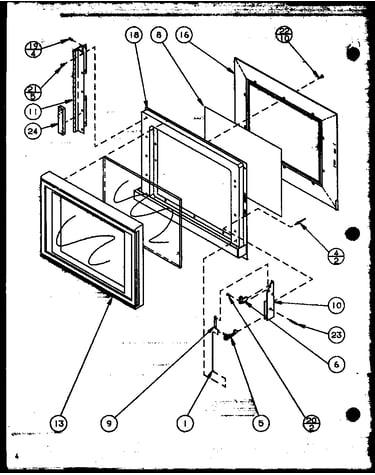

Door diagram

Screw

Part #M0225818

Replaced by #489392

?
Manufacturer substitution
This part replaces M0225818. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Door Guide B8370401
#6

Door diagram

Door guide

Part #B8370401

Replaced by #B8370401

?
Manufacturer substitution
This part replaces B8370401. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0234422
Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Washer M0270536
#26

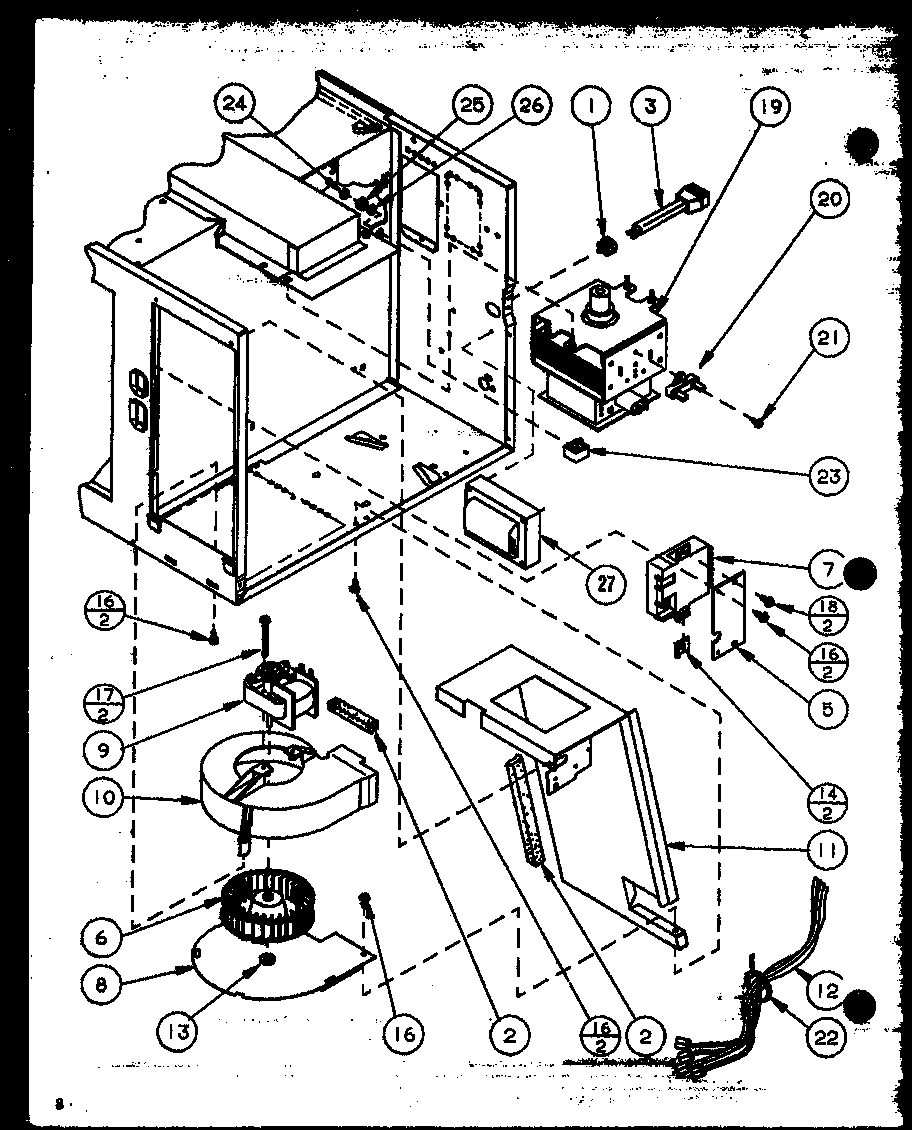

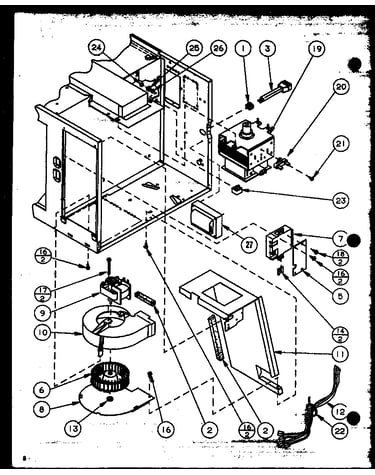

Magnetron/blower diagram

Washer

Part #M0270536

Replaced by #M0270536

?
Manufacturer substitution
This part replaces M0270536. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
