Sharp
Countertop Microwave

Model # R-410AW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-410AW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

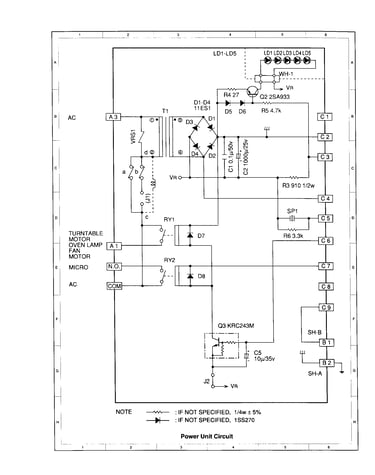

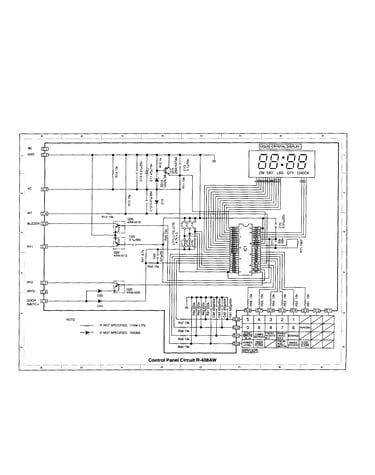

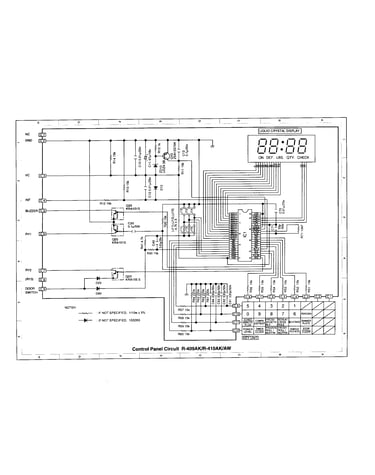

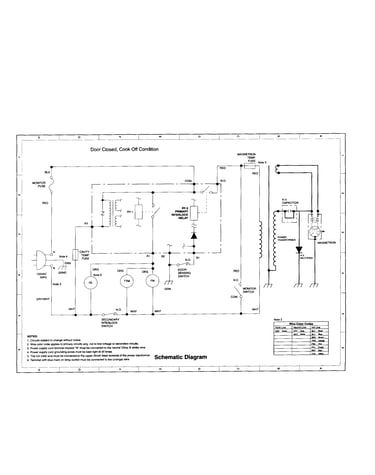

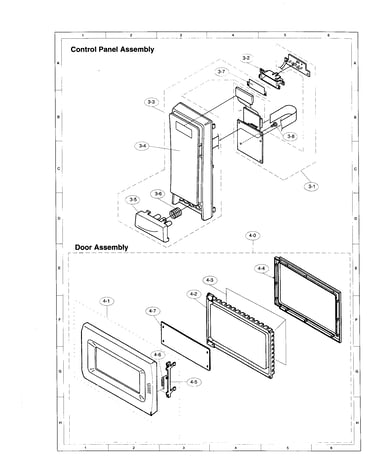

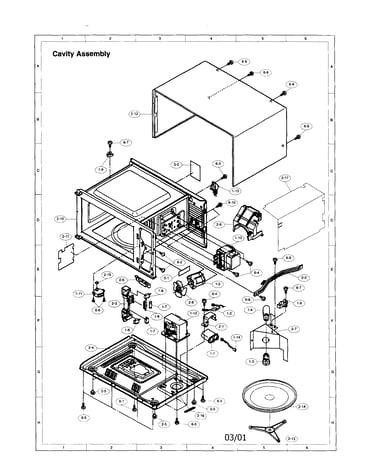

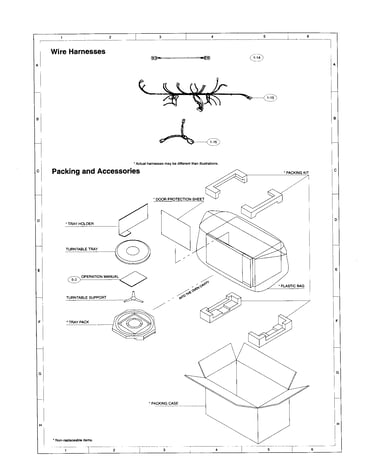

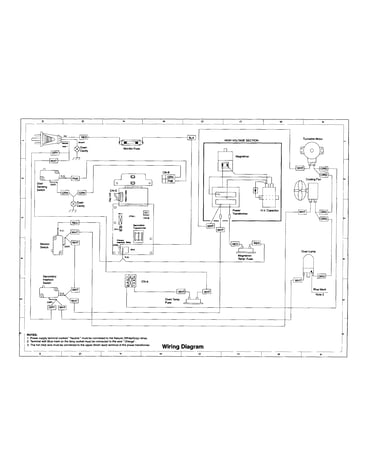

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Switch QSW-MA110WRE0

#1-08

All parts diagram

Switch

Part #QSW-MA110WRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZA173WRE0

#1-01

All parts diagram

Capacitor

Part #RC-QZA173WRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 46-1715508-3
#NI

Cavity diagram

Capacitor

Part #46-1715508-3

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook PHOK-B013MRF0

#2-03

All parts diagram

Latch hook

Part #PHOK-B013MRF0

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA266WRE0

#1-10

All parts diagram

Magnetron

Part #RV-MZA266WRE0

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Assembly (r-410aw) FPNLCB171MRK0

#3-03A

All parts diagram

Control panel assembly (r-410aw)

Part #FPNLCB171MRK0

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDB001MRE0

#1-13

All parts diagram

Power cord

Part #FACCDB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor VCEAB31EW106M

#NI

All parts diagram

Capacitor

Part #VCEAB31EW106M

The manufacturer no longer makes this part, and there's no substitute part

Keypad FUNTKB127MRE0

#3-04A

All parts diagram

Keypad

Part #FUNTKB127MRE0

The manufacturer no longer makes this part, and there's no substitute part

Open Lever MLEVPB013MRF0A

#2-06

All parts diagram

Open lever

Part #MLEVPB013MRF0A

The manufacturer no longer makes this part, and there's no substitute part
