Room Air Conditioner

Model # AJCH10ACCM3 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCH10ACCM3 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Room Air Conditioner Control Knob WJ12X10072
#1086

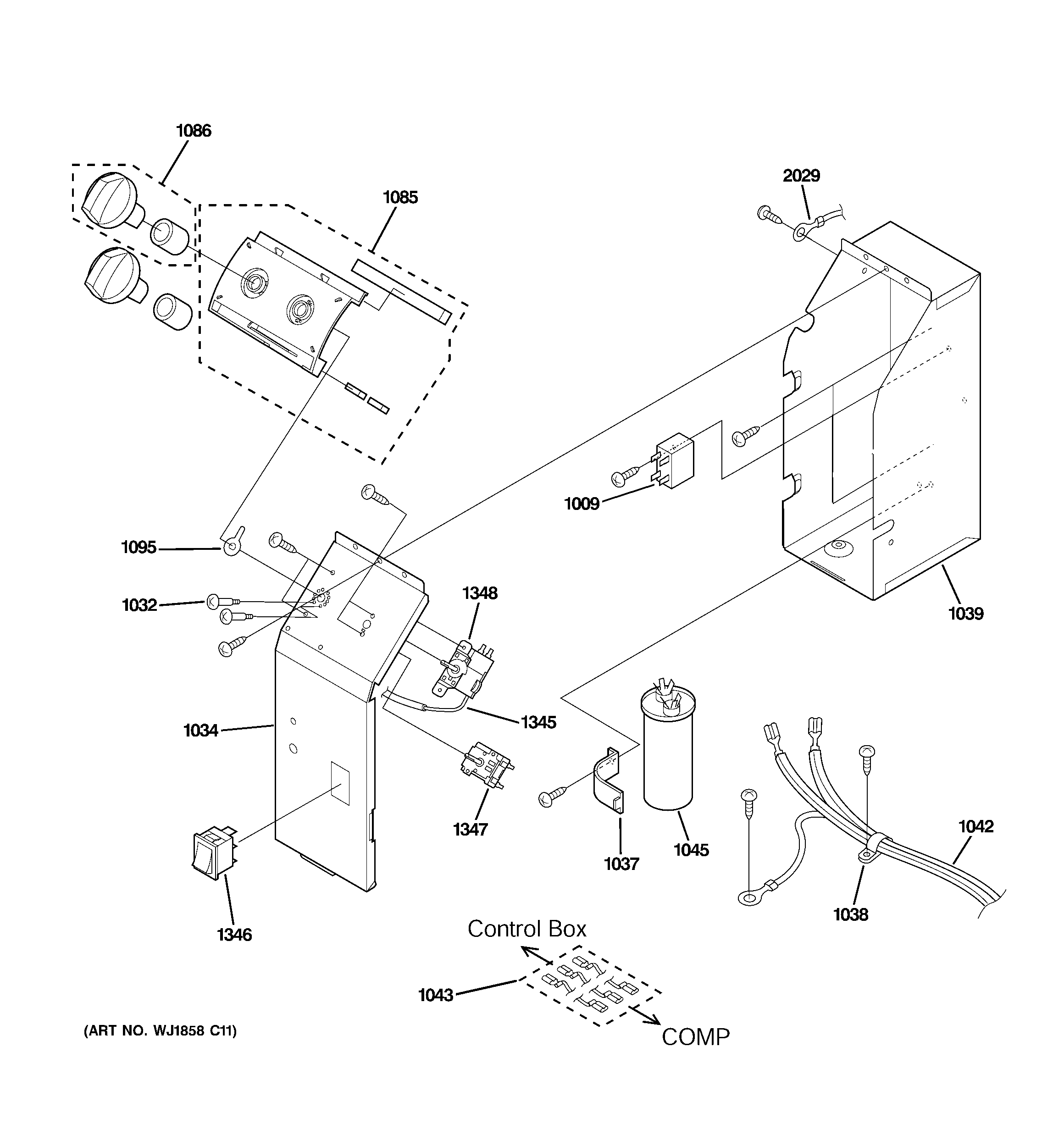

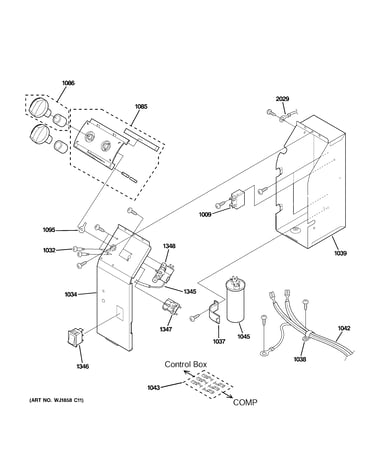

Control parts diagram

Room air conditioner control knob

Part #WJ12X10072

This item is not returnable
$6.92 |
13% OFF Phone Price : $7.92
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

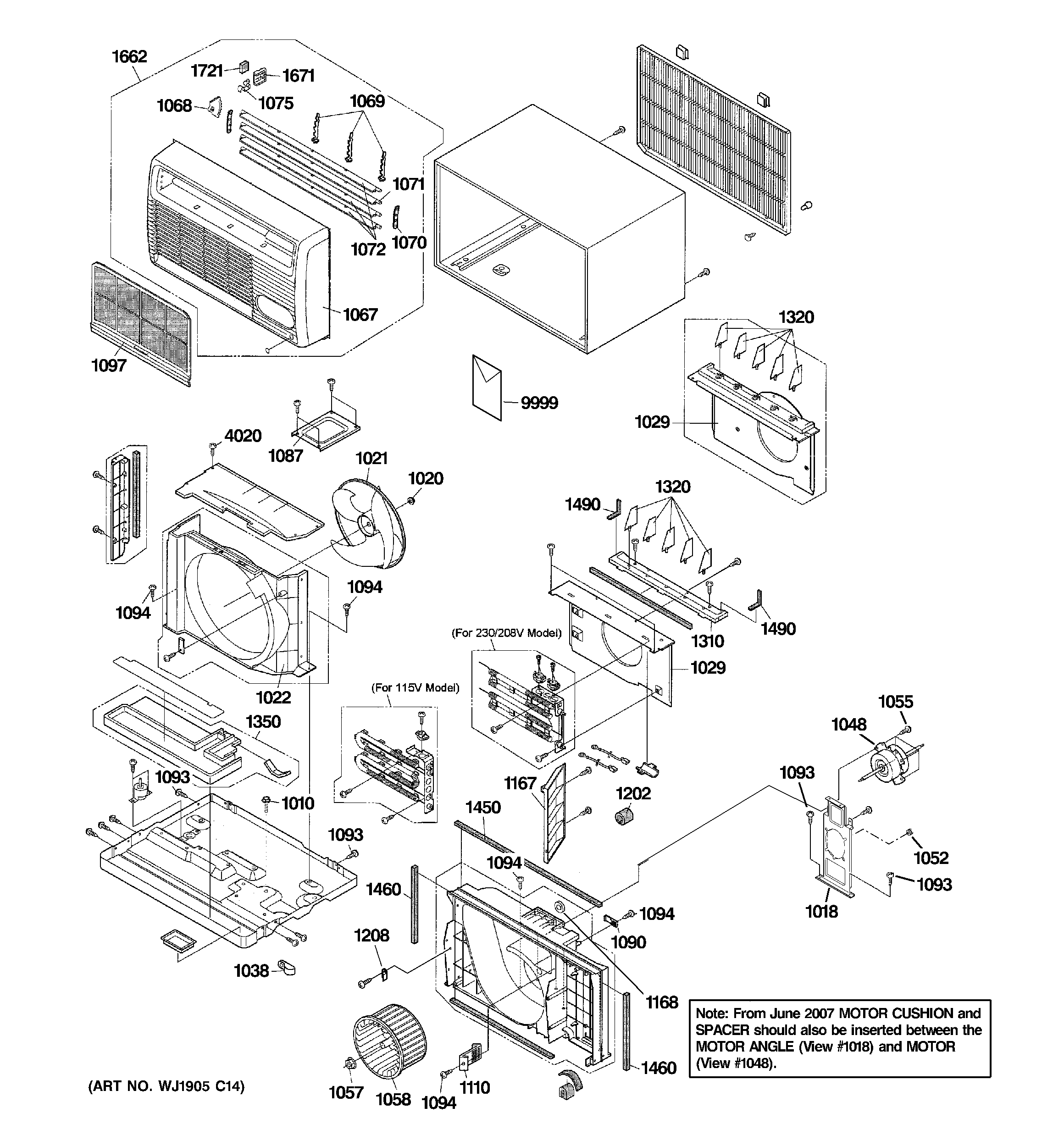

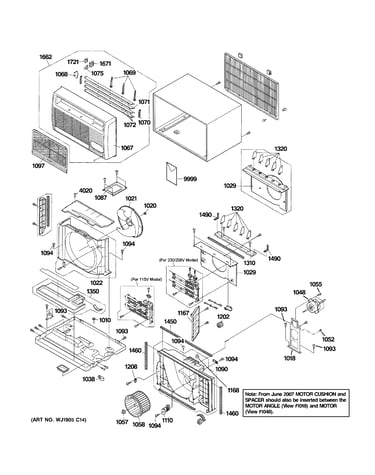

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
U&c/iis Air 49-7572
#9999

Cabinet & components diagram

U&c/iis air

Part #49-7572

$17.99
In Stock
Special Nut WP01X10015
#4004

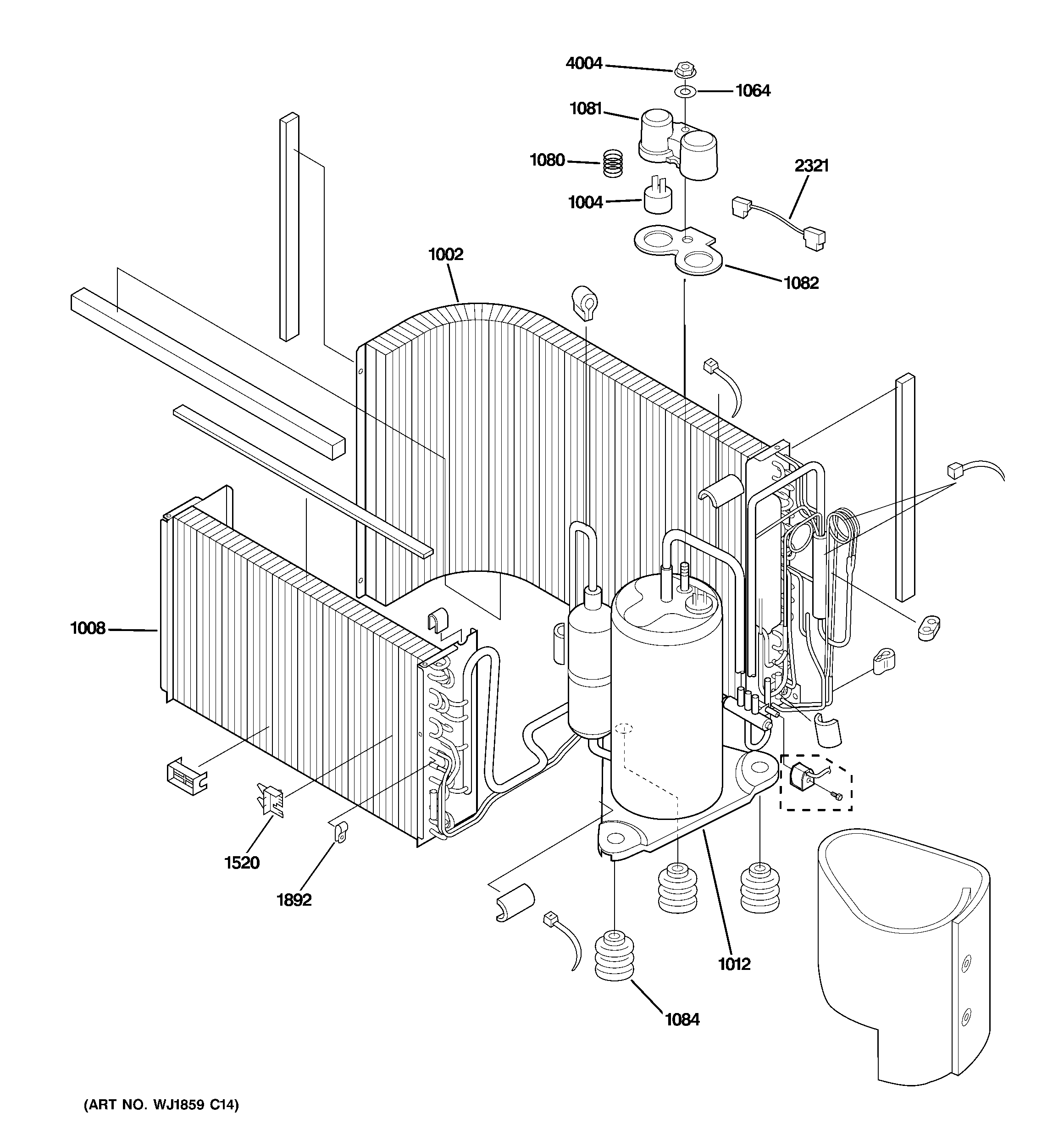

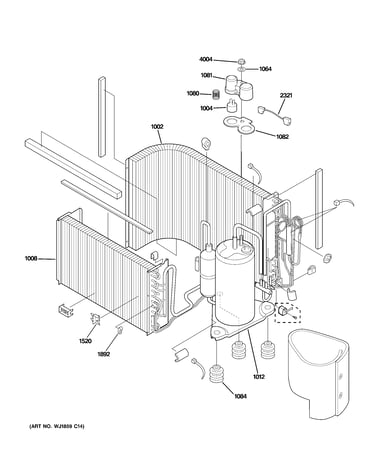

Sealed system & components diagram

Special nut

Part #WP01X10015

This item is not returnable
$4.35
In Stock
Special Screw WP01X10021
#4020

Cabinet & components diagram

Special screw

Part #WP01X10021

$8.11
In Stock
Power Cord WJ35X10123
#1042

Control parts diagram

Power cord

Part #WJ35X10123

Replaced by #WJ35X10143

?
Manufacturer substitution
This part replaces WJ35X10123. Substitute parts can look different from the original.
$123.24 |
9% OFF Phone Price : $135.24
In Stock
Room Air Conditioner Indoor Fan Motor Cushion WJ01X10034
#1052

Cabinet & components diagram

Room air conditioner indoor fan motor cushion

Part #WJ01X10034

The manufacturer no longer makes this part, and there's no substitute part

Gas Terminal WJ43X10003
#1082

Sealed system & components diagram

Gas terminal

Part #WJ43X10003

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Fan Motor Capacitor WJ20X10110
#1045

Control parts diagram

Room air conditioner fan motor capacitor

Part #WJ20X10110

The manufacturer no longer makes this part, and there's no substitute part

Special Nut WJ01X10283
#1020

Cabinet & components diagram

Special nut

Part #WJ01X10283

The manufacturer no longer makes this part, and there's no substitute part
