Model # WAK087Y7V1 Official White-Westinghouse room air conditioner - 5995282547

Here are the diagrams and repair parts for Official White-Westinghouse WAK087Y7V1 room air conditioner - 5995282547, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

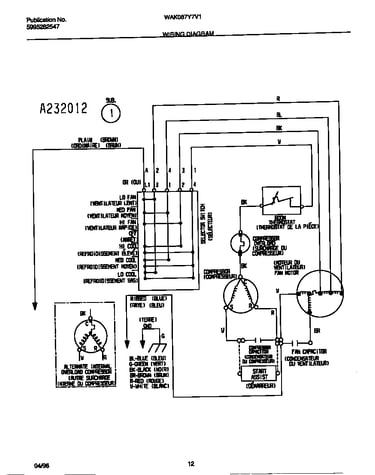

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

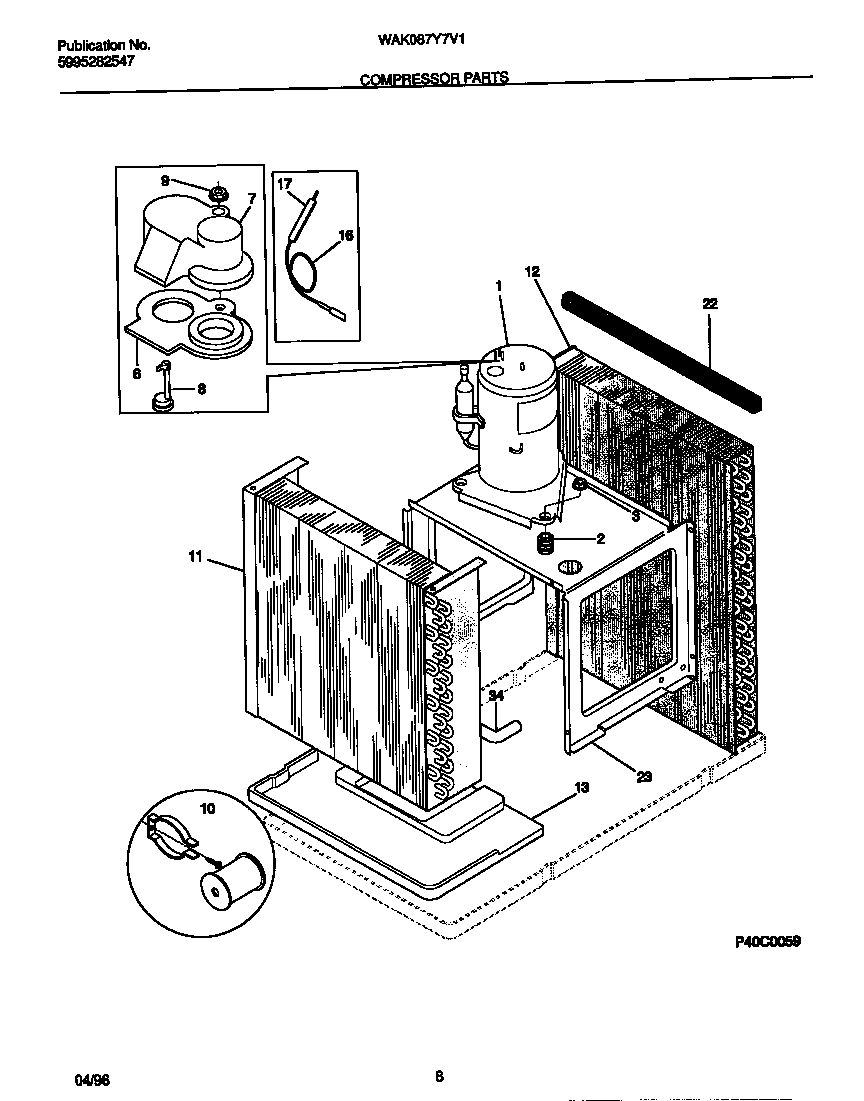

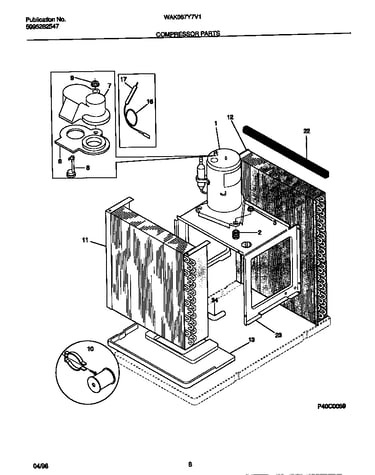

Compressor parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Evaporator 309617003
#11

Compressor parts diagram

Evaporator

Part #309617003

$125.19
In Stock
Seal Condenser 5303313964
Seal condenser

Part #5303313964

This item is not returnable
$2.16
In Stock
Spacer 5303211009
#12

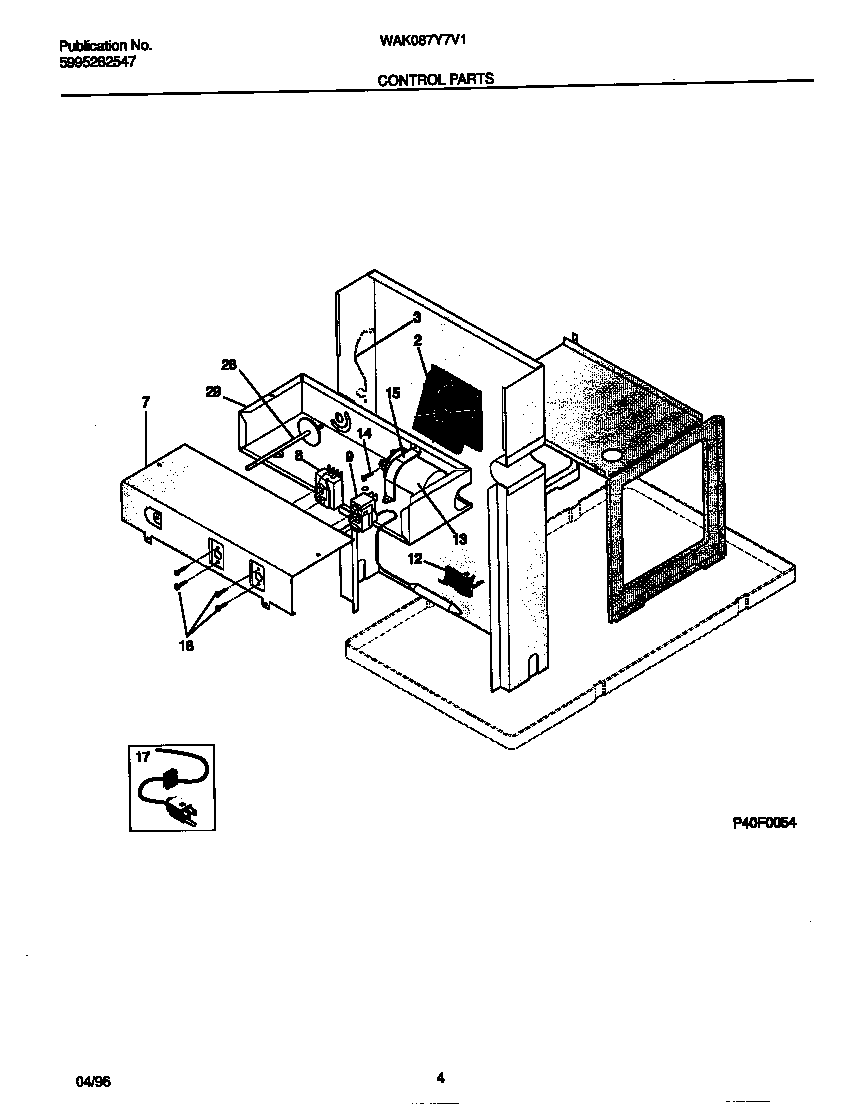

Control parts diagram

Spacer

Part #5303211009

This item is not returnable
$3.24
In Stock
Screw 5303303691
#7

Air handling parts diagram

Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
$14.69
In Stock
Screw 3202975
#2

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Shroud 309620501
#3

Air handling parts diagram

Shroud

Part #309620501

The manufacturer no longer makes this part, and there's no substitute part

Drain Hose 309105501
#34

Compressor parts diagram

Drain hose

Part #309105501

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 309612401
#1

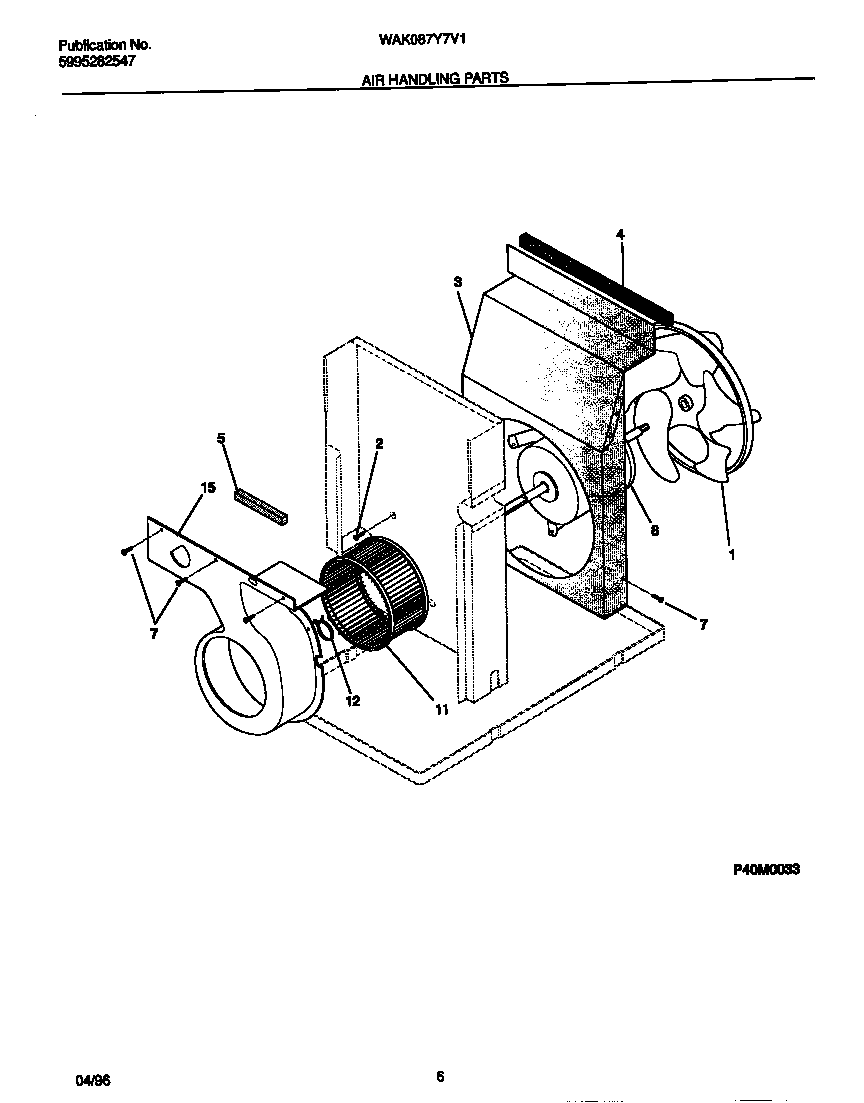

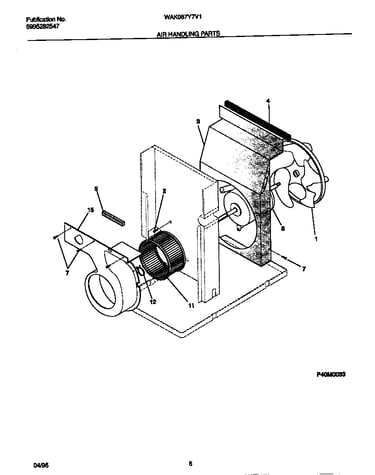

Air handling parts diagram

Fan blade

Part #309612401

The manufacturer no longer makes this part, and there's no substitute part

Screw 08016221
#14

Control parts diagram

Screw

Part #08016221

The manufacturer no longer makes this part, and there's no substitute part
