Model # U4205 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U4205 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Air Duct 38656023
#6

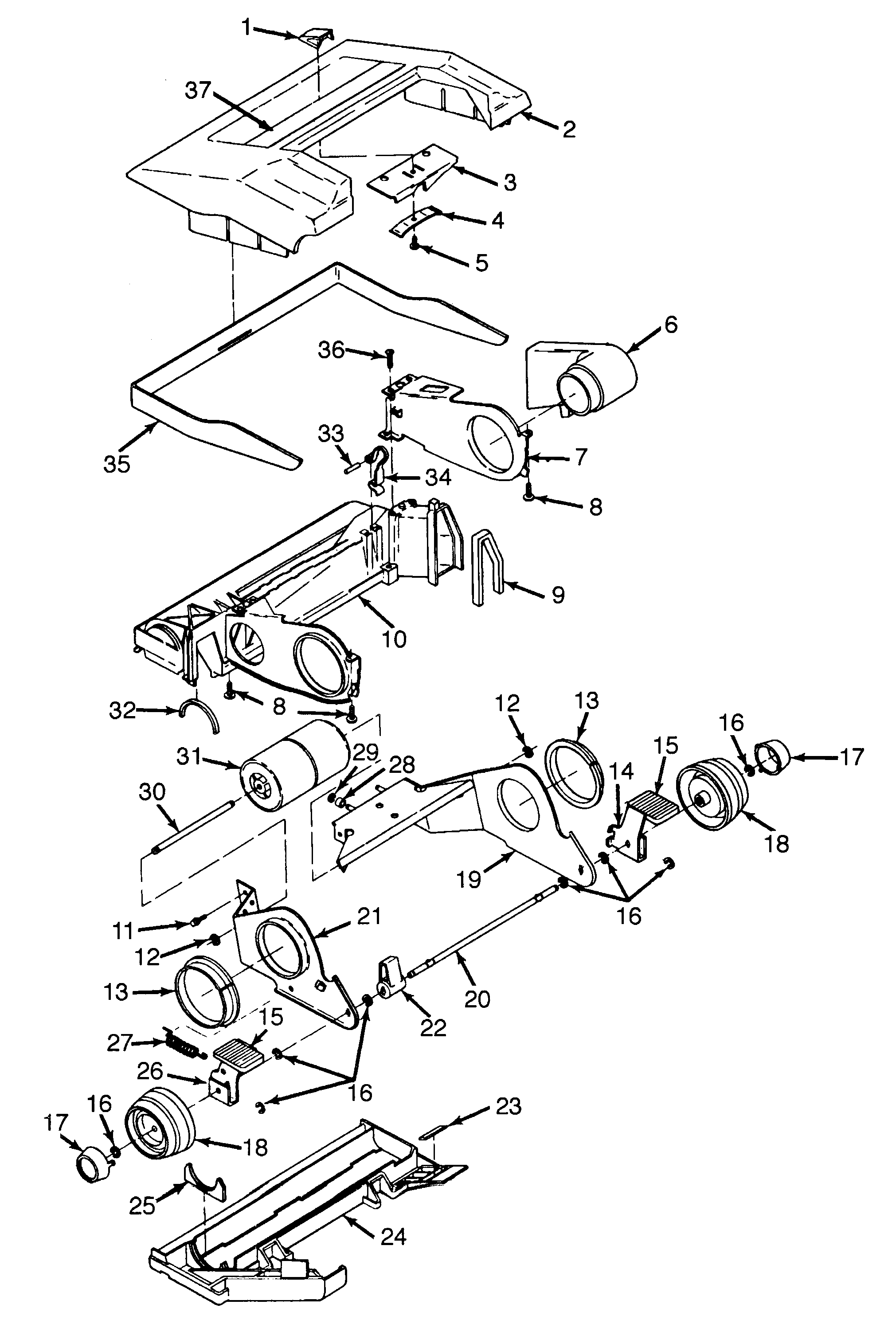

Mainbody, hood diagram

Air duct

Part #38656023

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Brake Pad 36222008
#4A

Outerbag diagram

Kenmore brake pad

Part #36222008

The manufacturer no longer makes this part, and there's no substitute part

Split Ring 33712007
#19A

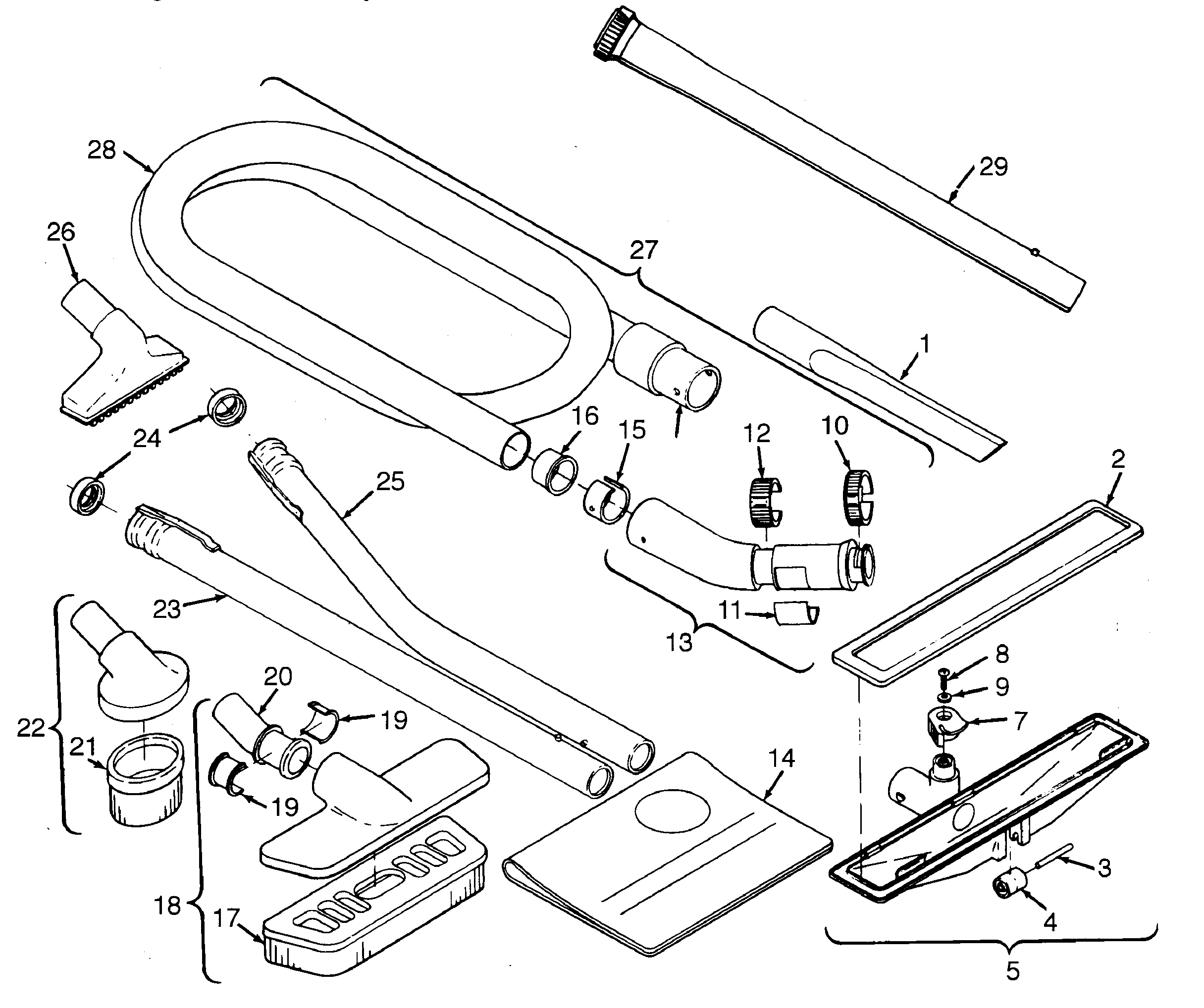

Cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Complete Motor 43576038
Complete motor

Part #43576038

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Axle 32547002
#20

Mainbody, hood diagram

Kenmore axle

Part #32547002

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Terminal 27666702
#3

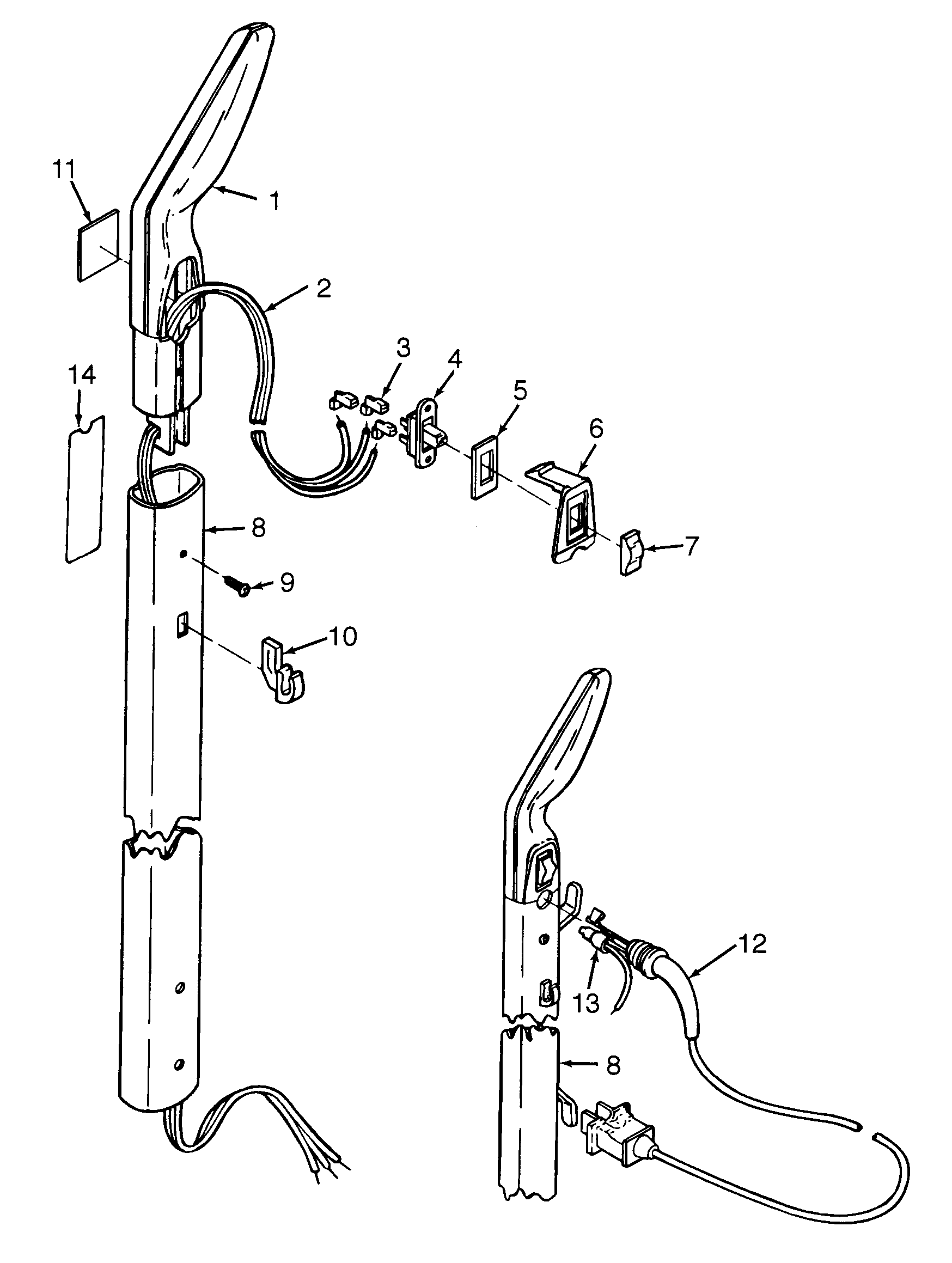

Handle diagram

Kenmore terminal

Part #27666702

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#3

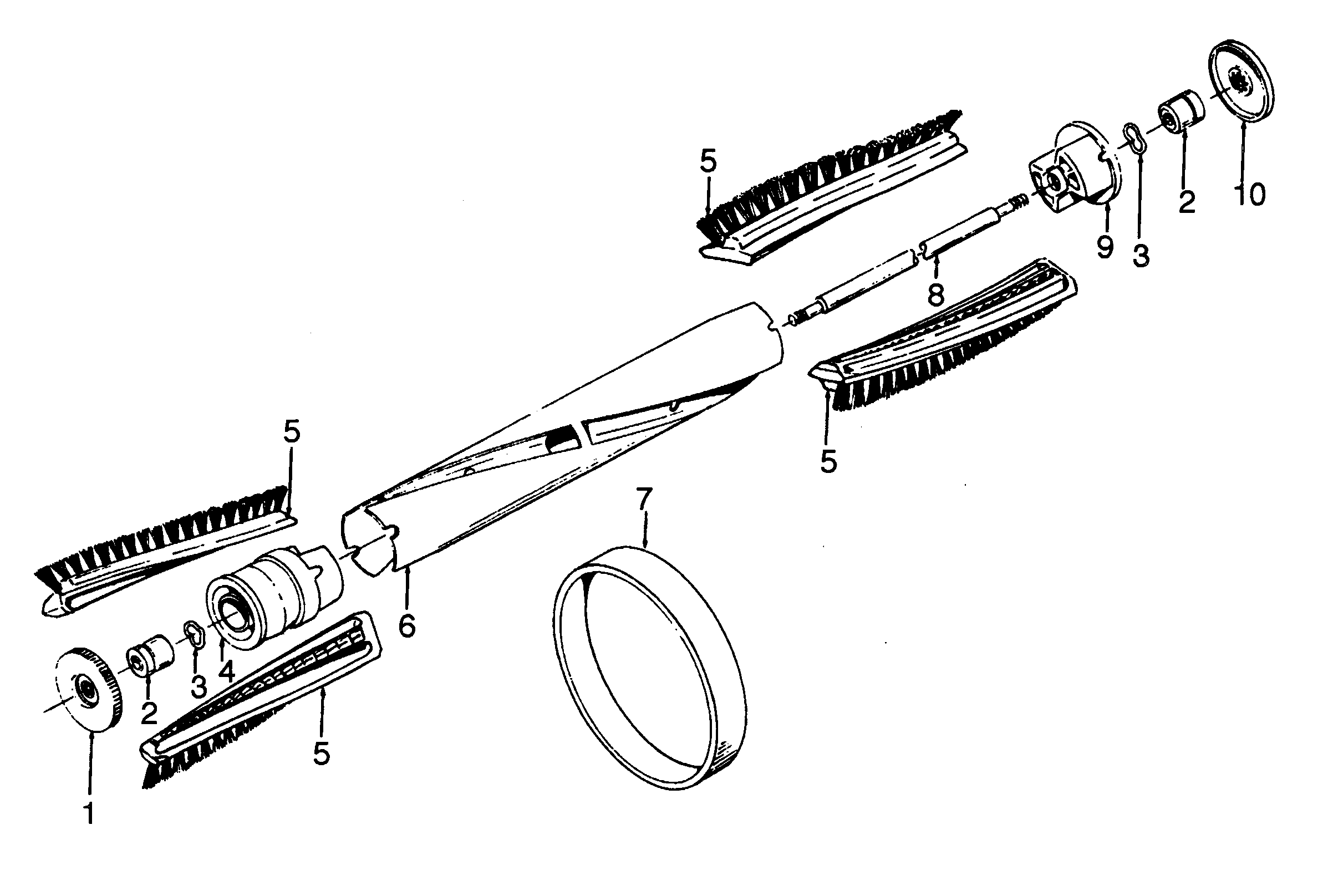

Agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528008
#7

Agitator diagram

Vacuum beater bar belt

Part #38528008

The manufacturer no longer makes this part, and there's no substitute part

Thread Guard 41435018
#10

Agitator diagram

Thread guard

Part #41435018

The manufacturer no longer makes this part, and there's no substitute part

Screw 21479573
#14

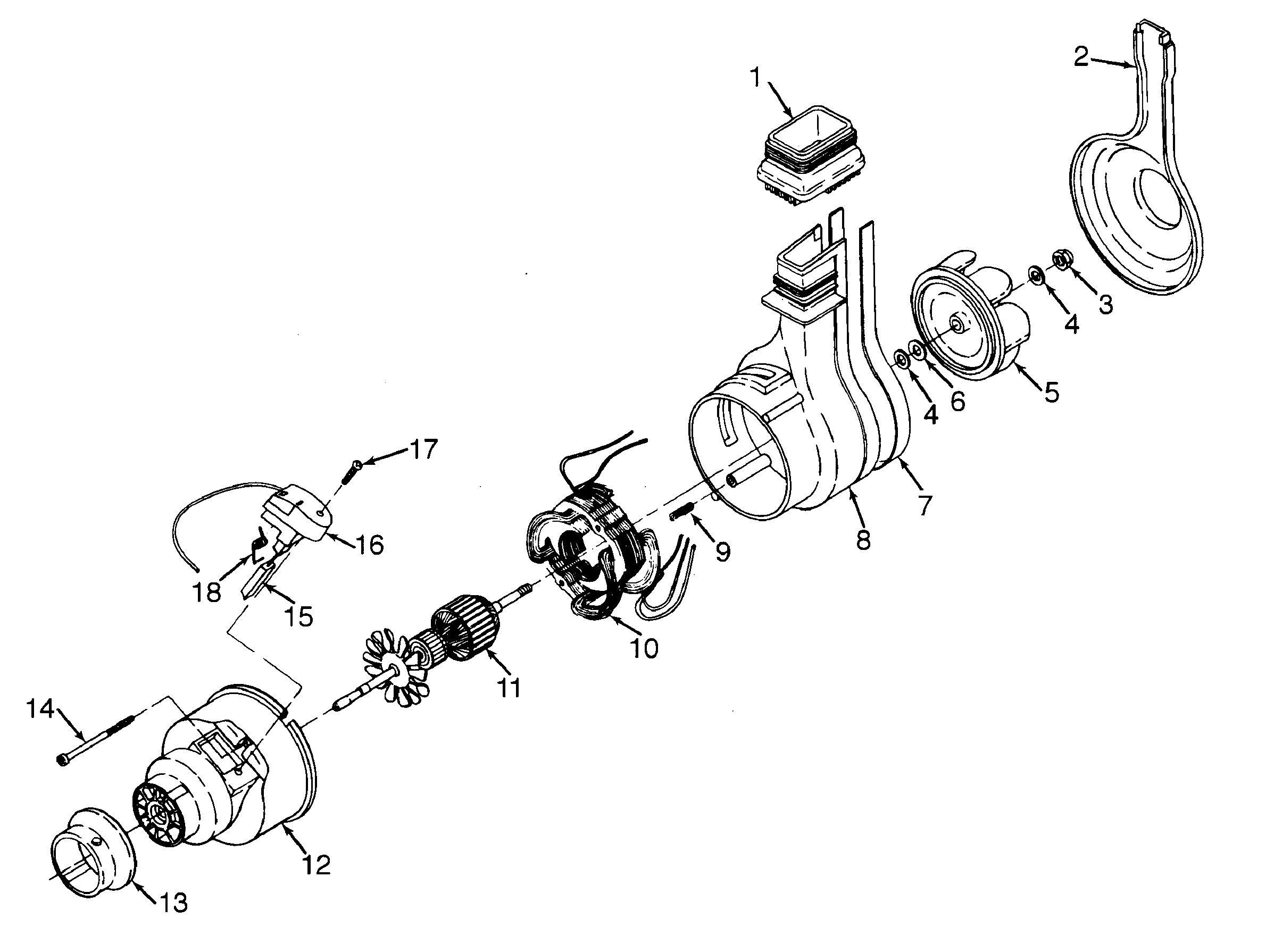

Motor assembly diagram

Screw

Part #21479573

The manufacturer no longer makes this part, and there's no substitute part
