Model # 240859101 Official Craftsman cordless electric hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 240859101 cordless electric hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |

Blade Insert 3919
#2

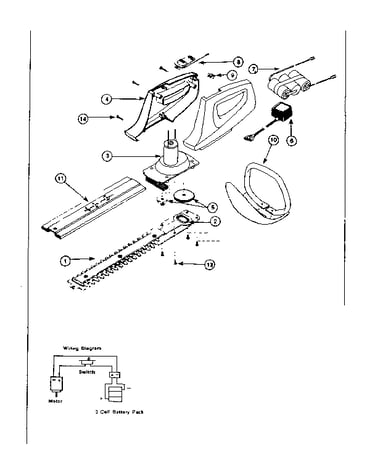

Cordless electric shrub trimmer diagram

Blade insert

Part #3919

The manufacturer no longer makes this part, and there's no substitute part

Motr Base Ay 4052
#3

Cordless electric shrub trimmer diagram

Motr base ay

Part #4052

The manufacturer no longer makes this part, and there's no substitute part

Terminal 4231
#9

Cordless electric shrub trimmer diagram

Terminal

Part #4231

The manufacturer no longer makes this part, and there's no substitute part

Screw 4237
#13

Cordless electric shrub trimmer diagram

Screw

Part #4237

The manufacturer no longer makes this part, and there's no substitute part

Screw 3610
#14

Cordless electric shrub trimmer diagram

Screw

Part #3610

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 3964
#7

Cordless electric shrub trimmer diagram

Battery pack

Part #3964

The manufacturer no longer makes this part, and there's no substitute part

Type D Chrgr 3929
#6

Cordless electric shrub trimmer diagram

Type d chrgr

Part #3929

The manufacturer no longer makes this part, and there's no substitute part

Blade Guard 3916
#11

Cordless electric shrub trimmer diagram

Blade guard

Part #3916

The manufacturer no longer makes this part, and there's no substitute part

Blade Assembly 4041
#1

Cordless electric shrub trimmer diagram

Blade assembly

Part #4041

The manufacturer no longer makes this part, and there's no substitute part

Lop Hnd W/gd 4053
#10

Cordless electric shrub trimmer diagram

Lop hnd w/gd

Part #4053

The manufacturer no longer makes this part, and there's no substitute part
