Craftsman
Lawn & Garden Engine

Model # 143102131 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143102131 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

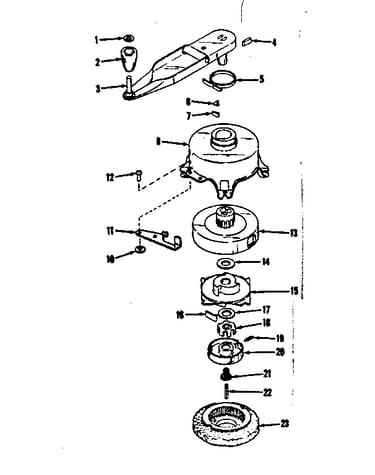

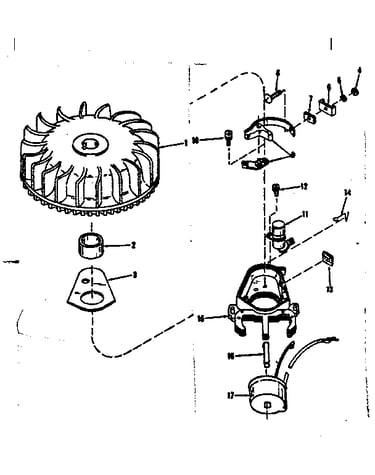

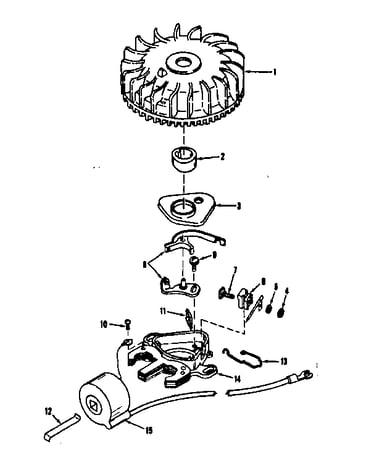

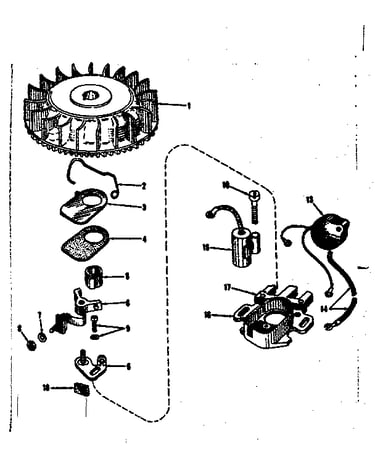

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 219 parts  |
Fuel Line 30120
#114

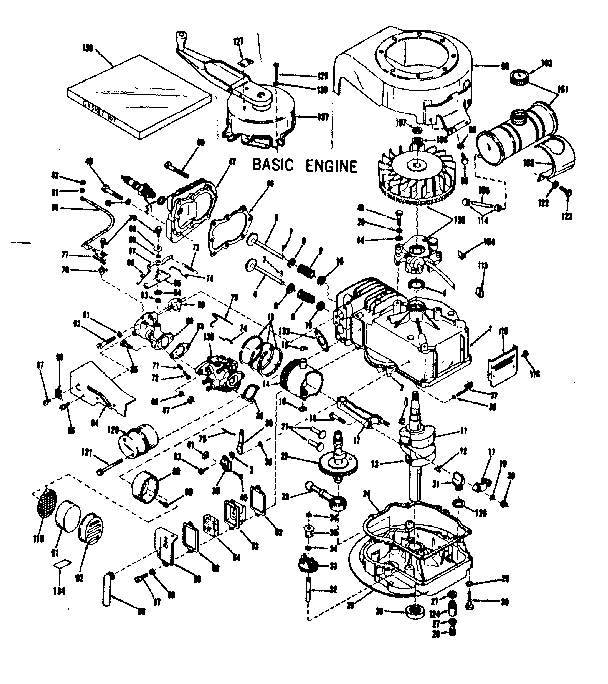

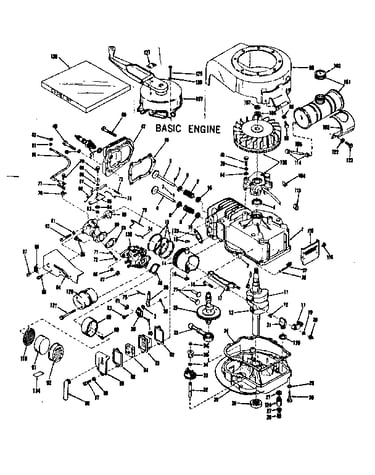

Basic engine diagram

Fuel line

Part #30120

The manufacturer no longer makes this part, and there's no substitute part

Plug 27625
#31

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Screw 28403
#62

Basic engine diagram

Screw

Part #28403

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#90

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Diaphragm 630749
#22

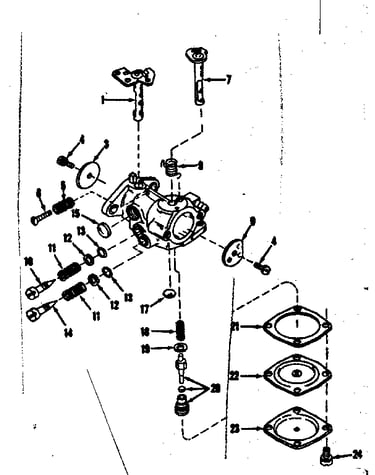

Carburetor no.30119 (power products) diagram

Diaphragm

Part #630749

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Washer 630739
#12

Carburetor no.30119 (power products) diagram

Washer

Part #630739

The manufacturer no longer makes this part, and there's no substitute part

Cover 630751
#23

Carburetor no.30119 (power products) diagram

Cover

Part #630751

The manufacturer no longer makes this part, and there's no substitute part

Screw 650446
#4

Carburetor no.30119 (power products) diagram

Screw

Part #650446

The manufacturer no longer makes this part, and there's no substitute part

Gasket 630750
#21

Carburetor no.30119 (power products) diagram

Gasket

Part #630750

The manufacturer no longer makes this part, and there's no substitute part
