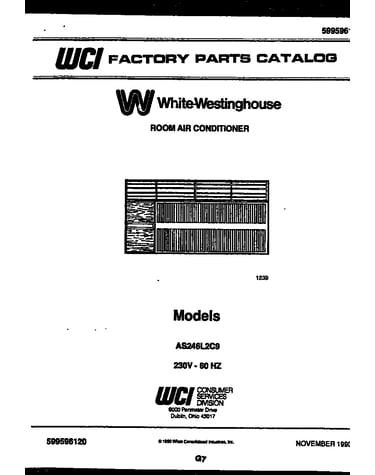

Model # AS246L2C9 Official White-Westinghouse room air conditioner - 599596120

Here are the diagrams and repair parts for Official White-Westinghouse AS246L2C9 room air conditioner - 599596120, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Filter A000265301
#9

System parts diagram

Filter

Part #A000265301

Replaced by #5300265301

?
Manufacturer substitution
This part replaces A000265301. Substitute parts can look different from the original.
$212.62
In Stock
Universal/multiflex (frigidaire) Cover 5303002067
#6

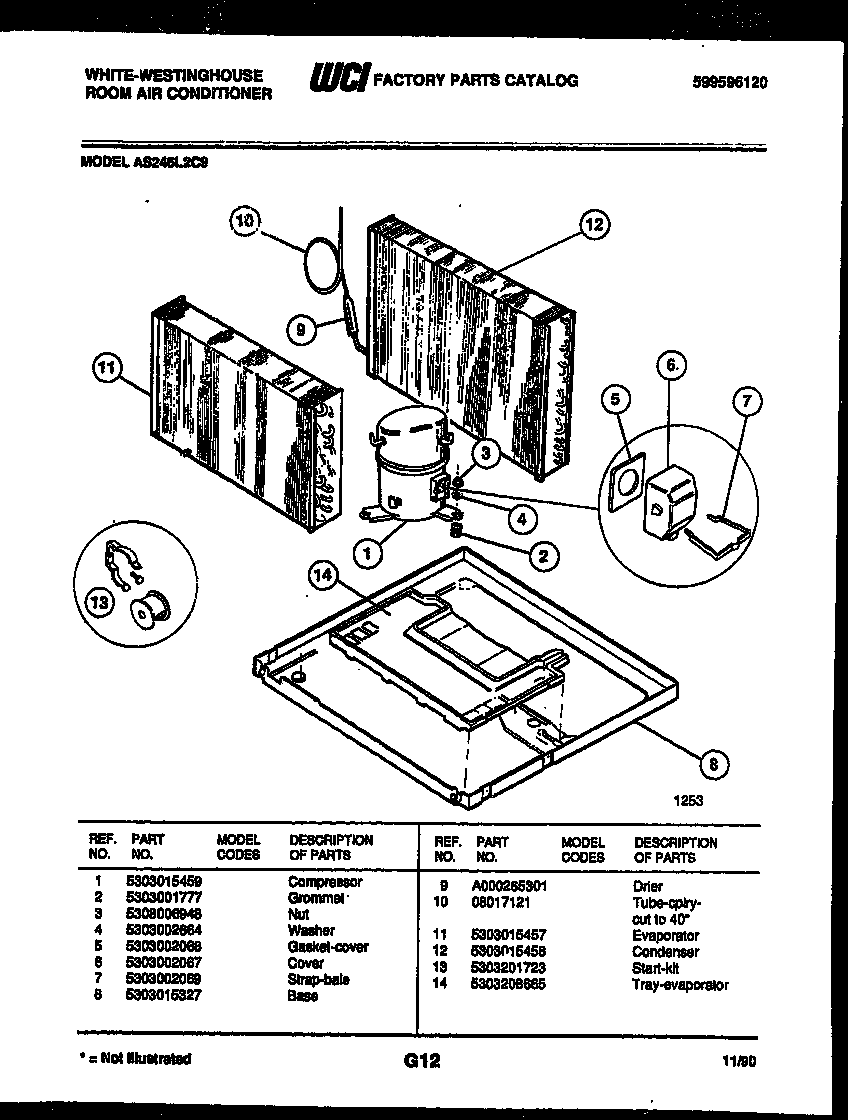

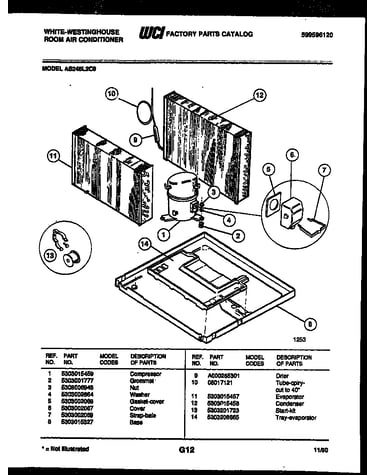

System parts diagram

Universal/multiflex (frigidaire) cover

Part #5303002067

$14.32
In Stock
Divider 3015321
#6

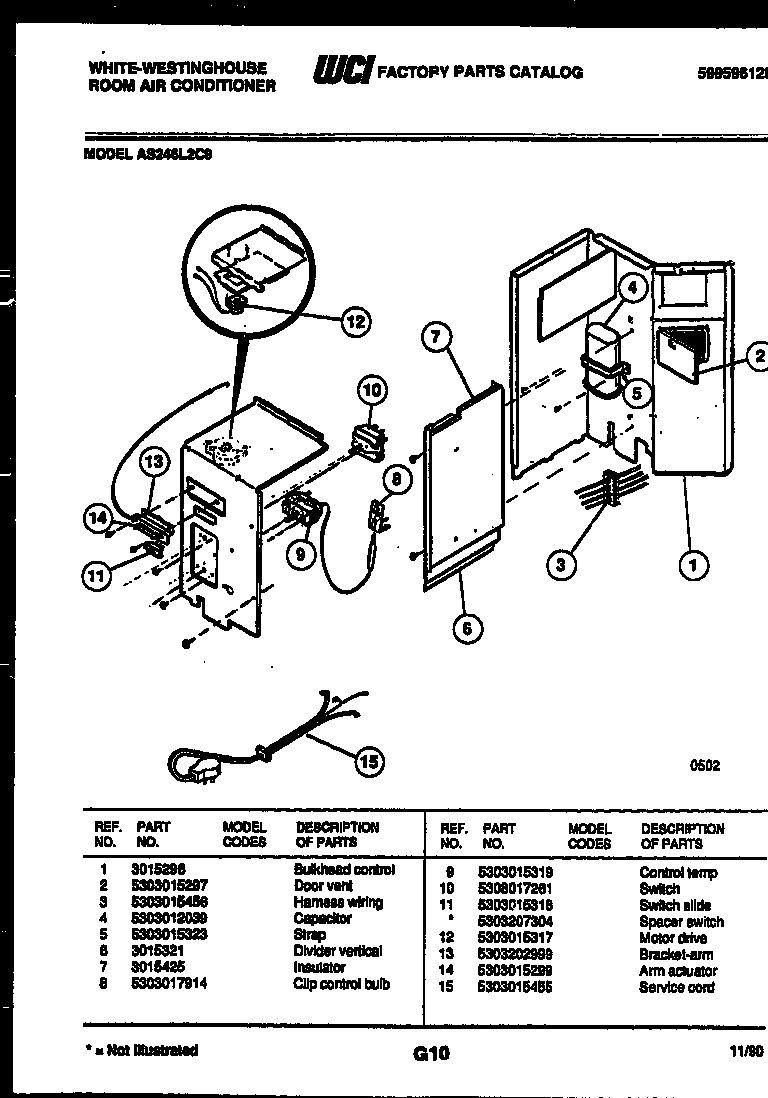

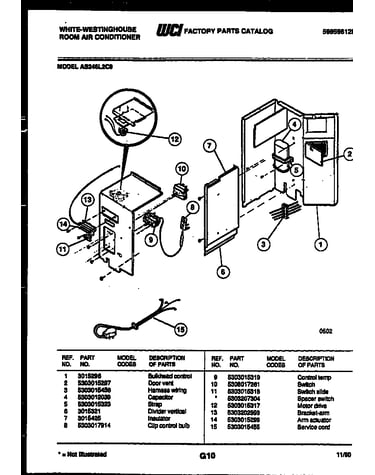

Electrical parts diagram

Divider

Part #3015321

This item is not returnable
$4.79
In Stock
Screw 3015427
#7

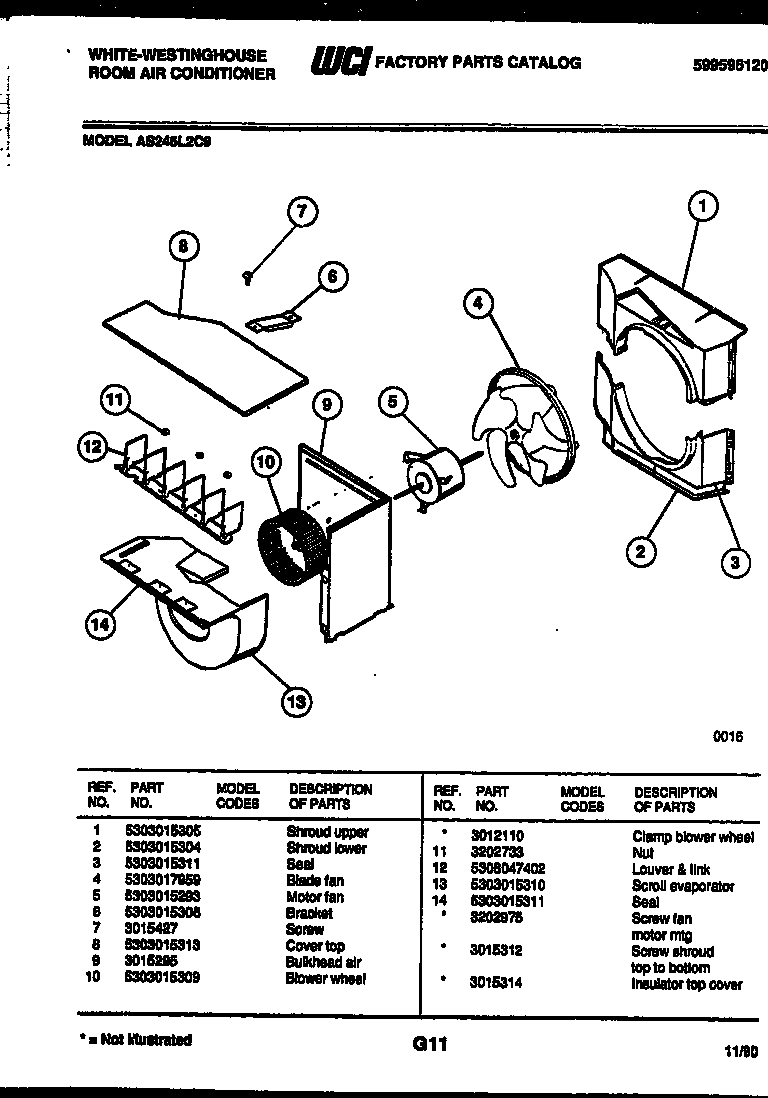

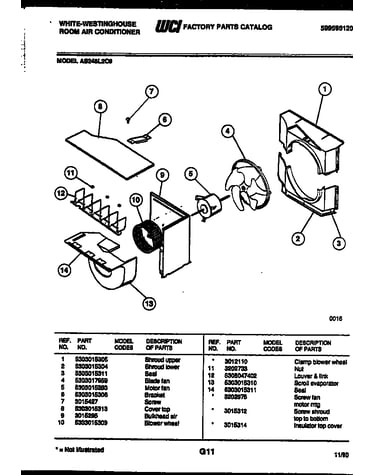

Air handling parts diagram

Screw

Part #3015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 3015427. Substitute parts can look different from the original.
$14.69
In Stock
Screw 3202975

#NI

All parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Bracket Screw 3015312

#NI

All parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Cord 5303015455
#15

Electrical parts diagram

Cord

Part #5303015455

Replaced by #5303302611

?
Manufacturer substitution
This part replaces 5303015455. Substitute parts can look different from the original.
$56.24
In Stock
Motor 5303015317
#12

Electrical parts diagram

Motor

Part #5303015317

The manufacturer no longer makes this part, and there's no substitute part

Front 5300454403
#13

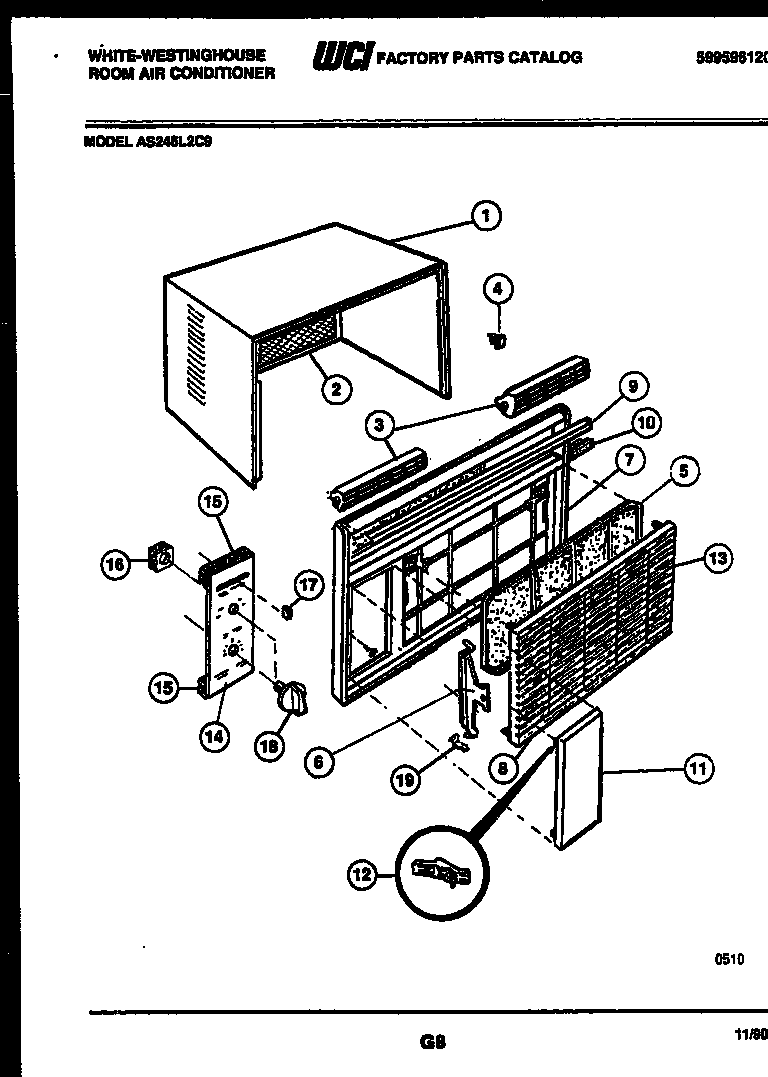

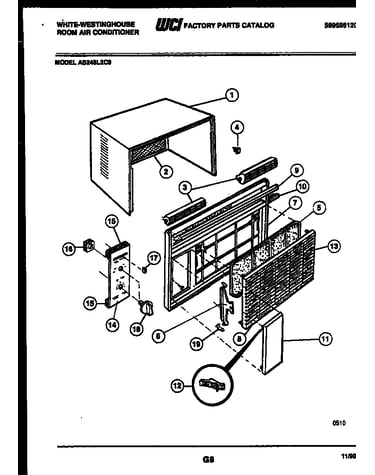

Cabinet parts diagram

Front

Part #5300454403

The manufacturer no longer makes this part, and there's no substitute part

Filter 5300462101
#5

Cabinet parts diagram

Filter

Part #5300462101

The manufacturer no longer makes this part, and there's no substitute part
