Countertop Microwave

Model # 56560586000 Official Kenmore Elite microwave

Here are the diagrams and repair parts for Official Kenmore Elite 56560586000 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

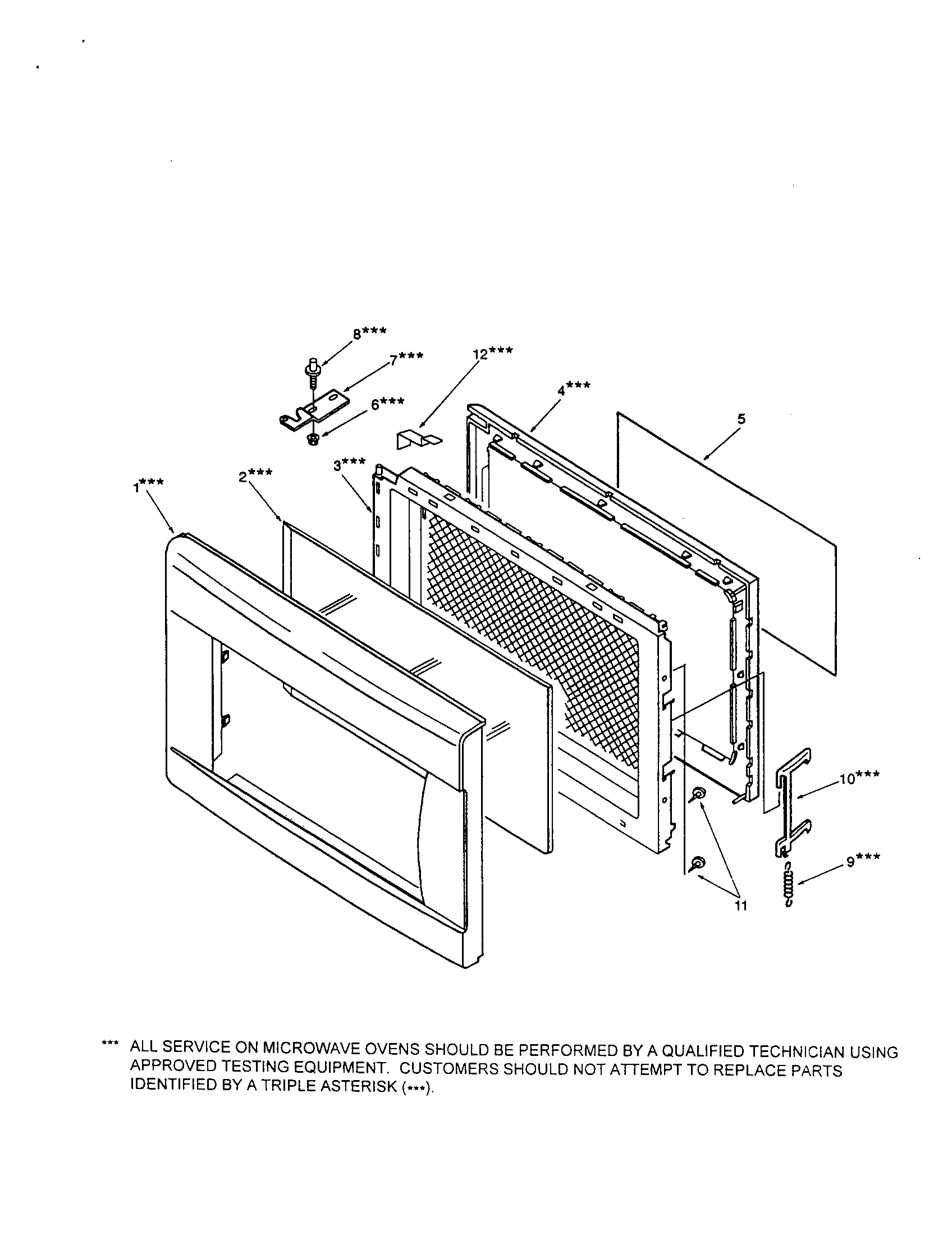

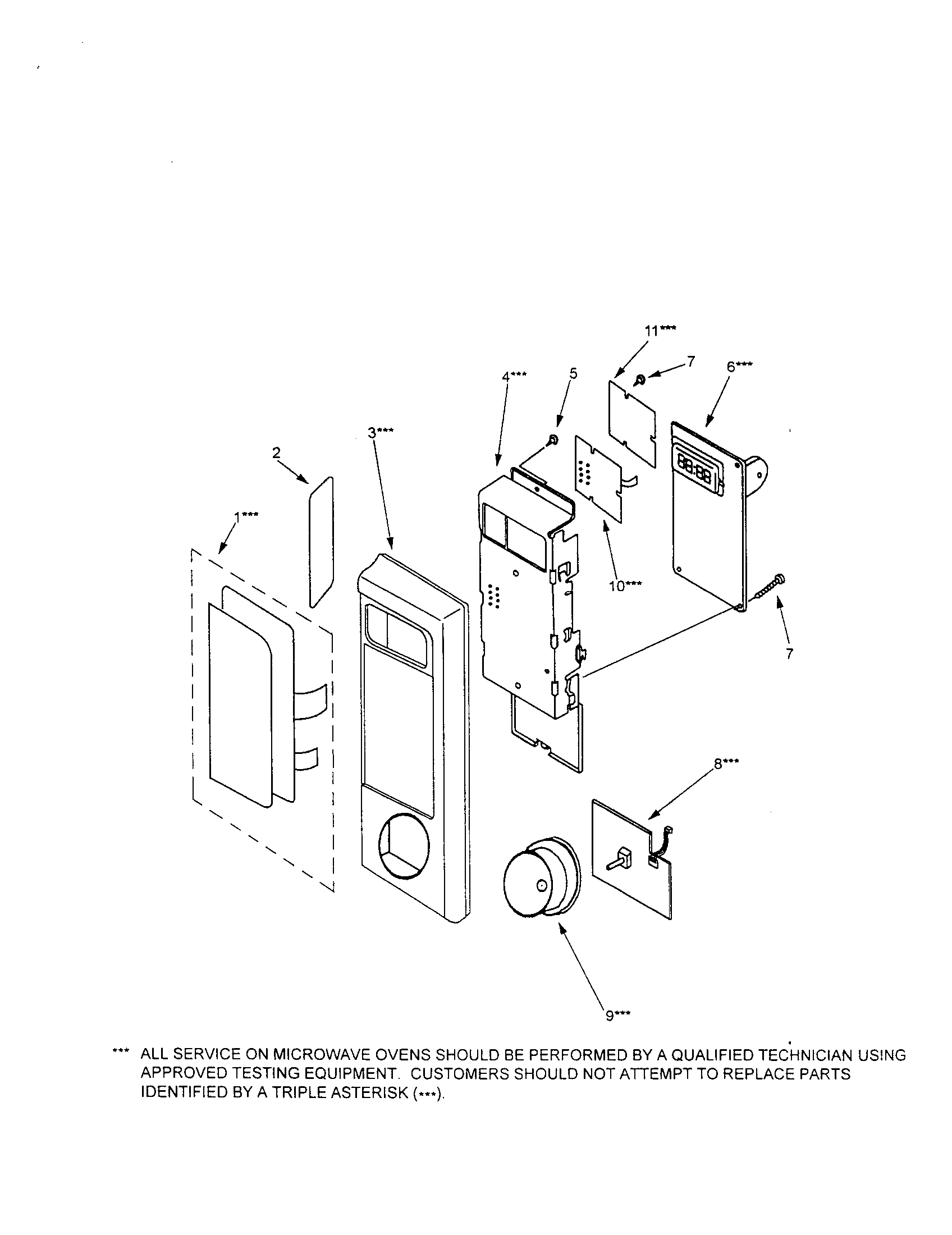

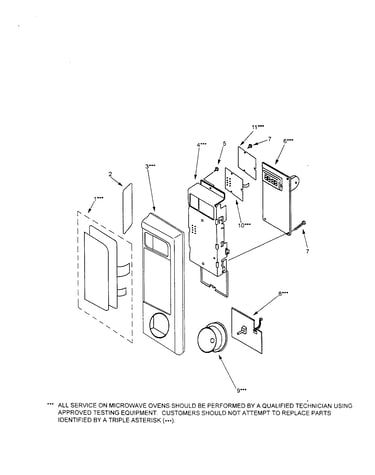

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Magnetron 415-002-3308
#6

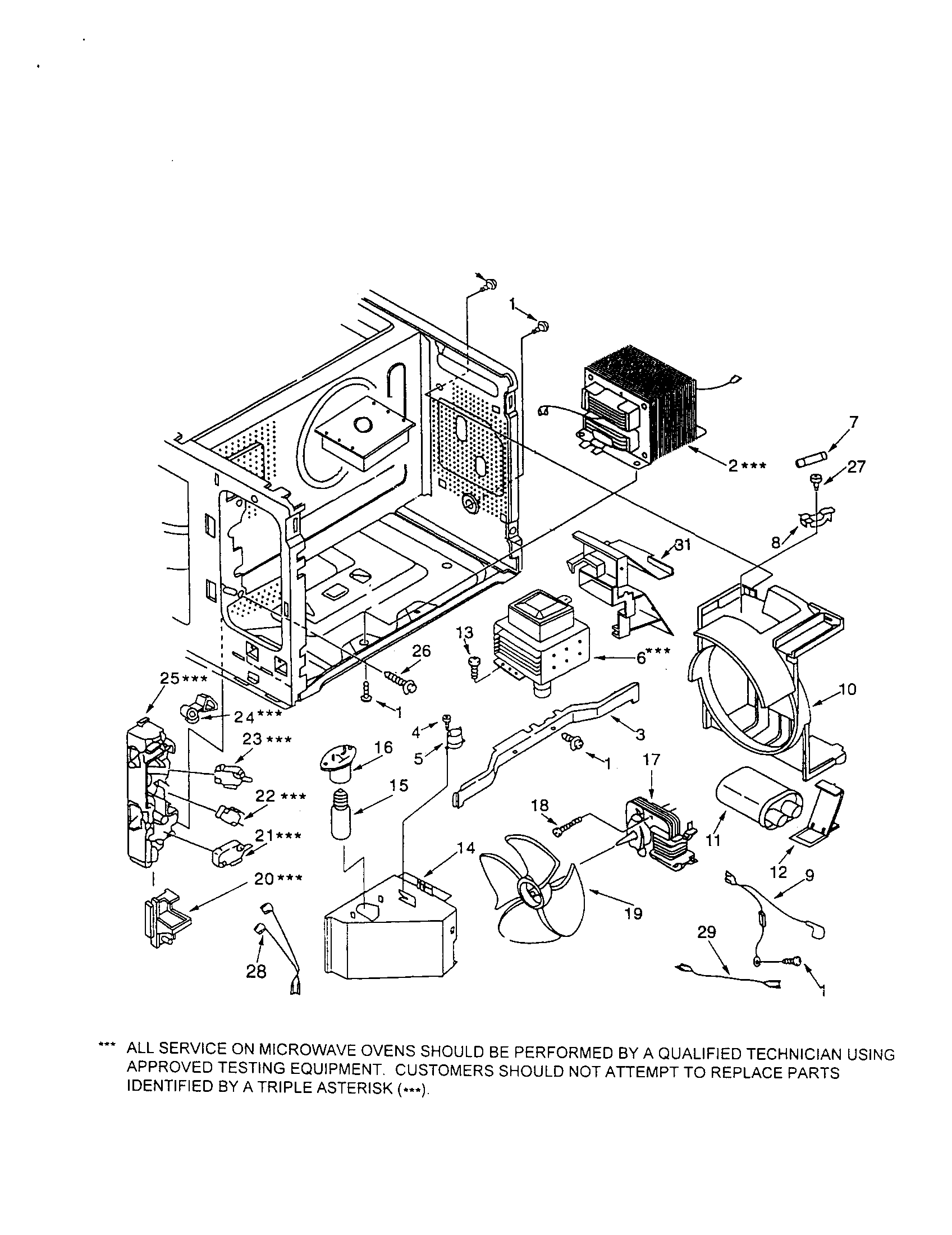

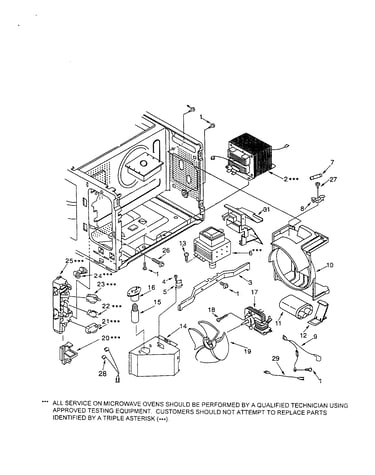

Switches and microwave diagram

Magnetron

Part #415-002-3308

The manufacturer no longer makes this part, and there's no substitute part

Holder 617-233-0006
#8

Switches and microwave diagram

Holder

Part #617-233-0006

The manufacturer no longer makes this part, and there's no substitute part

Ic C358c V 409-057-3000
#IC12

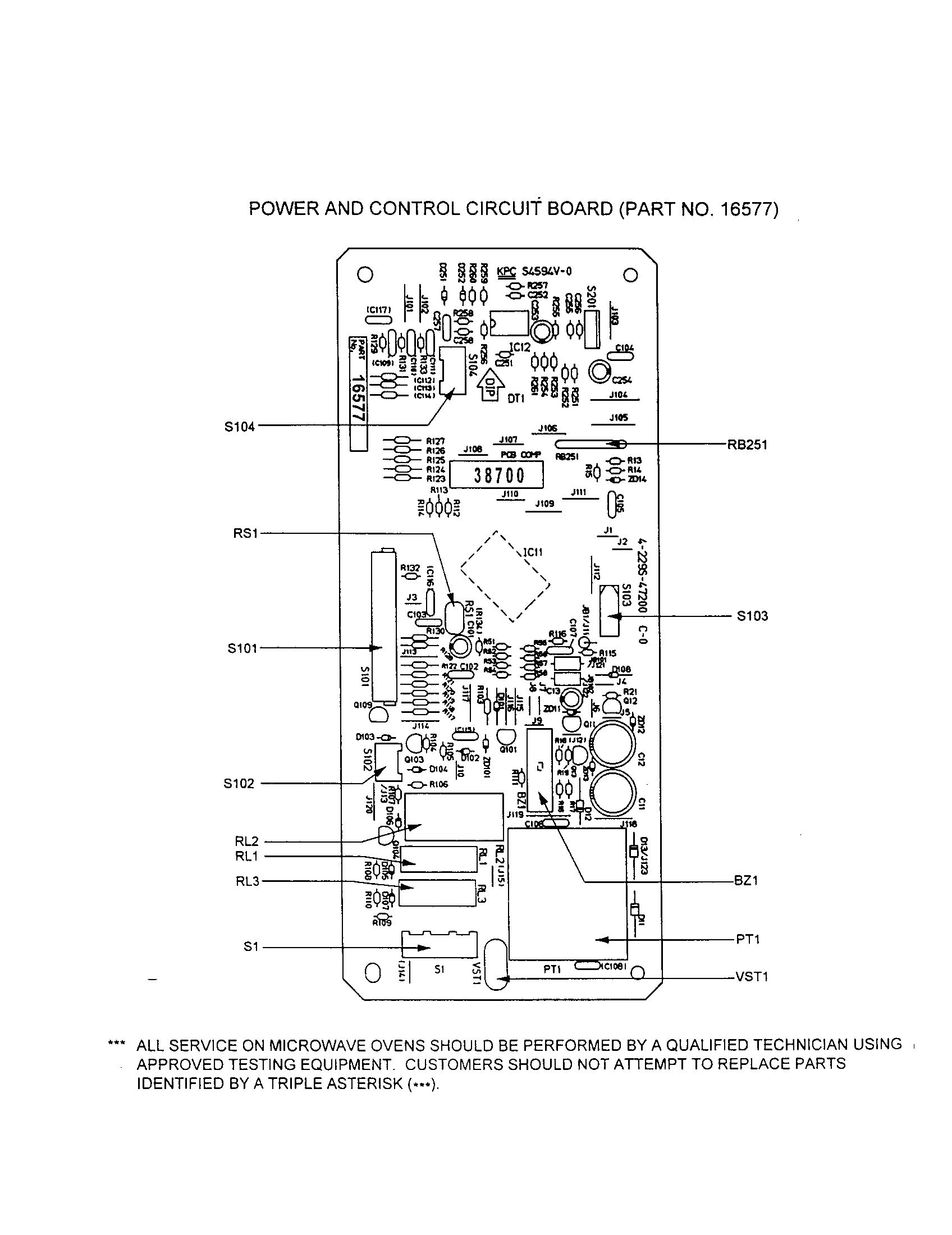

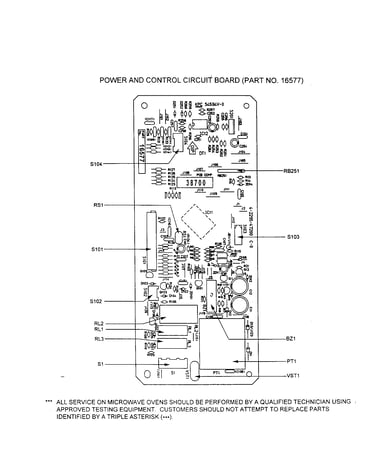

Power and control circuit board diagram

Ic c358c v

Part #409-057-3000

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Diode 617-224-9421
#9

Switches and microwave diagram

High-voltage diode

Part #617-224-9421

The manufacturer no longer makes this part, and there's no substitute part

Switch 617-220-4529
Switch

Part #617-220-4529

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 617-224-9438
#11

Switches and microwave diagram

Capacitor

Part #617-224-9438

The manufacturer no longer makes this part, and there's no substitute part

Screw 411-006-6604
Screw

Part #411-006-6604

The manufacturer no longer makes this part, and there's no substitute part

Harness 617-226-2987
#28

Switches and microwave diagram

Harness

Part #617-226-2987

The manufacturer no longer makes this part, and there's no substitute part

Washer 617-224-9278
#20

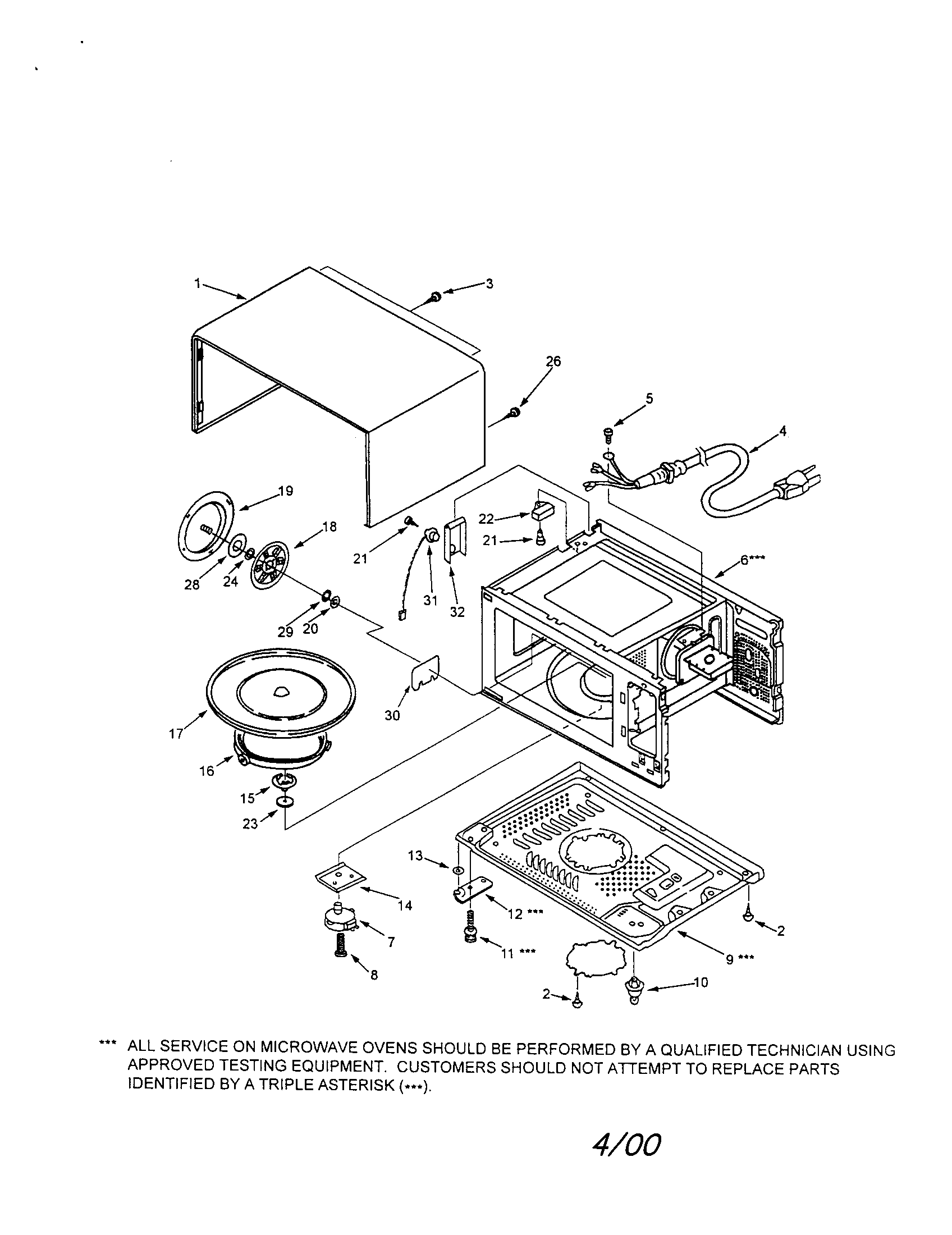

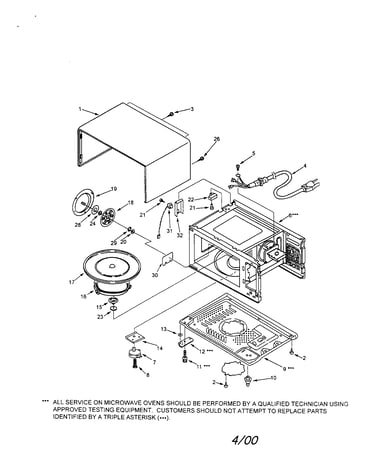

Cabinet diagram

Washer

Part #617-224-9278

The manufacturer no longer makes this part, and there's no substitute part

Screw 411-082-5201
Screw

Part #411-082-5201

The manufacturer no longer makes this part, and there's no substitute part
