Ryobi
Angle Grinder

Model # G-1255C Official Ryobi angle grinder

Here are the diagrams and repair parts for Official Ryobi G-1255C angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Tapping Screw (b) M5 X 65 (2) 9060565
#16

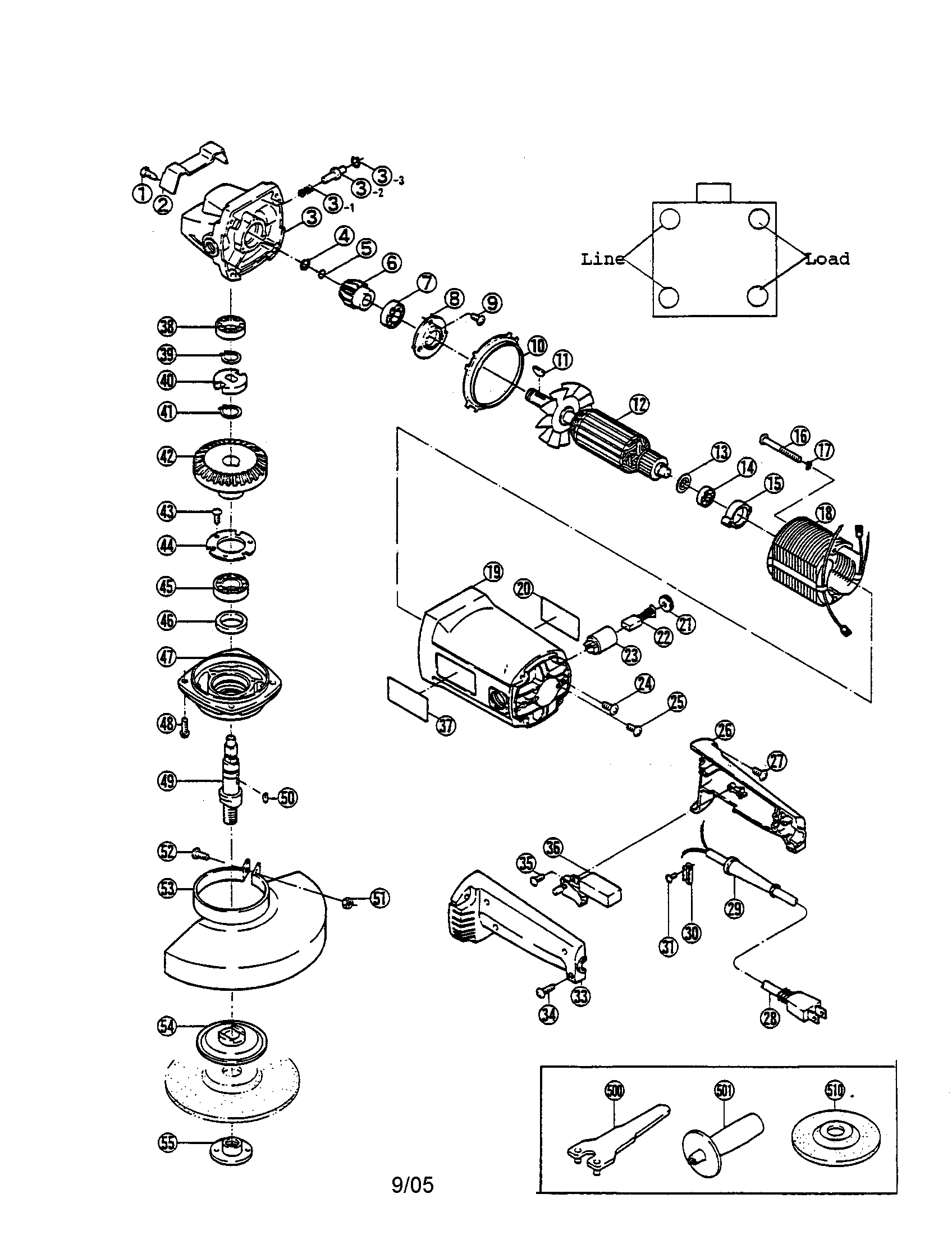

Grinder diagram

Tapping screw (b) m5 x 65 (2)

Part #9060565

The manufacturer no longer makes this part, and there's no substitute part

Connector 6530209

#NI01

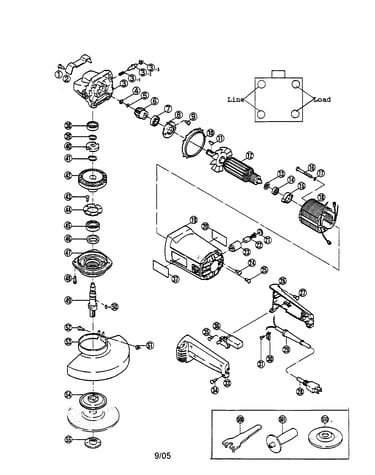

All parts diagram

Connector

Part #6530209

The manufacturer no longer makes this part, and there's no substitute part

Tapping Screw (b) M4 X 18 9060418
#34

Grinder diagram

Tapping screw (b) m4 x 18

Part #9060418

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 6560057
#30

Grinder diagram

Cord clamp

Part #6560057

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 6100005
#4

Grinder diagram

Retaining ring

Part #6100005

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing #608llh 9890608
#14

Grinder diagram

Ball bearing #608llh

Part #9890608

The manufacturer no longer makes this part, and there's no substitute part

Guard Assembly (see Page 6)) N/P
#510

Grinder diagram

Guard assembly (see page 6))

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Stopper Pin 6120087
#3-2

Grinder diagram

Stopper pin

Part #6120087

The manufacturer no longer makes this part, and there's no substitute part

Handle (a) 6830694
#26

Grinder diagram

Handle (a)

Part #6830694

The manufacturer no longer makes this part, and there's no substitute part

Armature 6031060
#12

Grinder diagram

Armature

Part #6031060

The manufacturer no longer makes this part, and there's no substitute part
