Model # HBLG1000R Official LG room air conditioner

Here are the diagrams and repair parts for Official LG HBLG1000R room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

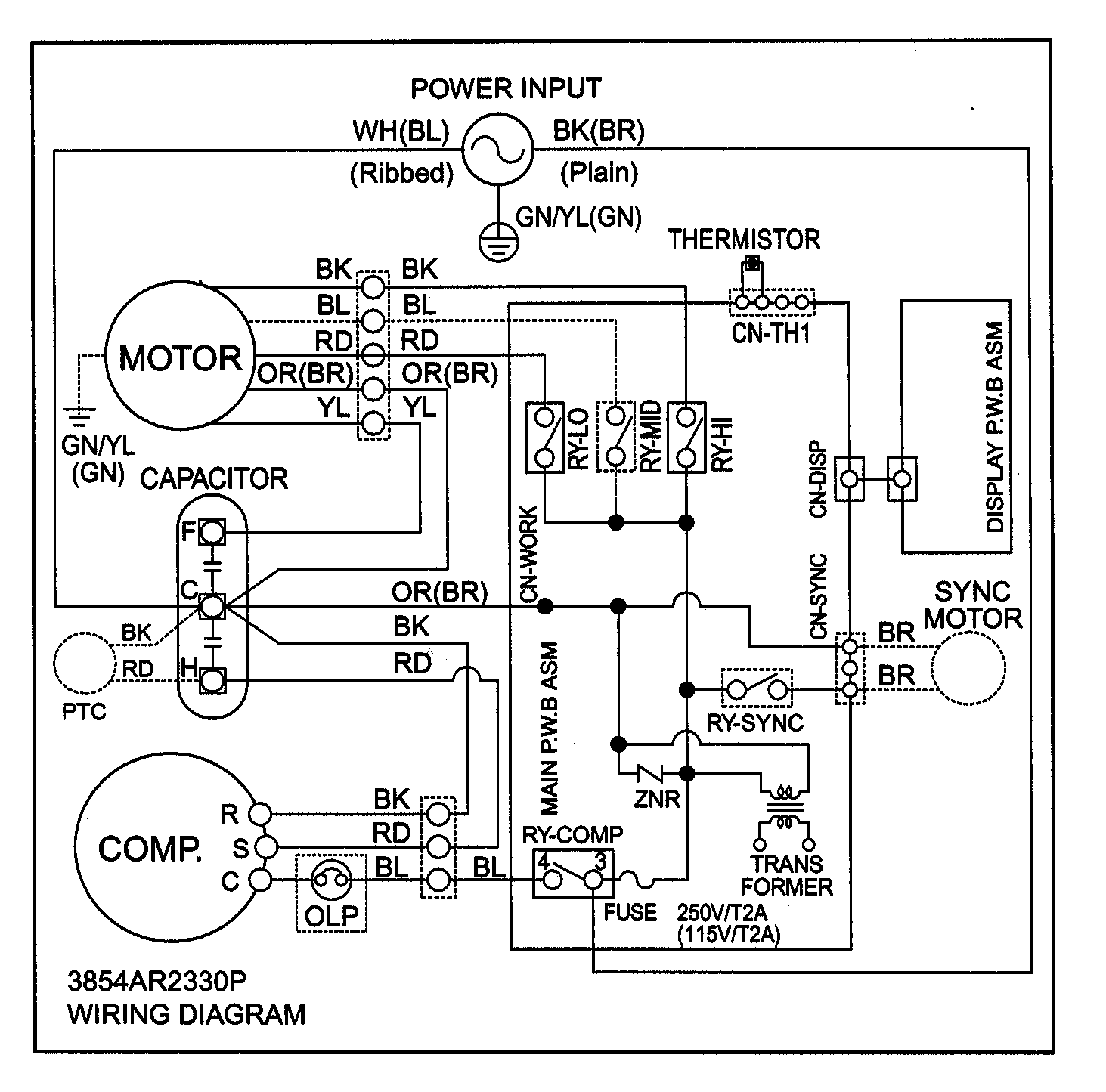

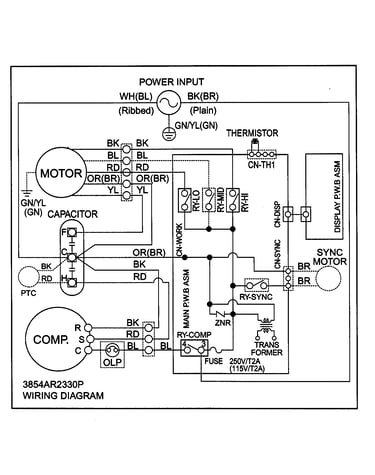

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Room Air Conditioner Fan Motor Capacitor (replaces Oczza20001n) 0CZZA20001N
#CZZ

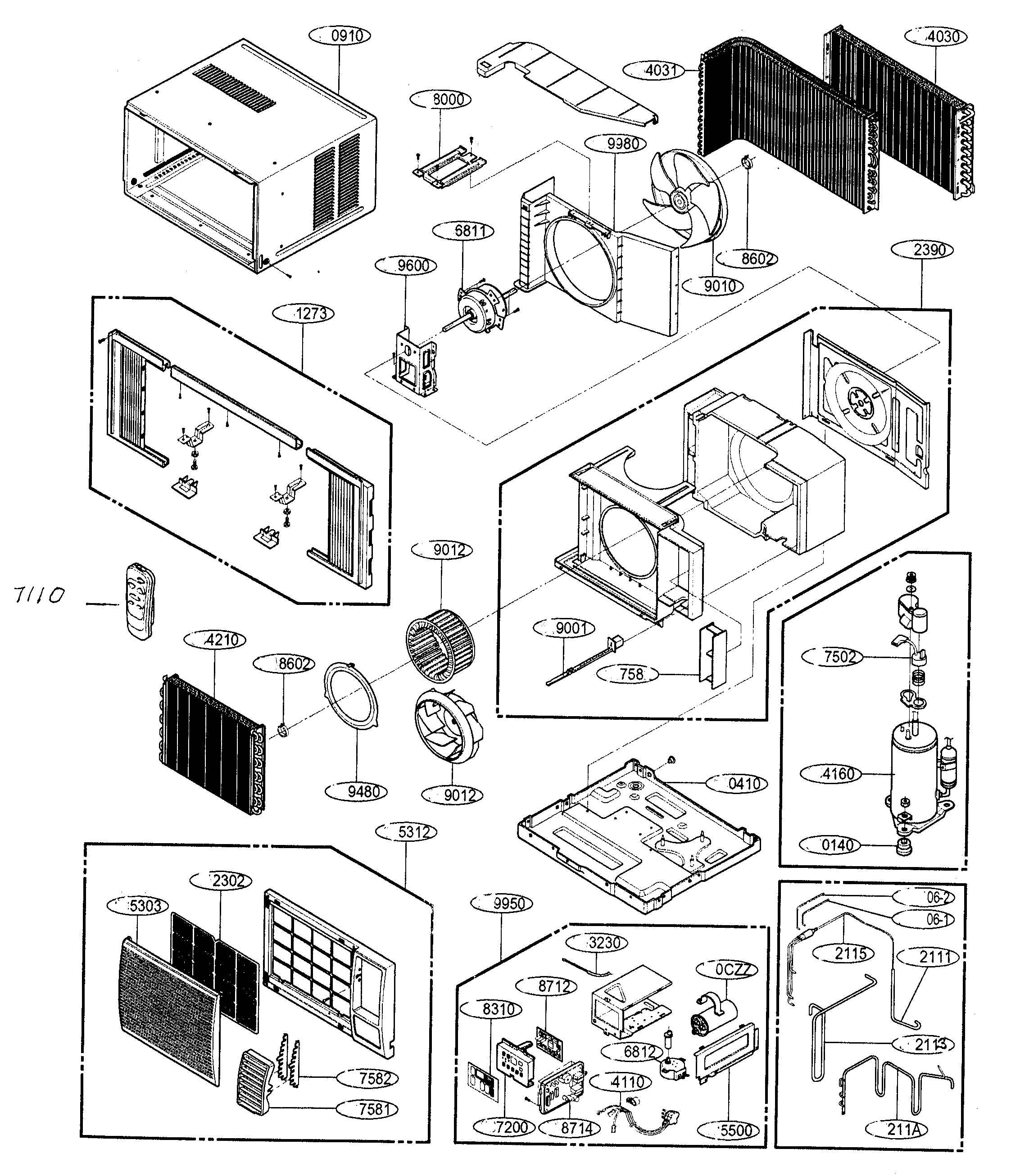

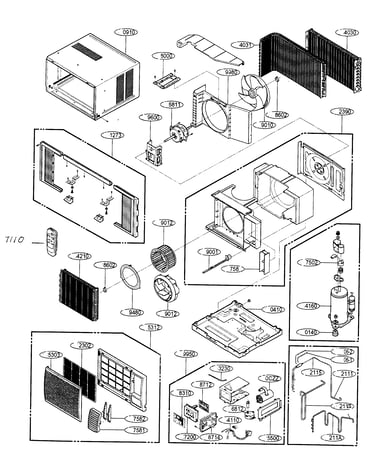

Cabinet parts diagram

Room air conditioner fan motor capacitor (replaces oczza20001n)

Part #0CZZA20001N

$33.61 |
15% OFF Phone Price : $39.61
In Stock
Thermistor 6323A20003D
#3230

Cabinet parts diagram

Thermistor

Part #6323A20003D

Replaced by #6323A20003S

?
Manufacturer substitution
This part replaces 6323A20003D. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Friedrich Brace 4800A30001A
#8000

Cabinet parts diagram

Friedrich brace

Part #4800A30001A

This item is not returnable
$7.00
In Stock
Tube Assembly 5211A30260F
#211B

Cabinet parts diagram

Tube assembly

Part #5211A30260F

$14.51
In Stock
Ac Power Cord Assembly 2H00677R
#4110

Cabinet parts diagram

Ac power cord assembly

Part #2H00677R

$40.87
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#8602

Cabinet parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Tube 5211AR3399A
#2111

Cabinet parts diagram

Tube

Part #5211AR3399A

$10.60
In Stock
Kenmore Motor Mount 4960A20014A
#9600

Cabinet parts diagram

Kenmore motor mount

Part #4960A20014A

$18.83
In Stock
Comfort-aire Shroud 4998A10010A
#9980

Cabinet parts diagram

Comfort-aire shroud

Part #4998A10010A

$20.46
In Stock
Comfort-aire Base Assembly 3041A30005P
#410

Cabinet parts diagram

Comfort-aire base assembly

Part #3041A30005P

$71.93
In Stock
