McCulloch
Gas Line Trimmer

Model # TITAN 2565AV 12-400064-06 Official McCulloch trimmer

Here are the diagrams and repair parts for Official McCulloch TITAN-2565AV-12-400064-06 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Grommet 215541
#94

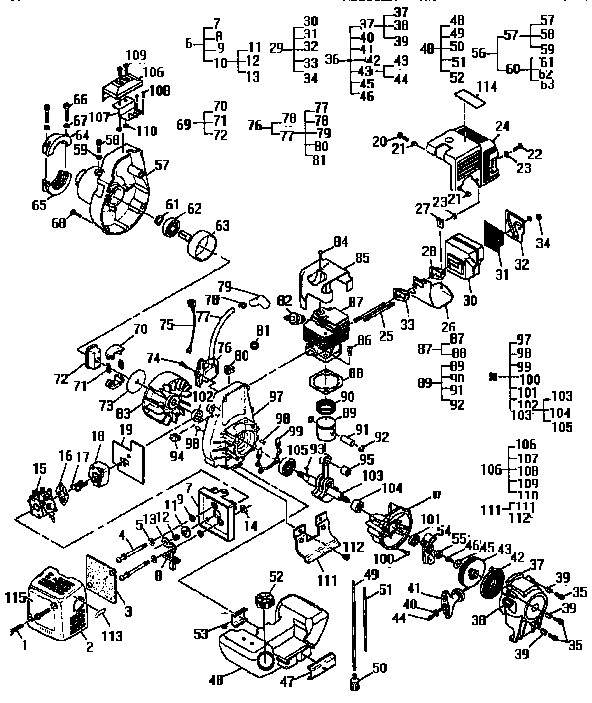

Engine asm diagram

Grommet

Part #215541

The manufacturer no longer makes this part, and there's no substitute part

Starter Assembly 224111
#36

Engine asm diagram

Starter assembly

Part #224111

The manufacturer no longer makes this part, and there's no substitute part

Starter Pawl 225037
#54

Engine asm diagram

Starter pawl

Part #225037

The manufacturer no longer makes this part, and there's no substitute part

Safety Decal 219030
#38

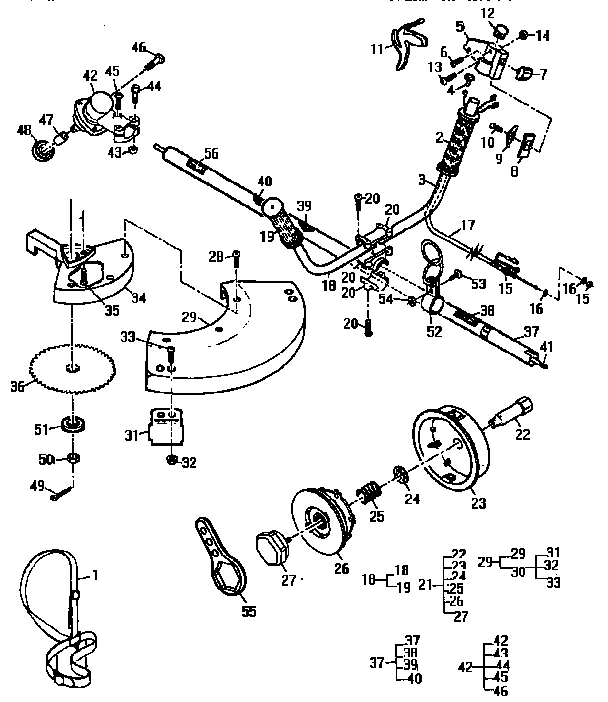

Shaft/shield/cutter asm diagram

Safety decal

Part #219030

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 216751
#50

Shaft/shield/cutter asm diagram

Hex nut

Part #216751

The manufacturer no longer makes this part, and there's no substitute part

Starter Housing 224110
#37

Engine asm diagram

Starter housing

Part #224110

The manufacturer no longer makes this part, and there's no substitute part

"c" Ring N/P
"c" ring

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Screw 219508
#20

Engine asm diagram

Screw

Part #219508

The manufacturer no longer makes this part, and there's no substitute part

Bar Asy, Han 216868-01
#18

Shaft/shield/cutter asm diagram

Bar asy, han

Part #216868-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 217320
Screw

Part #217320

The manufacturer no longer makes this part, and there's no substitute part
