Model # EE12350R045D Official American Water Heaters water heater

Here are the diagrams and repair parts for Official American Water Heaters EE12350R045D water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 14 parts |

Water Heater Electronic Control Board Kit 6910605

#14

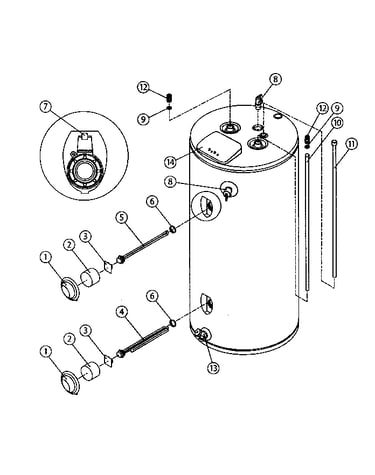

Water heater diagram

Water heater electronic control board kit

Part #6910605

Replaced by #100093769

This item is not returnable

$160.71 |

7% OFF Phone Price : $172.71

In Stock

Qty

#NI

Water heater diagram

Water heater thermistor kit

Part #6910545

Replaced by #100093745

$66.92 |

8% OFF Phone Price : $72.92

In Stock

Qty

Water heater diagram

Element

Part #6900386

Replaced by #100108290

$33.33

In Stock

Qty

#14A

Water heater diagram

Electronic cover

Part #2610110

Replaced by #100341931

This item is not returnable

$20.60 |

23% OFF Phone Price : $26.60

In Stock

Qty

#10

Water heater diagram

Water heater dip tube

Part #4710830

Replaced by #100089234

$25.71

In Stock

Qty

#13

Water heater diagram

Drain valve

Part #6900820

Replaced by #100108269

$18.57

In Stock

Qty

Water heater diagram

Element ga

Part #4400032

Replaced by #100108414

$21.43

In Stock

Qty

Water heater diagram

Temperature and pressure valve

Part #6900829

The manufacturer no longer makes this part, and there's no substitute part

#11

Water heater diagram

Water heater anode rod

Part #4710185

Replaced by #9005095205

$44.92 |

12% OFF Phone Price : $50.92

Back Order

Qty

Water heater diagram

Lower element

Part #6900397

Replaced by #100287290

$35.56

In Stock

Qty
