Model # S3527 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3527 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

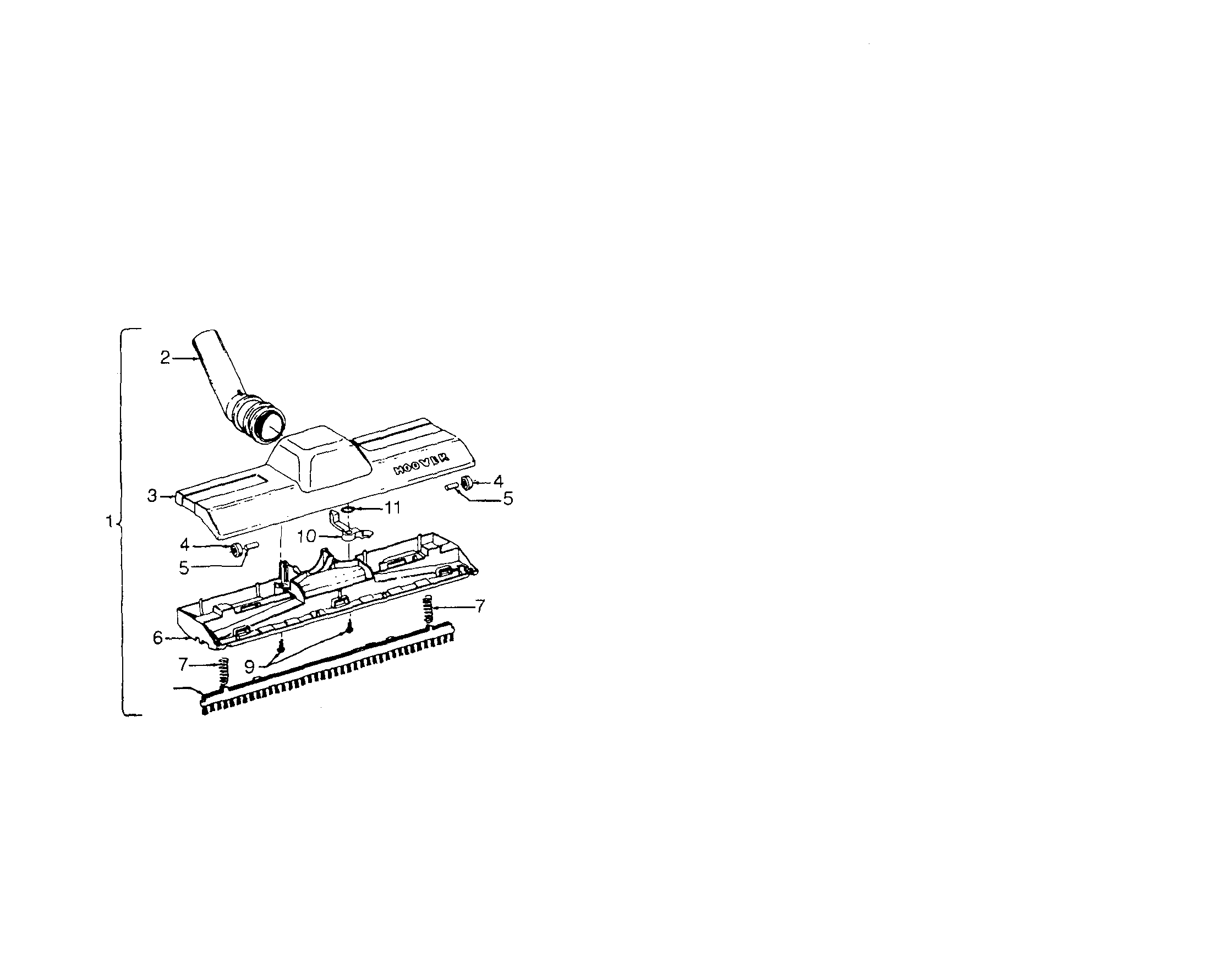

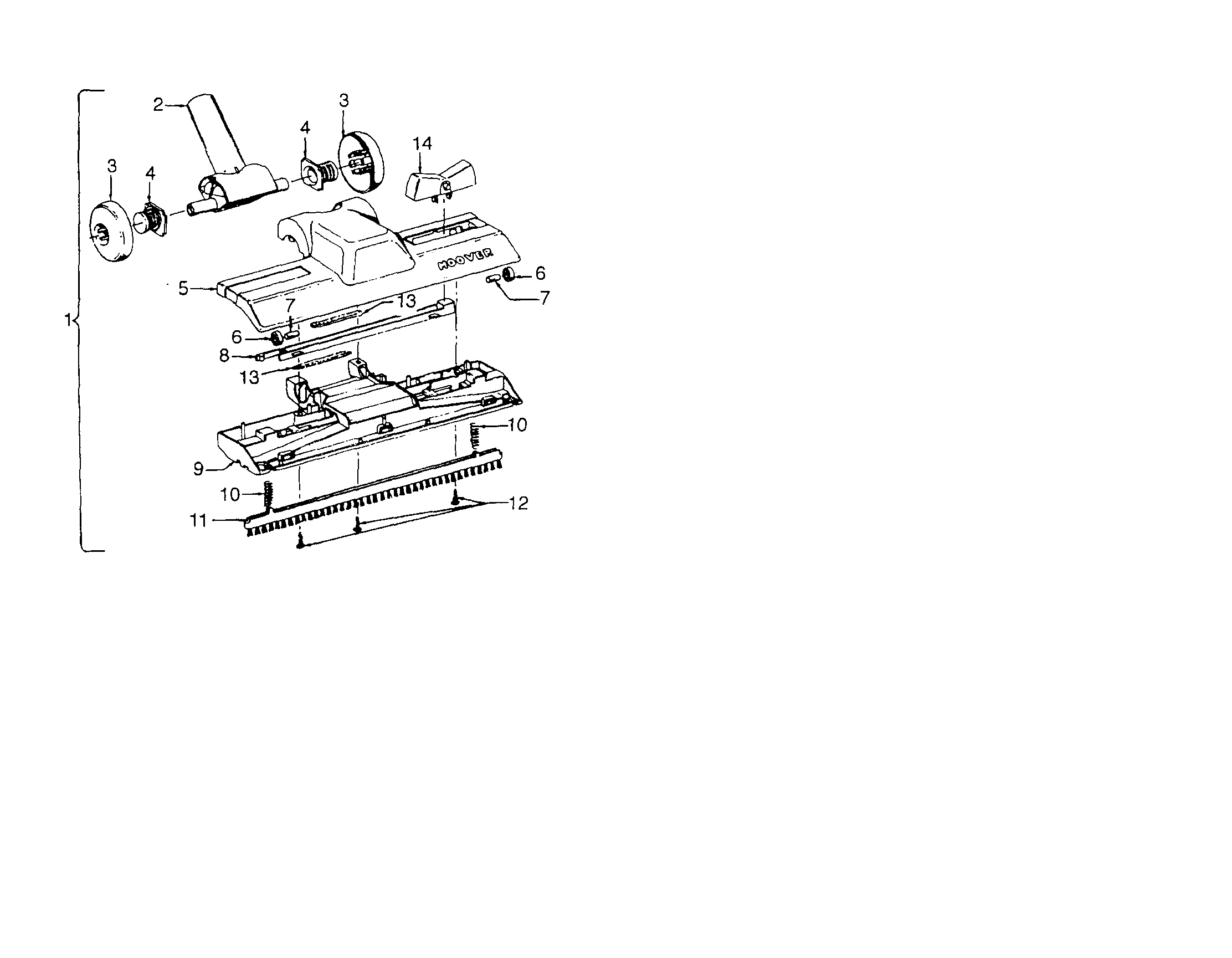

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

Lid Hinge Bag 36151027
#20

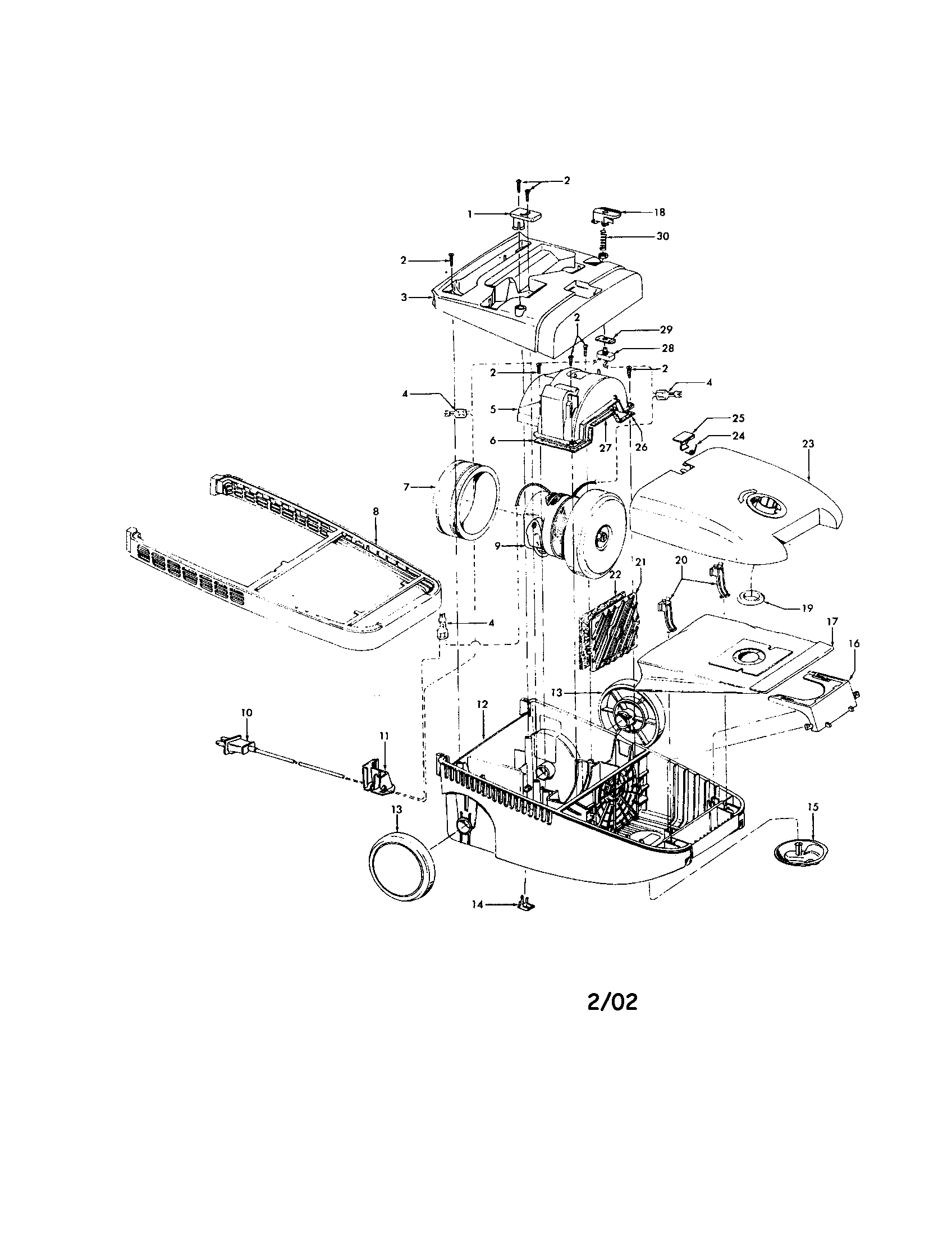

Base and housing diagram

Lid hinge bag

Part #36151027

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 38765009
#22

Base and housing diagram

Vacuum motor safety filter

Part #38765009

The manufacturer no longer makes this part, and there's no substitute part

Wire Connector 27618508
#4A

Base and housing diagram

Wire connector

Part #27618508

The manufacturer no longer makes this part, and there's no substitute part

Field Coil 45311048
#19

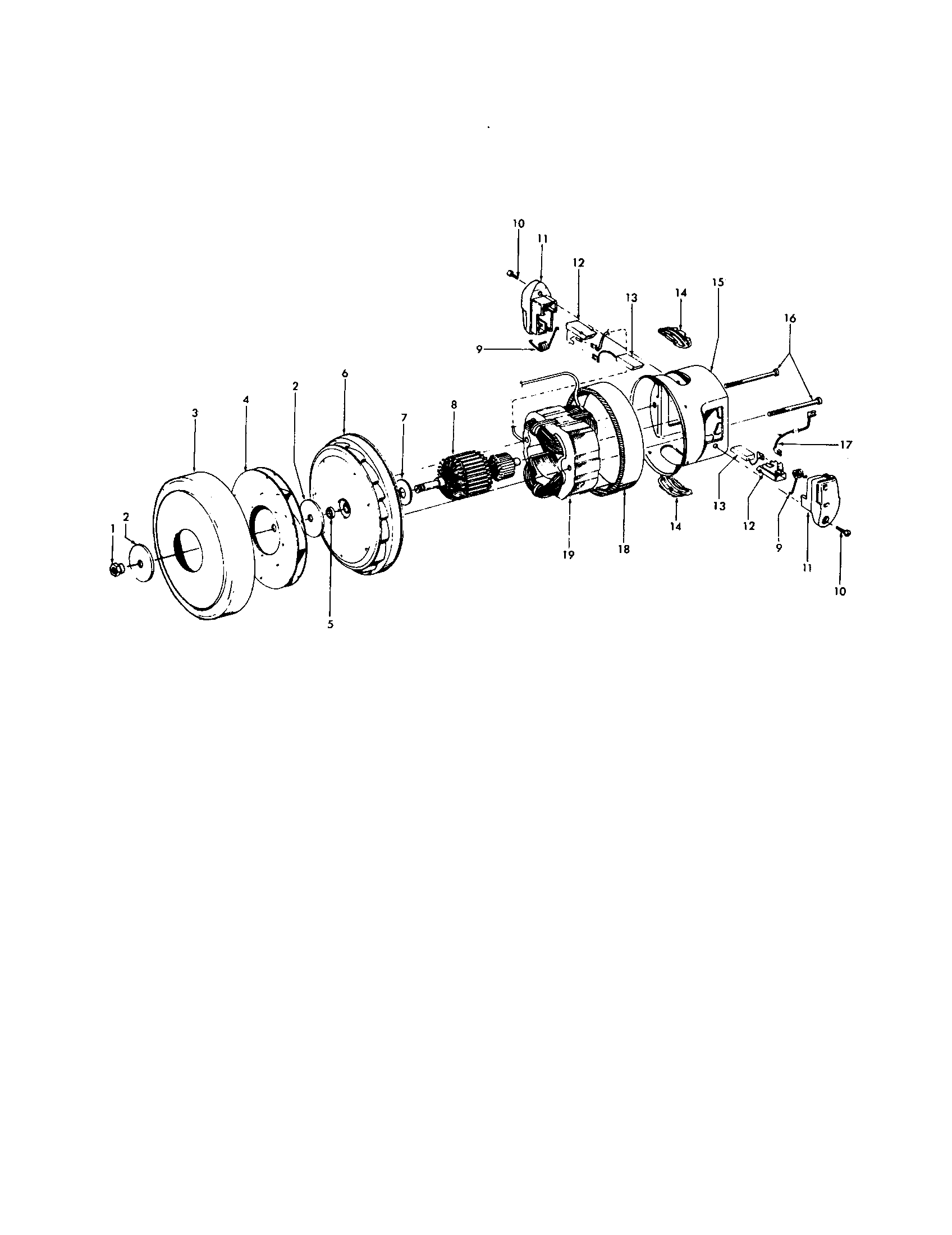

Motor assembly diagram

Field coil

Part #45311048

The manufacturer no longer makes this part, and there's no substitute part

Diffuser 43551030
#6

Motor assembly diagram

Diffuser

Part #43551030

The manufacturer no longer makes this part, and there's no substitute part

Fan 43551008
#4

Motor assembly diagram

Fan

Part #43551008

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 37196065
#3

Motor assembly diagram

Fan cover

Part #37196065

The manufacturer no longer makes this part, and there's no substitute part

Spring 38353004
#9

Motor assembly diagram

Spring

Part #38353004

The manufacturer no longer makes this part, and there's no substitute part

Wrap 39442034
#1

Base and housing diagram

Wrap

Part #39442034

The manufacturer no longer makes this part, and there's no substitute part

Mounting Plate 34135014
#29

Base and housing diagram

Mounting plate

Part #34135014

The manufacturer no longer makes this part, and there's no substitute part
