Tecumseh
Lawn & Garden Engine

Model # A THRU ZZR6 Official Tecumseh 2-cycle engine

Here are the diagrams and repair parts for Official Tecumseh A-THRU-ZZR6 2-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

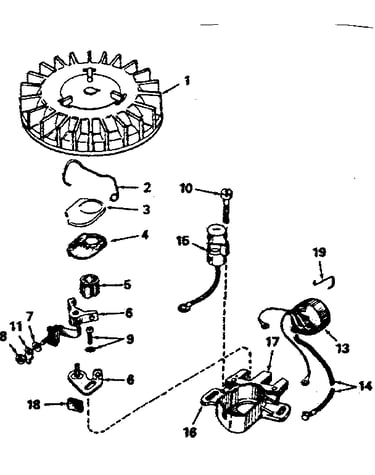

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Spark Plug 34251
#16A

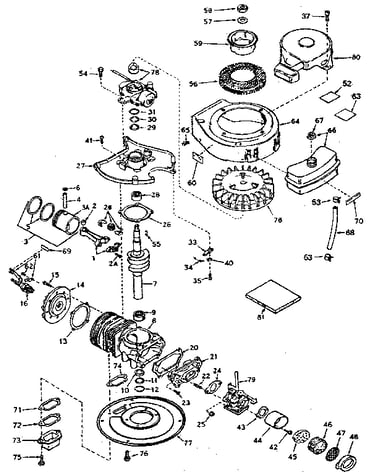

Unit parts diagram

Spark plug

Part #34251

The manufacturer no longer makes this part, and there's no substitute part

Fuel Line 29774
#68

Unit parts diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Spring 631767
#2

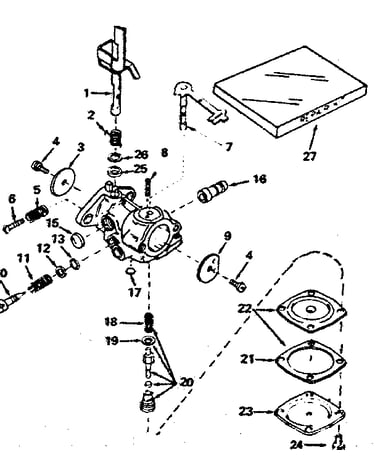

Carburetor diagram

Spring

Part #631767

The manufacturer no longer makes this part, and there's no substitute part

/fuel Clamp 26460
#53

Unit parts diagram

/fuel clamp

Part #26460

The manufacturer no longer makes this part, and there's no substitute part

Diap/gaskt 630978
#22

Carburetor diagram

Diap/gaskt

Part #630978

The manufacturer no longer makes this part, and there's no substitute part

Seal 510105
#29

Unit parts diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#8

Carburetor diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Crankshaft Seal Retainer 510106A
#30

Unit parts diagram

Lawn & garden equipment engine crankshaft seal retainer

Part #510106A

The manufacturer no longer makes this part, and there's no substitute part

Washer 630739
#12

Carburetor diagram

Washer

Part #630739

The manufacturer no longer makes this part, and there's no substitute part

Cover 630751
#23

Carburetor diagram

Cover

Part #630751

The manufacturer no longer makes this part, and there's no substitute part
