Dacor
Warming Drawer

Model # EWD30B Official Dacor warming drawer

Here are the diagrams and repair parts for Official Dacor EWD30B warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |

Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
In Stock
Appliance Screw 83534
#11

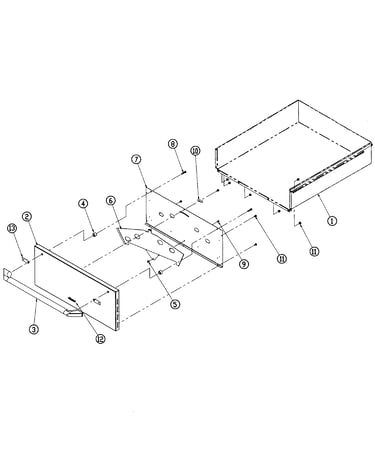

Drawer assy diagram

Appliance screw

Part #83534

This item is not returnable
Back Order
Hex Nut #8 83048
#9

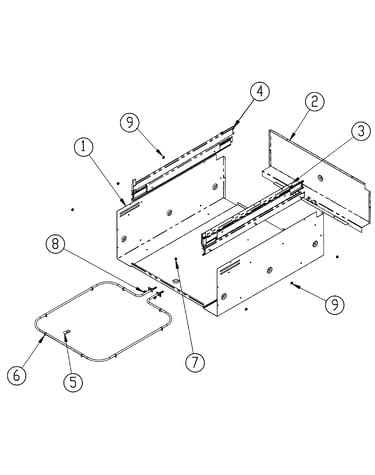

Chassis wrap diagram

Hex nut #8

Part #83048

This item is not returnable
In Stock
Clip Holder 102321
#5

Chassis wrap diagram

Clip holder

Part #102321

This item is not returnable
In Stock
Control Panel 701119-03
#NI

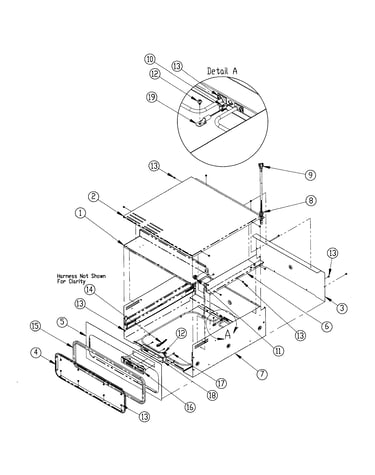

Chassis assy diagram

Control panel

Part #701119-03

In Stock
Control Kit 701120
#NI

Chassis assy diagram

Control kit

Part #701120

In Stock
Spacer, Do 92008
#13

Drawer assy diagram

Spacer, do

Part #92008

This item is not returnable
In Stock
Wall Oven Nameplate 72510CH
#12

Drawer assy diagram

Wall oven nameplate

Part #72510CH

In Stock
Wrap Chass 101883-03
#1

Chassis wrap diagram

Wrap chass

Part #101883-03

In Stock
Rear Cover 101657-03
#3

Chassis assy diagram

Rear cover

Part #101657-03

In Stock
