Model # U5154-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5154-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |

Drive Bag Housing 37254257
#27A

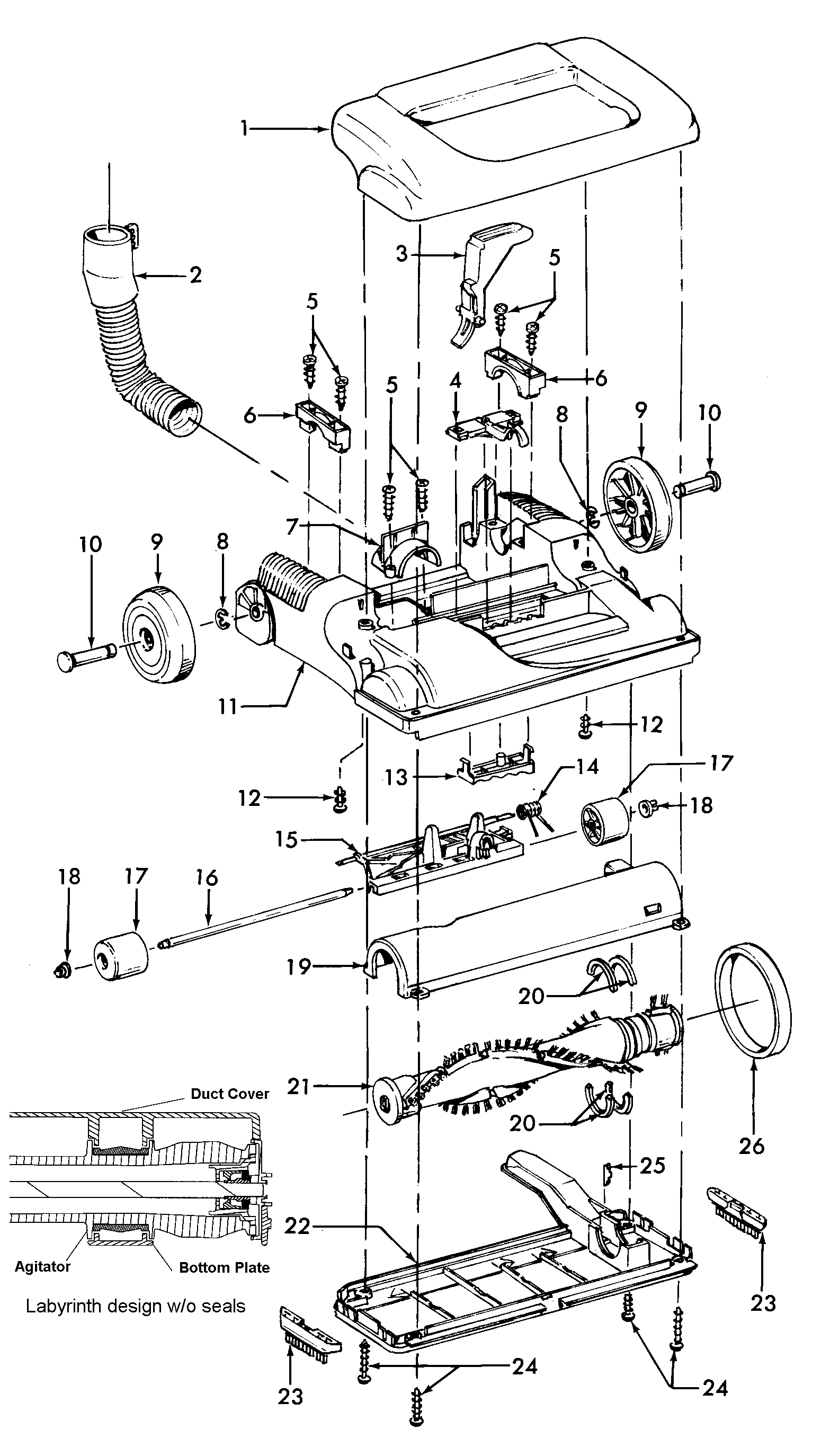

Agitator, mainbody, hood diagram

Drive bag housing

Part #37254257

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Fltr Scren 36426053
#45

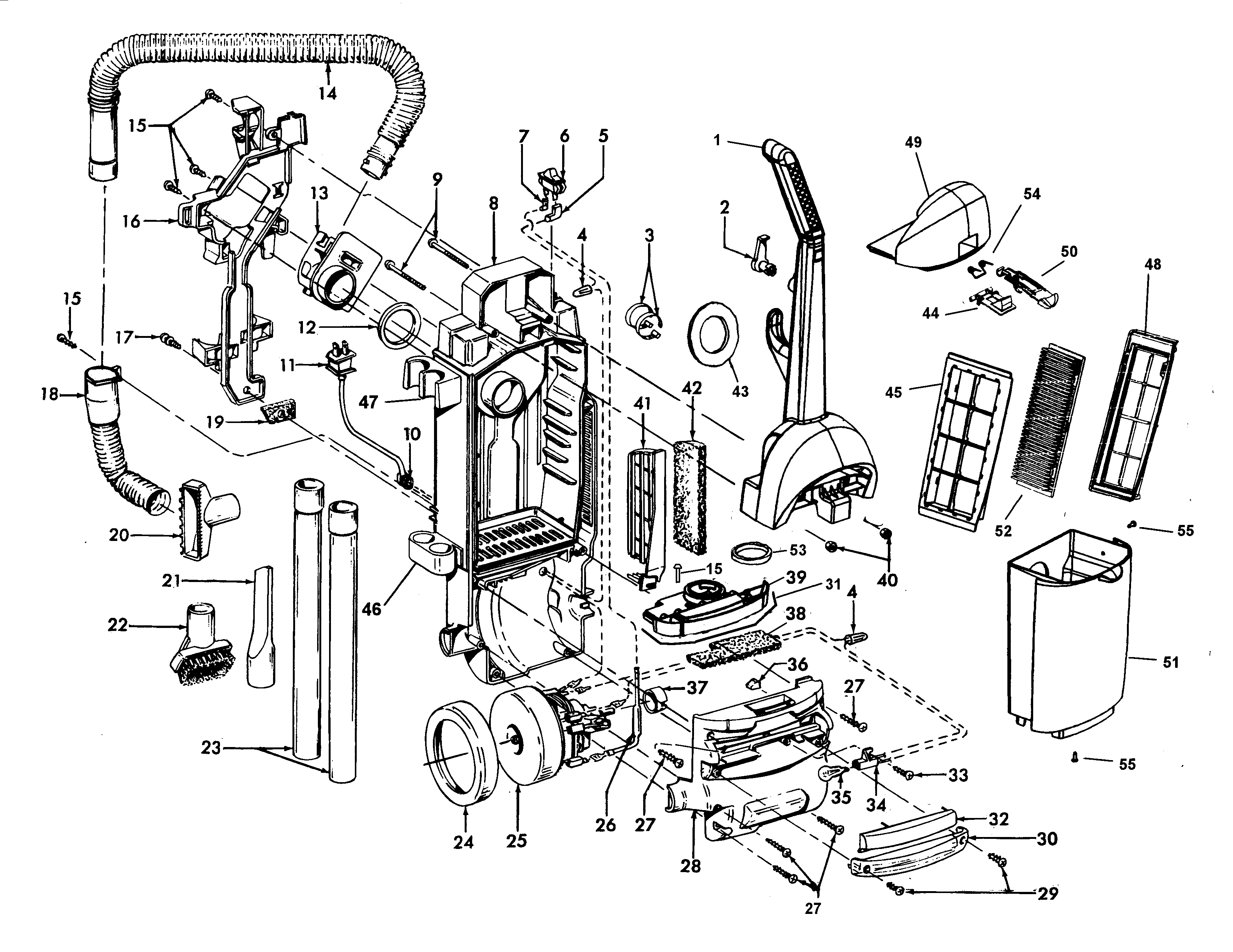

Motor, hose, cleaningtools, handle diagram

Fltr scren

Part #36426053

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord 46383334
#11

Motor, hose, cleaningtools, handle diagram

Vacuum power cord

Part #46383334

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528033
#26

Agitator, mainbody, hood diagram

Vacuum beater bar belt

Part #38528033

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Screw 23149002
#17

Motor, hose, cleaningtools, handle diagram

Regina carpet cleaner screw

Part #23149002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#14

Agitator, mainbody, hood diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Cover 37253429
#1f

Agitator, mainbody, hood diagram

Cover

Part #37253429

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw And Nut 40201149
Vacuum screw and nut

Part #40201149

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mount 36322030
#37

Motor, hose, cleaningtools, handle diagram

Vacuum motor mount

Part #36322030

The manufacturer no longer makes this part, and there's no substitute part
