Model # NDF125J20A1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NDF125J20A1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Module Ignition Control Board 1011449
#6A

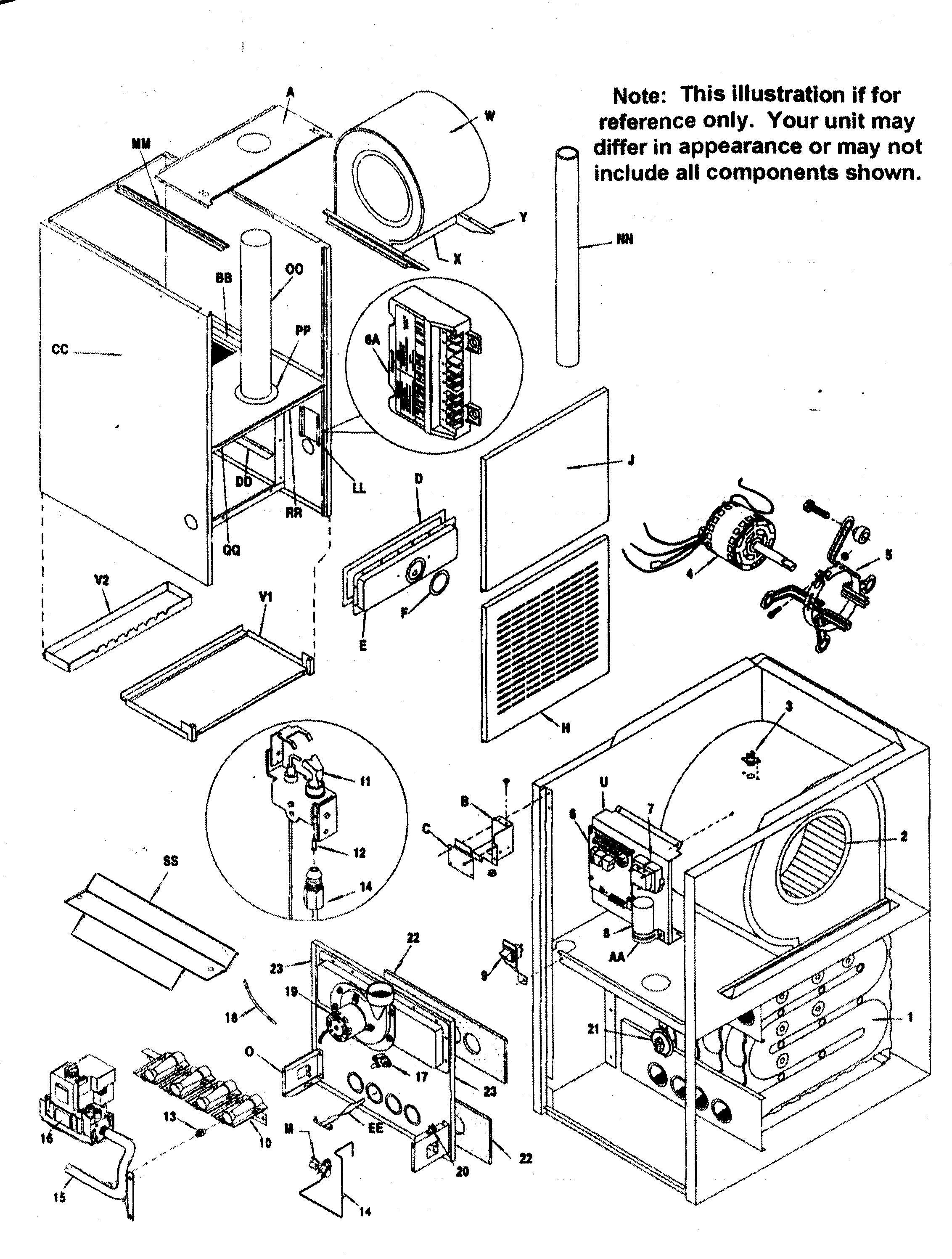

Cabinet parts diagram

Module ignition control board

Part #1011449

The manufacturer no longer makes this part, and there's no substitute part

Cap Rnrd 1094956
#8

Cabinet parts diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Board 1011927
#6

Cabinet parts diagram

Board

Part #1011927

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1011927. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Sw Lmt T Ror 1320368
#3

Cabinet parts diagram

Sw lmt t ror

Part #1320368

$92.47
In Stock
Furnace Burner 1008726
#10

Cabinet parts diagram

Furnace burner

Part #1008726

$142.32
In Stock
Clamp Capctr 1095020
#AA

Cabinet parts diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#2

Cabinet parts diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
7% OFF Phone Price : $172.43
In Stock
Panel Frnt 1012411
#23

Cabinet parts diagram

Panel frnt

Part #1012411

$708.00
In Stock
Conv Kit 1160992
#NI

Cabinet parts diagram

Conv kit

Part #1160992

$103.50
In Stock
Panel Cutoff 721020008
#X

Cabinet parts diagram

Panel cutoff

Part #721020008

$252.09
In Stock
