Kenmore
Room Air Conditioner

Model # 58075062500 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075062500 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Room Air Conditioner Fan Blade Clamp 3H02932B
#12-A

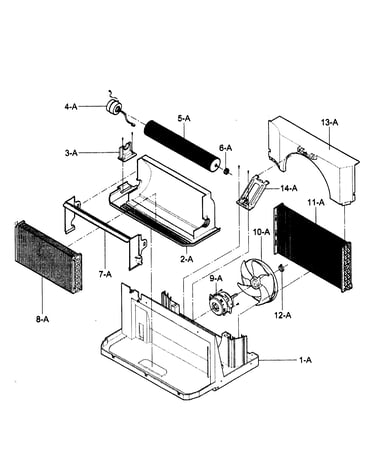

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Capacitor 6120AR2359V
#12-C

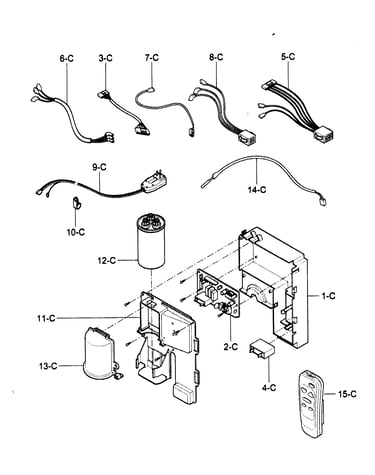

Control box assy diagram

Capacitor

Part #6120AR2359V

Replaced by #0CZZA20005B

?
Manufacturer substitution
This part replaces 6120AR2359V. Substitute parts can look different from the original.
$29.57 |
17% OFF Phone Price : $35.57
In Stock
Friedrich Room Air Conditioner Compressor Grommet 5040AR4195A
#1-D

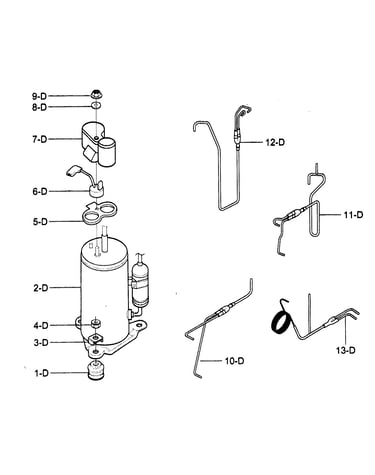

Compressor parts diagram

Friedrich room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable
$4.51
In Stock
Louver 4758A30037A
#15-B

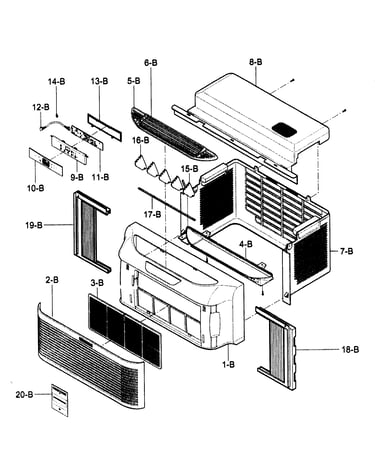

Cabinet/front grille assy diagram

Louver

Part #4758A30037A

This item is not returnable
$4.51
In Stock
Kenmore Label 3850A21286V
#20-B

Cabinet/front grille assy diagram

Kenmore label

Part #3850A21286V

This item is not returnable
$2.16
In Stock
Brkt,wshr 4810AR4155A
#3-D

Compressor parts diagram

Brkt,wshr

Part #4810AR4155A

This item is not returnable
$4.51
In Stock
Connector 6631A30027B
#6-C

Control box assy diagram

Connector

Part #6631A30027B

$18.83
In Stock
Goldstar Room Air Conditioner Window Lock Bracket 4H01785B
#4-E

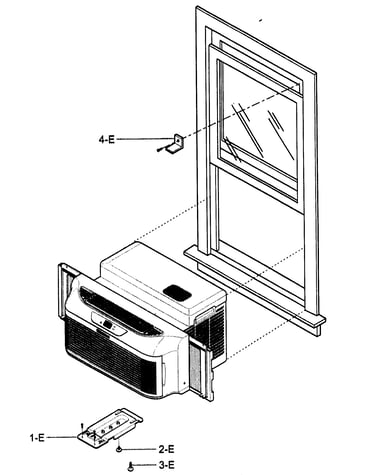

Installation kit assy/remote diagram

Goldstar room air conditioner window lock bracket

Part #4H01785B

This item is not returnable
$4.06 |
20% OFF Phone Price : $5.06
In Stock
Hex Nut 1NHA0801206
#4-D

Compressor parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
Capacitor 3A02157J
#4-C

Control box assy diagram

Capacitor

Part #3A02157J

$14.51
In Stock
