Model # WAK107P1V2 Official White-Westinghouse room air conditioner - 5995250247

Here are the diagrams and repair parts for Official White-Westinghouse WAK107P1V2 room air conditioner - 5995250247, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Plate 309604401
#23

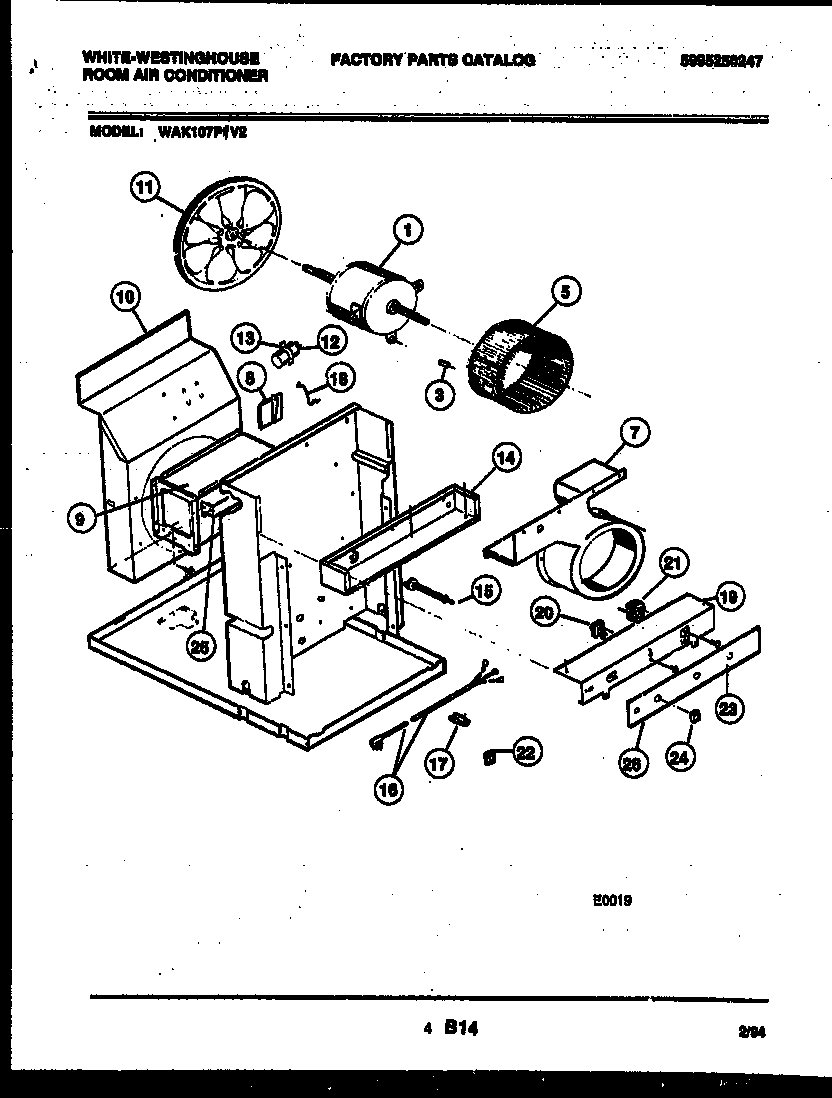

Electrical and air handling parts diagram

Plate

Part #309604401

$14.49
In Stock

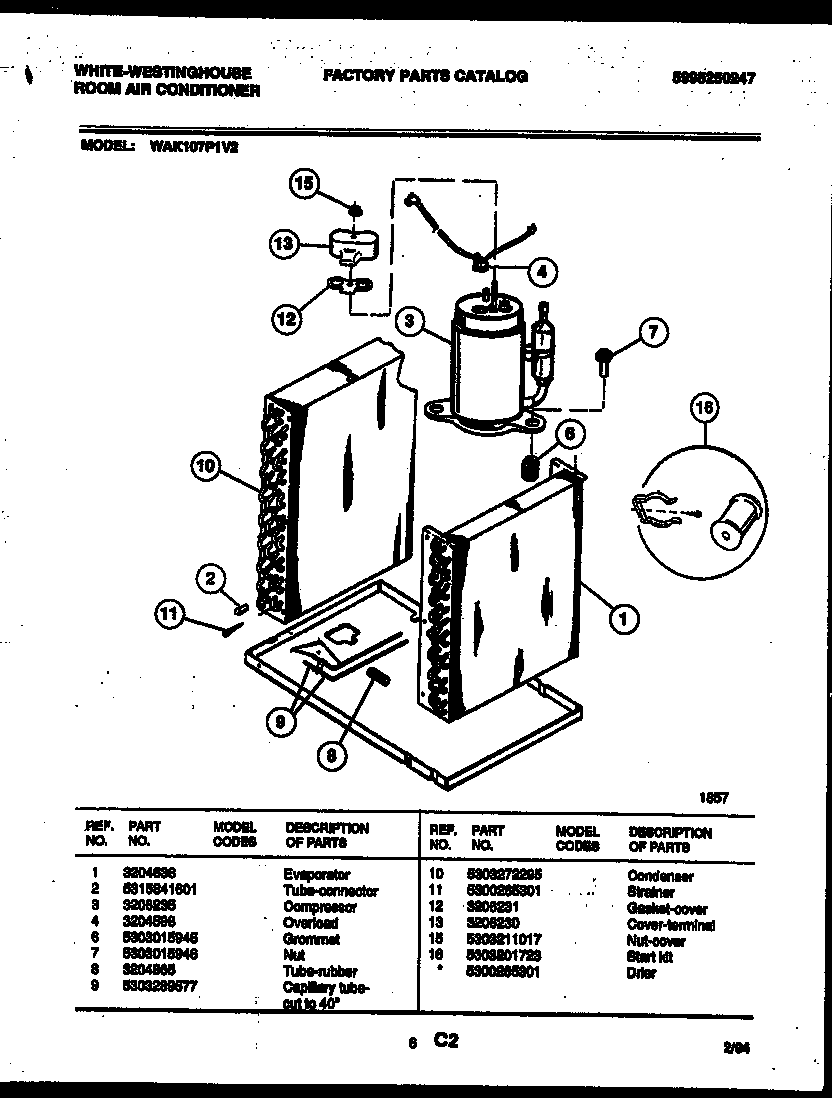

Westinghouse Room Air Conditioner Filter Dryer 5300265301
Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Kelvinator Clamp 5308047464
#17

Electrical and air handling parts diagram

Kelvinator clamp

Part #5308047464

This item is not returnable
$2.29
In Stock
Control Box 08047431
#14

Electrical and air handling parts diagram

Control box

Part #08047431

$21.99
In Stock
Cap Strap 3001850
#13

Electrical and air handling parts diagram

Cap strap

Part #3001850

This item is not returnable
$2.29
In Stock
Spacer 5303211009
#22

Electrical and air handling parts diagram

Spacer

Part #5303211009

This item is not returnable
$3.24
In Stock
Screw 3202975
#3

Electrical and air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Baffle 3001849
#25

Electrical and air handling parts diagram

Baffle

Part #3001849

The manufacturer no longer makes this part, and there's no substitute part

Mounting Plate 5303302872
#22

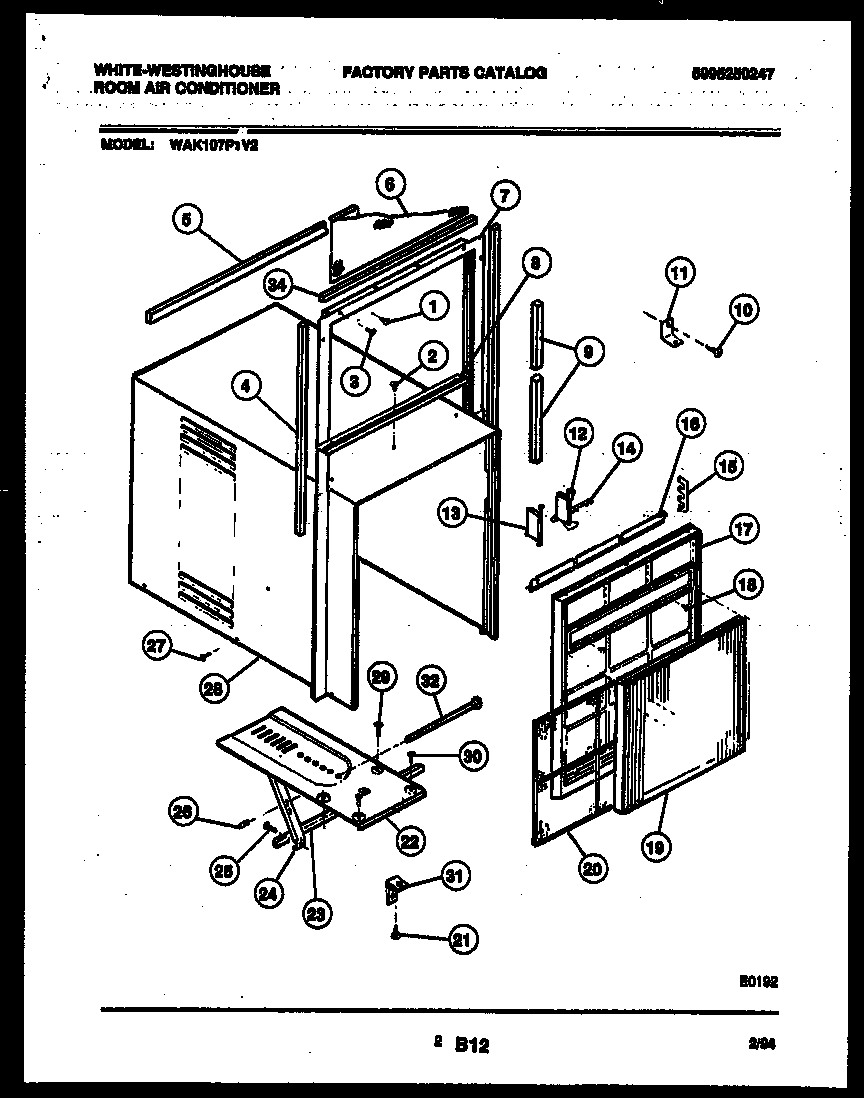

Cabinet parts diagram

Mounting plate

Part #5303302872

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 5303272313
#11

Electrical and air handling parts diagram

Fan blade

Part #5303272313

The manufacturer no longer makes this part, and there's no substitute part
