Kenmore
Canister Vacuum

Model # 1163289390C Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1163289390C vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Connector 4148552
#41

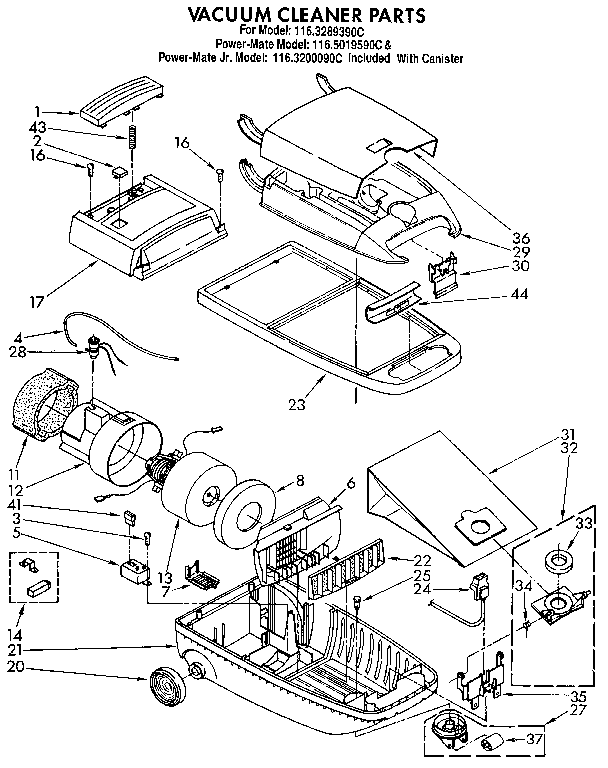

Base assembly diagram

Connector

Part #4148552

Replaced by #WP62889

?
Manufacturer substitution
This part replaces 4148552. Substitute parts can look different from the original.
This item is not returnable
$5.90 |
14% OFF Phone Price : $6.90
In Stock
Hose 4368989
#1

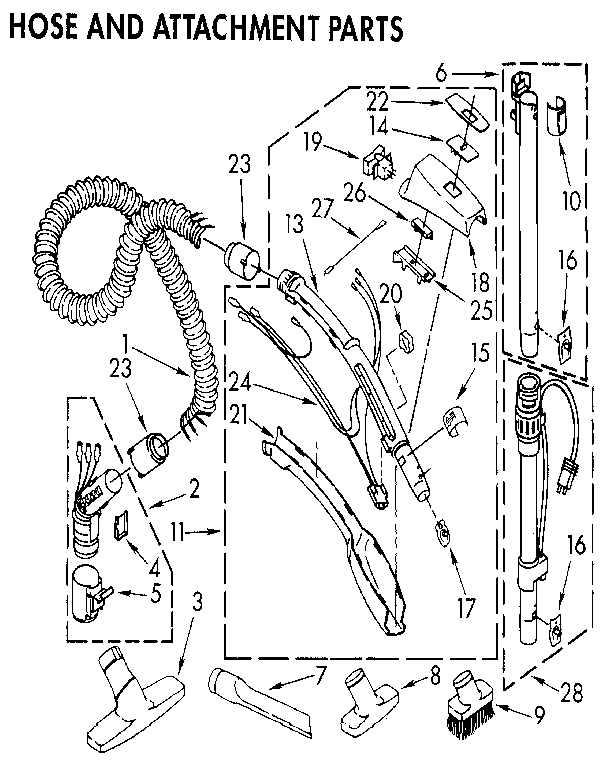

Hose assembly diagram

Hose

Part #4368989

Replaced by #4369467

?
Manufacturer substitution
This part replaces 4368989. Substitute parts can look different from the original.
$36.50 |
14% OFF Phone Price : $42.50
In Stock
Bag, Dust (sears No, 20-50555)(available At Any Sears Retail Or Catalog Store) 4156140
#31

Base assembly diagram

Bag, dust (sears no, 20-50555)(available at any sears retail or catalog store)

Part #4156140

The manufacturer no longer makes this part, and there's no substitute part

Filtr-sfty 4152969
#22

Base assembly diagram

Filtr-sfty

Part #4152969

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 747151
#3

Hose assembly diagram

Vacuum beater bar

Part #747151

The manufacturer no longer makes this part, and there's no substitute part

Label, Wiring Diagram (french) LIT4156196

#NI

All parts diagram

Label, wiring diagram (french)

Part #LIT4156196

The manufacturer no longer makes this part, and there's no substitute part

Bracket 4148826
#25

Hose assembly diagram

Bracket

Part #4148826

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Housing 4151995
#21

Hose assembly diagram

Vacuum housing

Part #4151995

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster 4153295
#27

Base assembly diagram

Vacuum caster

Part #4153295

The manufacturer no longer makes this part, and there's no substitute part

Spring 744258
#43

Base assembly diagram

Spring

Part #744258

The manufacturer no longer makes this part, and there's no substitute part
