Gibson
Room Air Conditioner

Model # AK09B6ERBC Official Gibson room air conditioner - lg34087110

Here are the diagrams and repair parts for Official Gibson AK09B6ERBC room air conditioner - lg34087110, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Filter G84701
#25

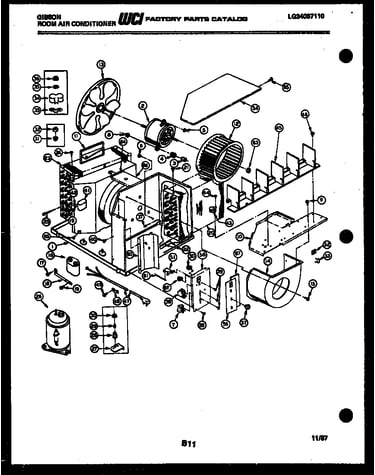

Electrical and air handling parts diagram

Filter

Part #G84701

Replaced by #5300265301

?
Manufacturer substitution
This part replaces G84701. Substitute parts can look different from the original.
$212.62
In Stock
Nut G515926
#36

Electrical and air handling parts diagram

Nut

Part #G515926

This item is not returnable
$2.16
In Stock
Compressor G518634-01
#26

Electrical and air handling parts diagram

Compressor

Part #G518634-01

Replaced by #5351863401

?
Manufacturer substitution
This part replaces G518634-01. Substitute parts can look different from the original.
$190.99
In Stock
Angle G145575
#10

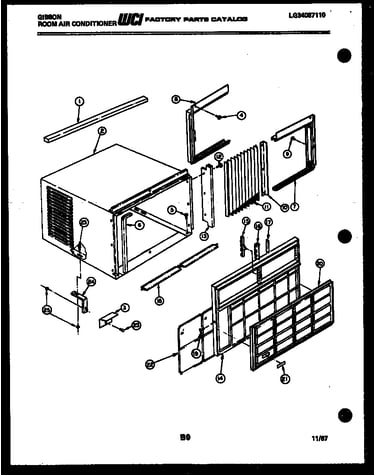

Cabinet parts diagram

Angle

Part #G145575

Replaced by #5300145575

?
Manufacturer substitution
This part replaces G145575. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Screw G516353
Screw

Part #G516353

The manufacturer no longer makes this part, and there's no substitute part

Capacitor G508501-03
#41

Electrical and air handling parts diagram

Capacitor

Part #G508501-03

The manufacturer no longer makes this part, and there's no substitute part

Motor G149683-13
#43

Electrical and air handling parts diagram

Motor

Part #G149683-13

The manufacturer no longer makes this part, and there's no substitute part

Spacr-comp Mtg (3) G508207
#26A

Electrical and air handling parts diagram

Spacr-comp mtg (3)

Part #G508207

The manufacturer no longer makes this part, and there's no substitute part

Screw G516356
#17

Electrical and air handling parts diagram

Screw

Part #G516356

The manufacturer no longer makes this part, and there's no substitute part

Switch G518179
#62

Electrical and air handling parts diagram

Switch

Part #G518179

The manufacturer no longer makes this part, and there's no substitute part
