Central Air Conditioner

Model # 867814600 Official Sears heat pump

Here are the diagrams and repair parts for Official Sears 867814600 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Contactor 1054736
#19B

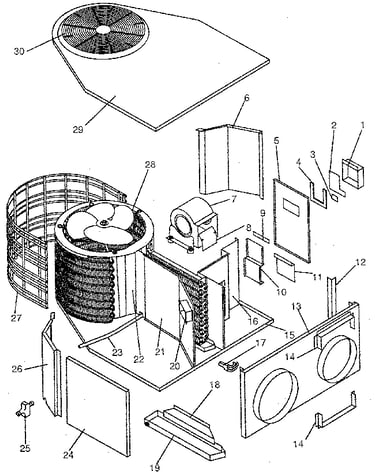

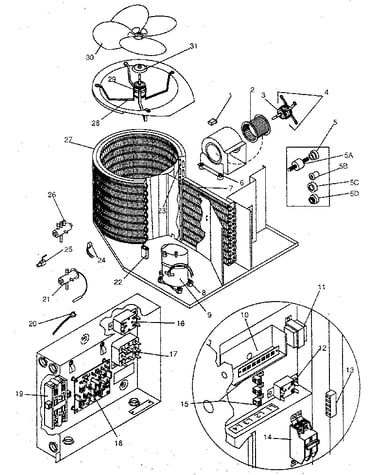

Functional replacement parts diagram

Contactor

Part #1054736

The manufacturer no longer makes this part, and there's no substitute part

Contactor 1054735
#19A

Functional replacement parts diagram

Contactor

Part #1054735

The manufacturer no longer makes this part, and there's no substitute part

Motor 1057707
#29

Functional replacement parts diagram

Motor

Part #1057707

Replaced by #WG840465

?
Manufacturer substitution
This part replaces 1057707. Substitute parts can look different from the original.
BEST SELLER
$150.11
In Stock
Motor 710888
#3A

Functional replacement parts diagram

Motor

Part #710888

Replaced by #45461

?
Manufacturer substitution
This part replaces 710888. Substitute parts can look different from the original.
BEST SELLER
$207.04
In Stock
Moto 710889
#3B

Functional replacement parts diagram

Moto

Part #710889

Replaced by #45461

?
Manufacturer substitution
This part replaces 710889. Substitute parts can look different from the original.
BEST SELLER
$207.04
In Stock
Outlet Grille 1057353
#30

Non-functional replacement parts diagram

Outlet grille

Part #1057353

Replaced by #512848

?
Manufacturer substitution
This part replaces 1057353. Substitute parts can look different from the original.
$164.46 |
7% OFF Phone Price : $176.46
In Stock
Spst Relay 1053004
#16

Functional replacement parts diagram

Spst relay

Part #1053004

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 707222
#30B

Functional replacement parts diagram

Fan blade

Part #707222

Replaced by #1080764

?
Manufacturer substitution
This part replaces 707222. Substitute parts can look different from the original.
$80.17
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#4B

Functional replacement parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Central Air Conditioner Thermal Expansion Valve 707474
#21C

Functional replacement parts diagram

Central air conditioner thermal expansion valve

Part #707474

$141.36
In Stock
