Model # 143391022 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143391022 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

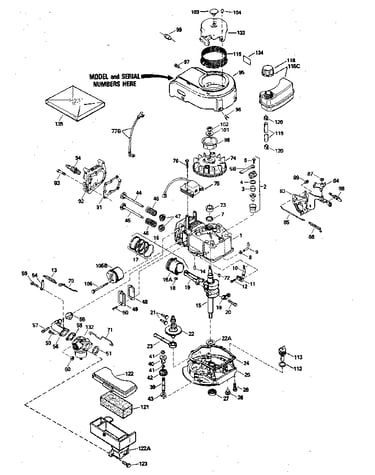

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Lawn Mower O-ring 631028
#29

Carburetor 632046a diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Needle Seat 631021
#30

Carburetor 632046a diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
In Stock
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
#9

Rewind starter diagram

Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lamination 34443A
#75

Replacement parts diagram

Lamination

Part #34443A

Replaced by #34443D

?
Manufacturer substitution
This part replaces 34443A. Substitute parts can look different from the original.
BEST SELLER
$45.43 |
12% OFF Phone Price : $51.43
In Stock
Line 34357
#119

Replacement parts diagram

Line

Part #34357

Replaced by #29774

?
Manufacturer substitution
This part replaces 34357. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Troybilt Lawn & Garden Equipment Engine Air Filter Collar Gasket 34338
#51

Replacement parts diagram

Troybilt lawn & garden equipment engine air filter collar gasket

Part #34338

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Float 632019
#28

Carburetor 632046a diagram

Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Troybilt Lawn & Garden Equipment Engine Oil Seal 27897
#27

Replacement parts diagram

Troybilt lawn & garden equipment engine oil seal

Part #27897

This item is not returnable
$7.02 |
12% OFF Phone Price : $8.02
In Stock
Primer Assembly 632047
#35

Carburetor 632046a diagram

Primer assembly

Part #632047

Replaced by #632047A

?
Manufacturer substitution
This part replaces 632047. Substitute parts can look different from the original.
This item is not returnable
$3.55
In Stock
Lawn & Garden Equipment Throttle Shaft Return Spring (replaces 630731, 631279, 631279a, 631279l, 632016) 631767
#2

Carburetor 632046a diagram

Lawn & garden equipment throttle shaft return spring (replaces 630731, 631279, 631279a, 631279l, 632016)

Part #631767

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
