Model # CAR8WRK0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool CAR8WRK0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Valve Kit 978025
#6A

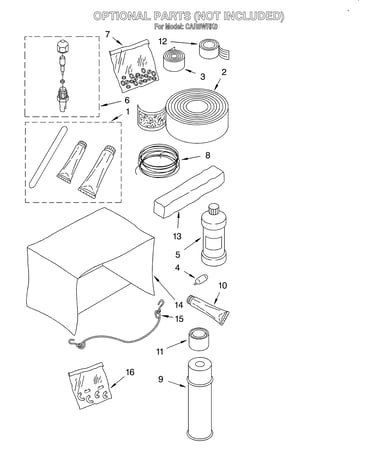

Optional diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Screw 3196160
#7

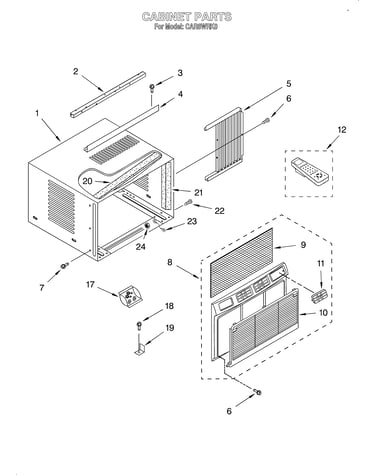

Cabinet diagram

Screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Sealer 212643
#12

Optional diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Seal 859600
#36

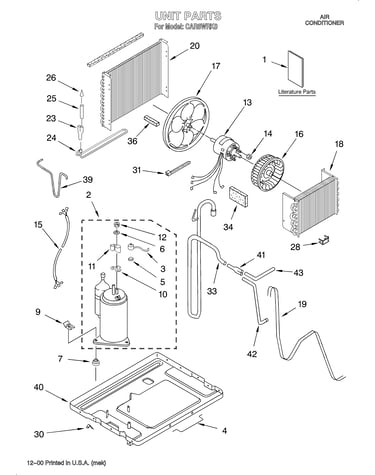

Unit/literature diagram

Seal

Part #859600

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 859600. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Seal Strip 1180698
#8

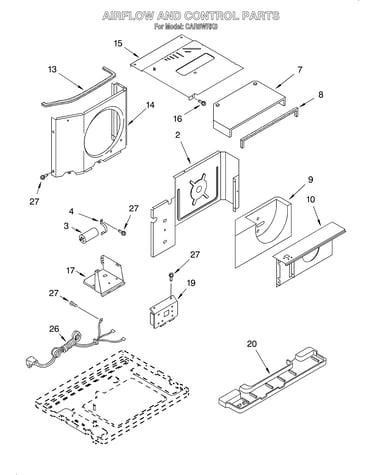

Airflow and control diagram

Seal strip

Part #1180698

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 1180698. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Ge Room Air Conditioner Outdoor Cover 484184
#14C

Optional diagram

Ge room air conditioner outdoor cover

Part #484184

$54.49 |
10% OFF Phone Price : $60.49
In Stock
Anticipator Clip 8040169
#28

Unit/literature diagram

Anticipator clip

Part #8040169

This item is not returnable
$3.29
In Stock
Overload 1161170
#3

Unit/literature diagram

Overload

Part #1161170

Replaced by #WP1161170

?
Manufacturer substitution
This part replaces 1161170. Substitute parts can look different from the original.
$43.09
In Stock
Screw 488234
#22

Cabinet diagram

Screw

Part #488234

Replaced by #WP488234

?
Manufacturer substitution
This part replaces 488234. Substitute parts can look different from the original.
This item is not returnable
$4.20
In Stock
Cover 950213
#11

Unit/literature diagram

Cover

Part #950213

Replaced by #WP950036

?
Manufacturer substitution
This part replaces 950213. Substitute parts can look different from the original.
This item is not returnable
$6.69
In Stock
