DeWalt
Drill/Driver

Model # DW259 Official DeWalt depth sensitive screwdriver

Here are the diagrams and repair parts for Official DeWalt DW259 depth sensitive screwdriver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Power Tool Bearing 330003-09
#33

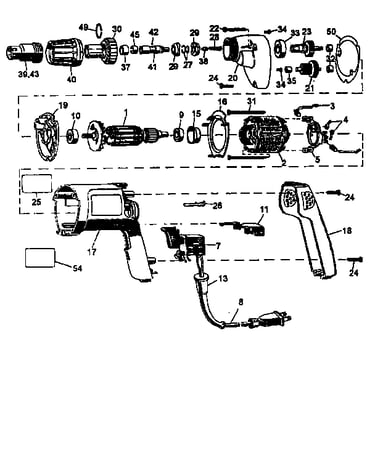

Unit parts diagram

Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

Clutch Housing 448859-03
#30

Unit parts diagram

Clutch housing

Part #448859-03

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Handle Cover 450594-03
#18

Unit parts diagram

Black & decker handle cover

Part #450594-03

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#13

Unit parts diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 445217-02
#15

Unit parts diagram

Sleeve

Part #445217-02

The manufacturer no longer makes this part, and there's no substitute part

Sears Screwdriver Clutch 96558-00
#29

Unit parts diagram

Sears screwdriver clutch

Part #96558-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Retain Ring 450750-00
#49

Unit parts diagram

Black & decker retain ring

Part #450750-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Fan Baffle 447866-00
#16

Unit parts diagram

Sears fan baffle

Part #447866-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Gear Case 448658-03
#19

Unit parts diagram

Dewalt gear case

Part #448658-03

The manufacturer no longer makes this part, and there's no substitute part

Sears Bearing 448848-00
#37

Unit parts diagram

Sears bearing

Part #448848-00

The manufacturer no longer makes this part, and there's no substitute part
