Model # 59678186890 Official Kenmore 18000-btu room air conditioner

Here are the diagrams and repair parts for Official Kenmore 59678186890 18000-btu room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Screw M0245203
#42

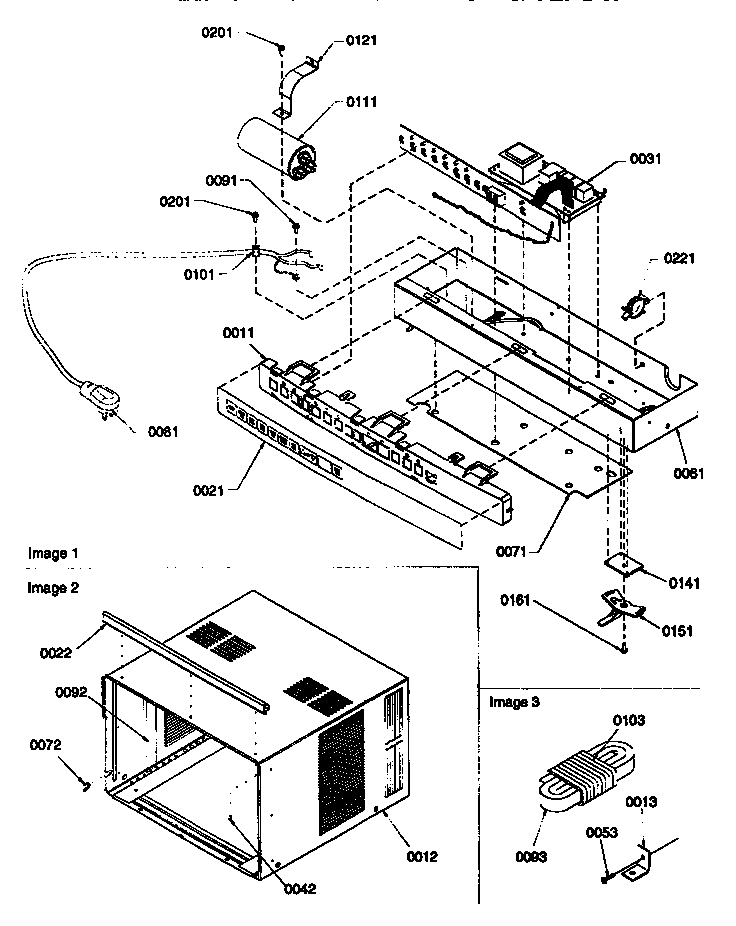

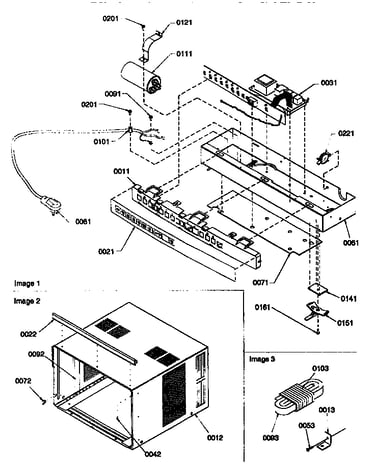

Control assembly diagram

Screw

Part #M0245203

Replaced by #WP693995

?
Manufacturer substitution
This part replaces M0245203. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw M0241118
#4811

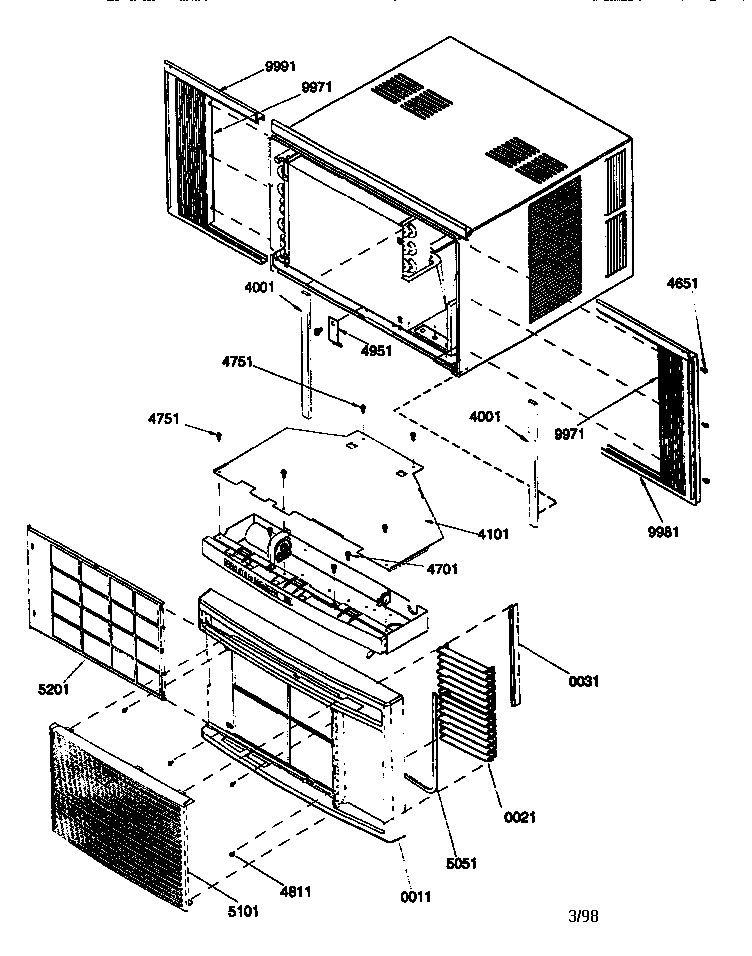

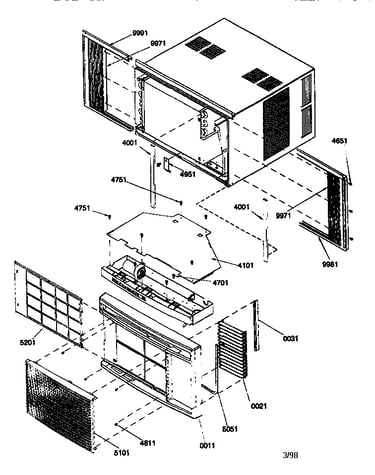

Front assembly diagram

Screw

Part #M0241118

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0241118. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Parts List 20101501

#NI

All parts diagram

Parts list

Part #20101501

The manufacturer no longer makes this part, and there's no substitute part

Overly-200 20100401
#21

Control assembly diagram

Overly-200

Part #20100401

The manufacturer no longer makes this part, and there's no substitute part

Tube 20092301
#1301

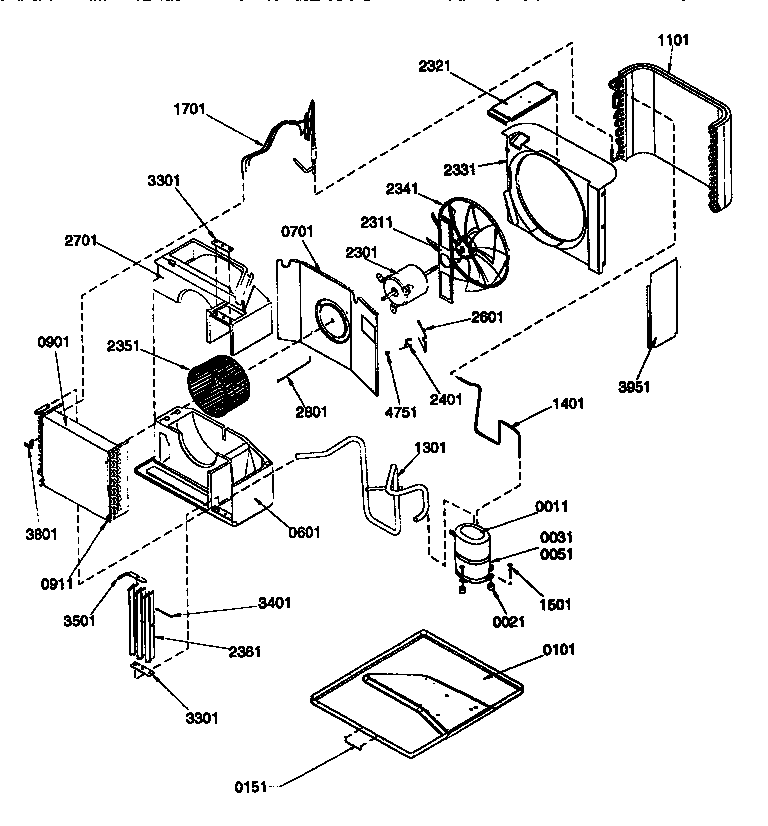

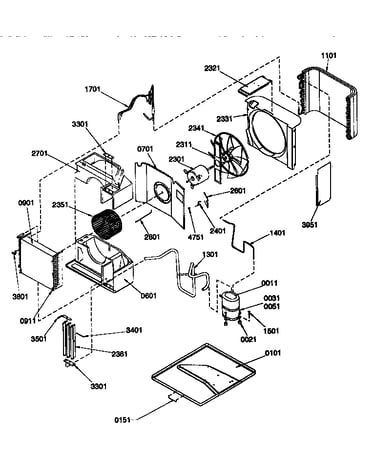

Chassis assembly diagram

Tube

Part #20092301

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 10720801
#31

Chassis assembly diagram

Terminal cover

Part #10720801

The manufacturer no longer makes this part, and there's no substitute part

Spring 20055502
#2401

Chassis assembly diagram

Spring

Part #20055502

The manufacturer no longer makes this part, and there's no substitute part

Base 20051502
#3301

Chassis assembly diagram

Base

Part #20051502

The manufacturer no longer makes this part, and there's no substitute part

Gasket 10839707
#92

Control assembly diagram

Gasket

Part #10839707

The manufacturer no longer makes this part, and there's no substitute part

Clip 20075601
#3801

Chassis assembly diagram

Clip

Part #20075601

The manufacturer no longer makes this part, and there's no substitute part
