Model # DR200 TYPE 1 Official Black & Decker 3/8" vsr drill

Here are the diagrams and repair parts for Official Black & Decker DR200-TYPE-1 3/8" vsr drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Gear And Pinion 385988-00
#8

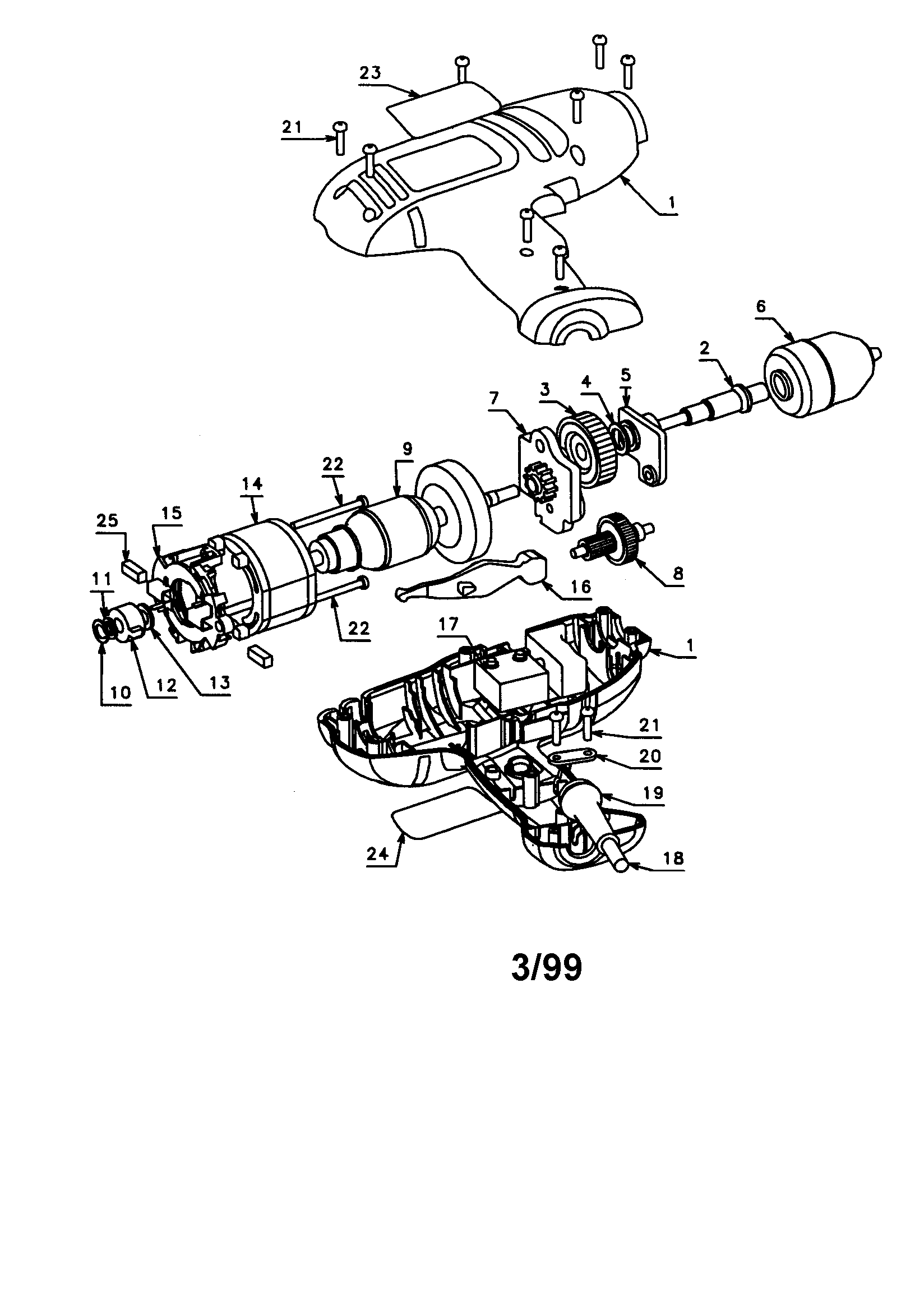

Replacement parts diagram

Gear and pinion

Part #385988-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Chuck And Key 283186-00
#6

Replacement parts diagram

Black & decker chuck and key

Part #283186-00

The manufacturer no longer makes this part, and there's no substitute part

Front Bearing Plate 385681-00
#5

Replacement parts diagram

Front bearing plate

Part #385681-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-08
#22

Replacement parts diagram

Screw

Part #330019-08

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Spindle Gear 385682-00
#3

Replacement parts diagram

Black & decker spindle gear

Part #385682-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Htsnk&brng 158478-00
#12

Replacement parts diagram

Dewalt htsnk&brng

Part #158478-00

The manufacturer no longer makes this part, and there's no substitute part

Field 385849-00
#14

Replacement parts diagram

Field

Part #385849-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-03
#21

Replacement parts diagram

Screw

Part #330019-03

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Retain Ring 37653-00
#10

Replacement parts diagram

Dewalt retain ring

Part #37653-00

The manufacturer no longer makes this part, and there's no substitute part

Cord Protector 385693-00
#19

Replacement parts diagram

Cord protector

Part #385693-00

The manufacturer no longer makes this part, and there's no substitute part
