Model # 2582397970 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2582397970 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Burner 10397-8
#12

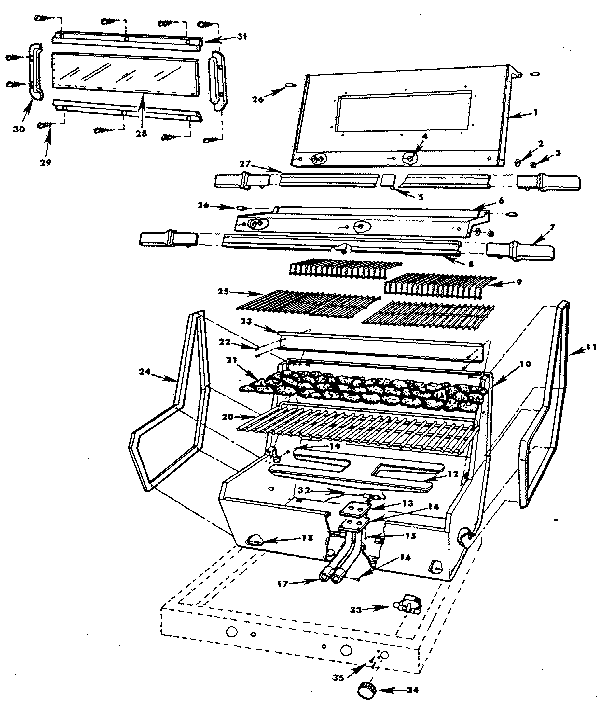

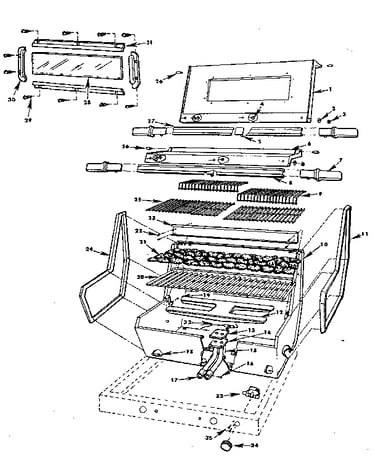

Grill and burner section diagram

Burner

Part #10397-8

Replaced by #1100233

?
Manufacturer substitution
This part replaces 10397-8. Substitute parts can look different from the original.
$67.28 |
8% OFF Phone Price : $73.28
In Stock
Hose Assembly 10111-4
#125

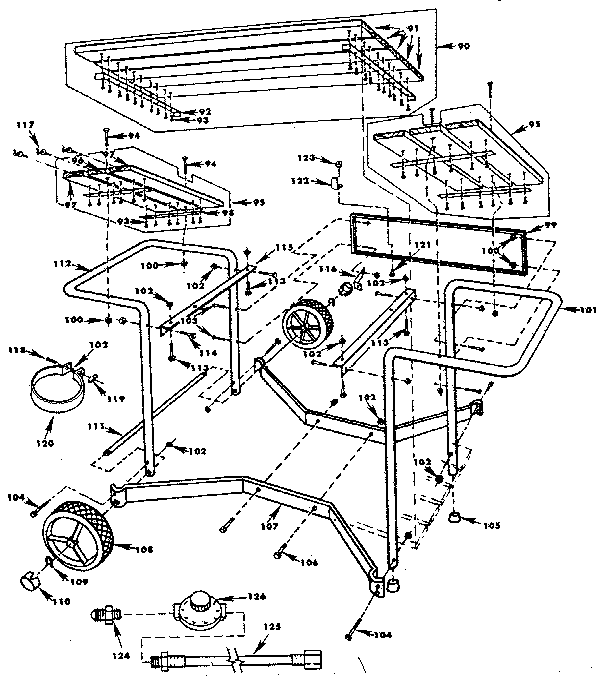

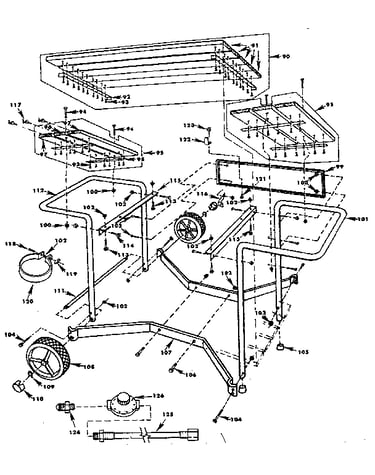

Kenmore outdoor gas grill cart diagram

Hose assembly

Part #10111-4

The manufacturer no longer makes this part, and there's no substitute part

Manifold 10152-16
#50

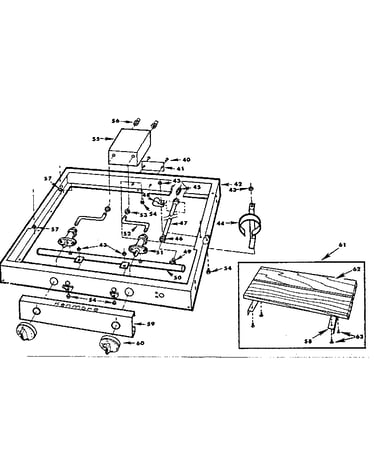

Grill support diagram

Manifold

Part #10152-16

The manufacturer no longer makes this part, and there's no substitute part

Certif Plate 10081-186
#41

Grill support diagram

Certif plate

Part #10081-186

The manufacturer no longer makes this part, and there's no substitute part

Cookbook 10004-463
#4

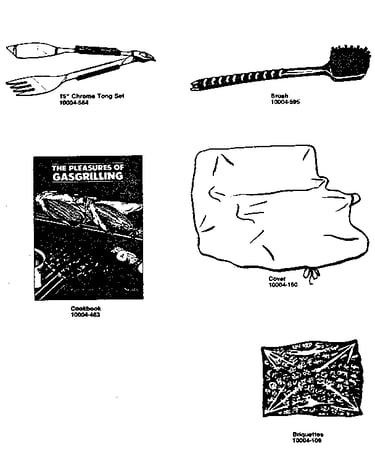

Optional accessories diagram

Cookbook

Part #10004-463

The manufacturer no longer makes this part, and there's no substitute part

Control Knob 10472-19
#60

Grill support diagram

Control knob

Part #10472-19

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw STD522505
Cap screw

Part #STD522505

The manufacturer no longer makes this part, and there's no substitute part

Briquet Set 10010-3
#21

Grill and burner section diagram

Briquet set

Part #10010-3

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw STD522515
#104

Kenmore outdoor gas grill cart diagram

Cap screw

Part #STD522515

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10711-42
#96

Kenmore outdoor gas grill cart diagram

Shelf

Part #10711-42

The manufacturer no longer makes this part, and there's no substitute part
