Model # 143604052 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143604052 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

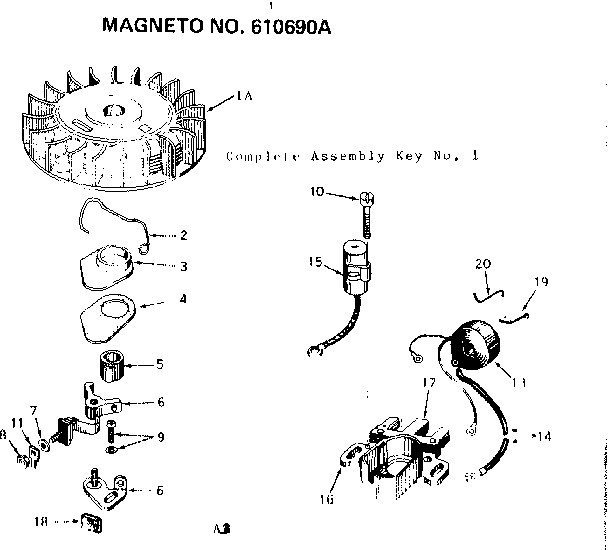

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
O-ring 631028
#16

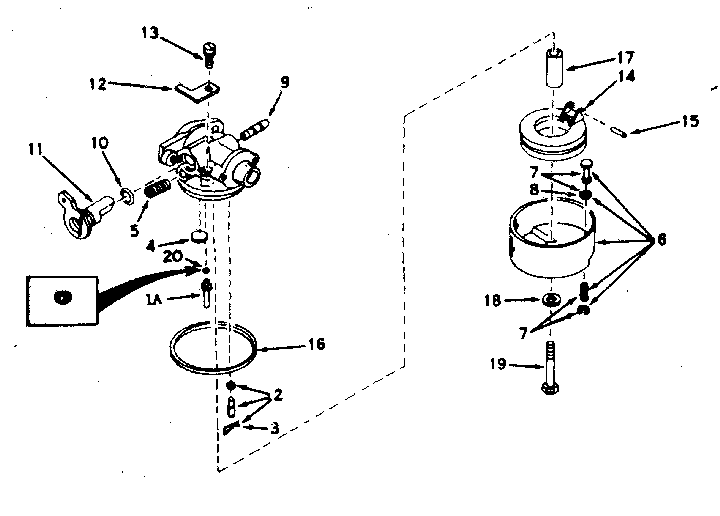

Carburetor diagram

O-ring

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Needl/seat 631021
#2

Carburetor diagram

Needl/seat

Part #631021

The manufacturer no longer makes this part, and there's no substitute part

Starter Rope 590386
#9

Rewind starter diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Fuel Line 29774
#118

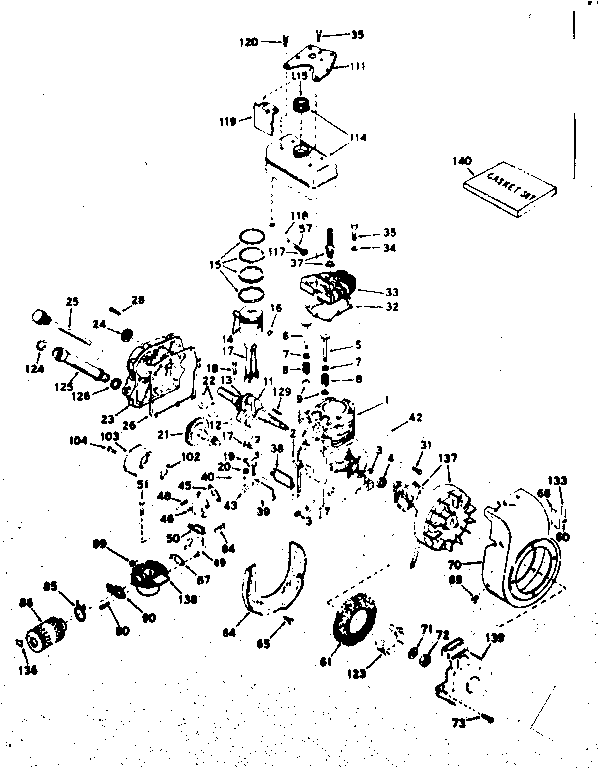

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Clamp 32973
#85

Basic engine diagram

Clamp

Part #32973

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 631023
#14

Carburetor diagram

/carb float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

/fuel Clamp 26460
#117

Basic engine diagram

/fuel clamp

Part #26460

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#80

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Screw 30564
#28

Basic engine diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part

Screw 650176
#48

Basic engine diagram

Screw

Part #650176

The manufacturer no longer makes this part, and there's no substitute part
