Eureka
Canister Vacuum

Model # 3651AM Official Eureka canister vacuum

Here are the diagrams and repair parts for Official Eureka 3651AM canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Latch Cover 38280-1
#11

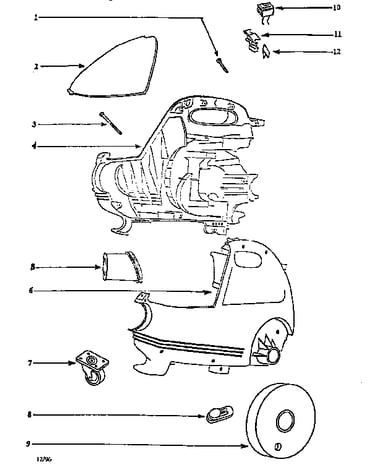

Base assembly diagram

Latch cover

Part #38280-1

The manufacturer no longer makes this part, and there's no substitute part

Shell Gask 60033
Shell gask

Part #60033

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 38333
#5

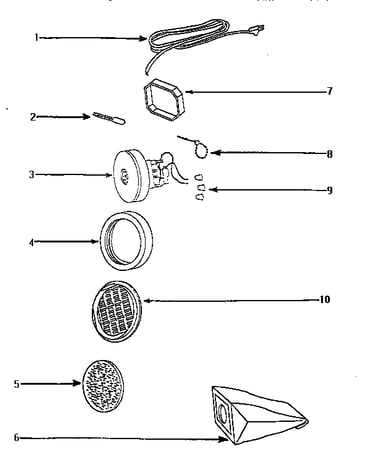

Unit parts diagram

Vacuum motor safety filter

Part #38333

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly 53363-4
#1

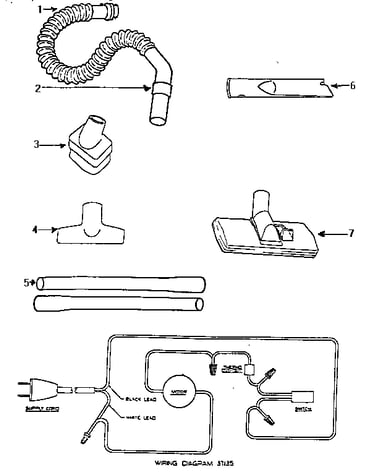

Attachment parts diagram

Vacuum hose assembly

Part #53363-4

The manufacturer no longer makes this part, and there's no substitute part

Plate 14757-1
#10

Unit parts diagram

Plate

Part #14757-1

The manufacturer no longer makes this part, and there's no substitute part

Spring-lat 57867
#12

Base assembly diagram

Spring-lat

Part #57867

The manufacturer no longer makes this part, and there's no substitute part

Plate Hose 27281-1
#5

Base assembly diagram

Plate hose

Part #27281-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 14762-1
#9

Base assembly diagram

Vacuum wheel

Part #14762-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 53197-2
#3

Base assembly diagram

Screw

Part #53197-2

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw, 10-pack 53197-1
#1

Base assembly diagram

Carpet cleaner screw, 10-pack

Part #53197-1

The manufacturer no longer makes this part, and there's no substitute part
