Troybilt
Gas Snowblower

Model # 31AH5W75063 Official Troybilt snow thrower

Here are the diagrams and repair parts for Official Troybilt 31AH5W75063 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

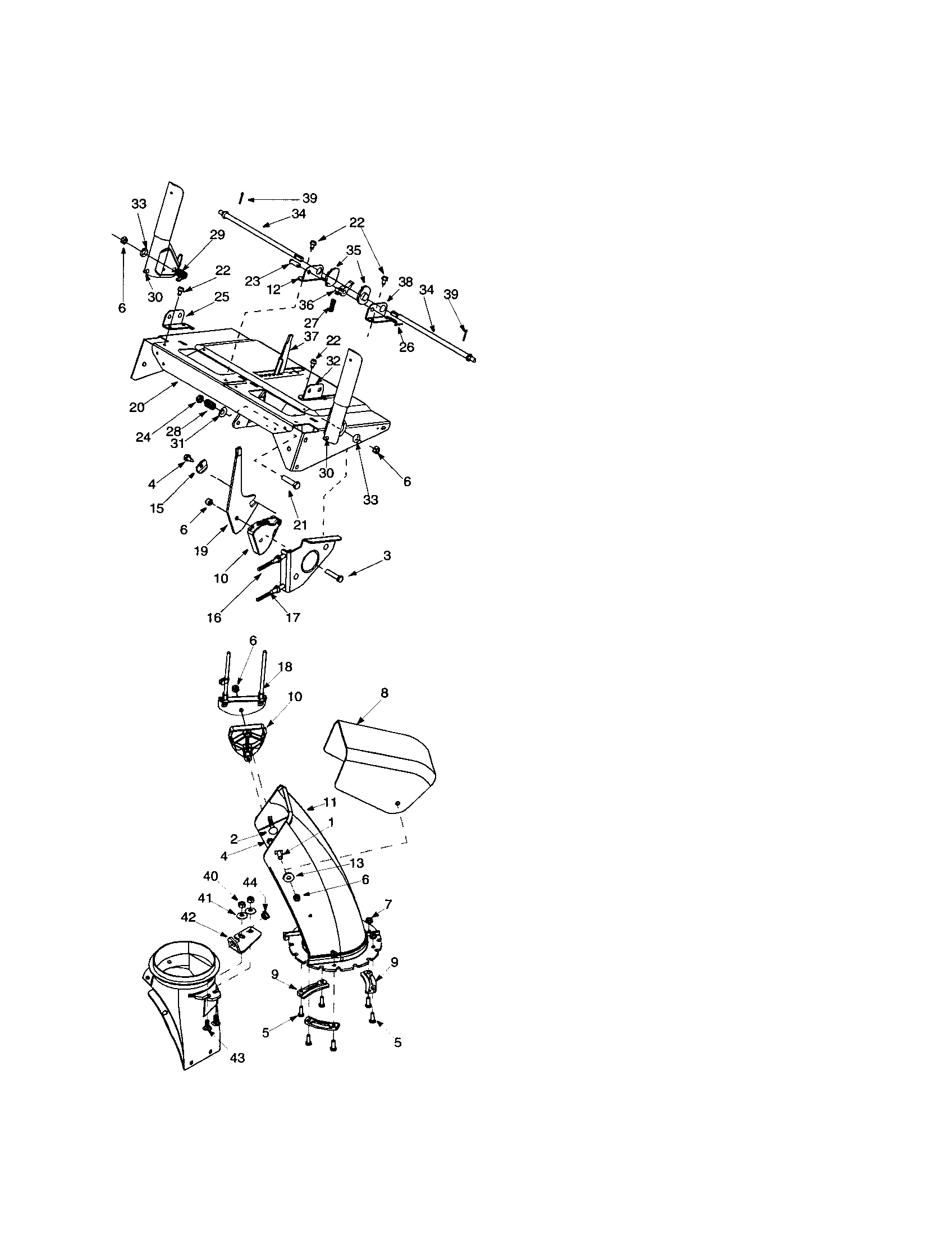

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 213 parts  |
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Knob Wing Nut 720-0284
#17

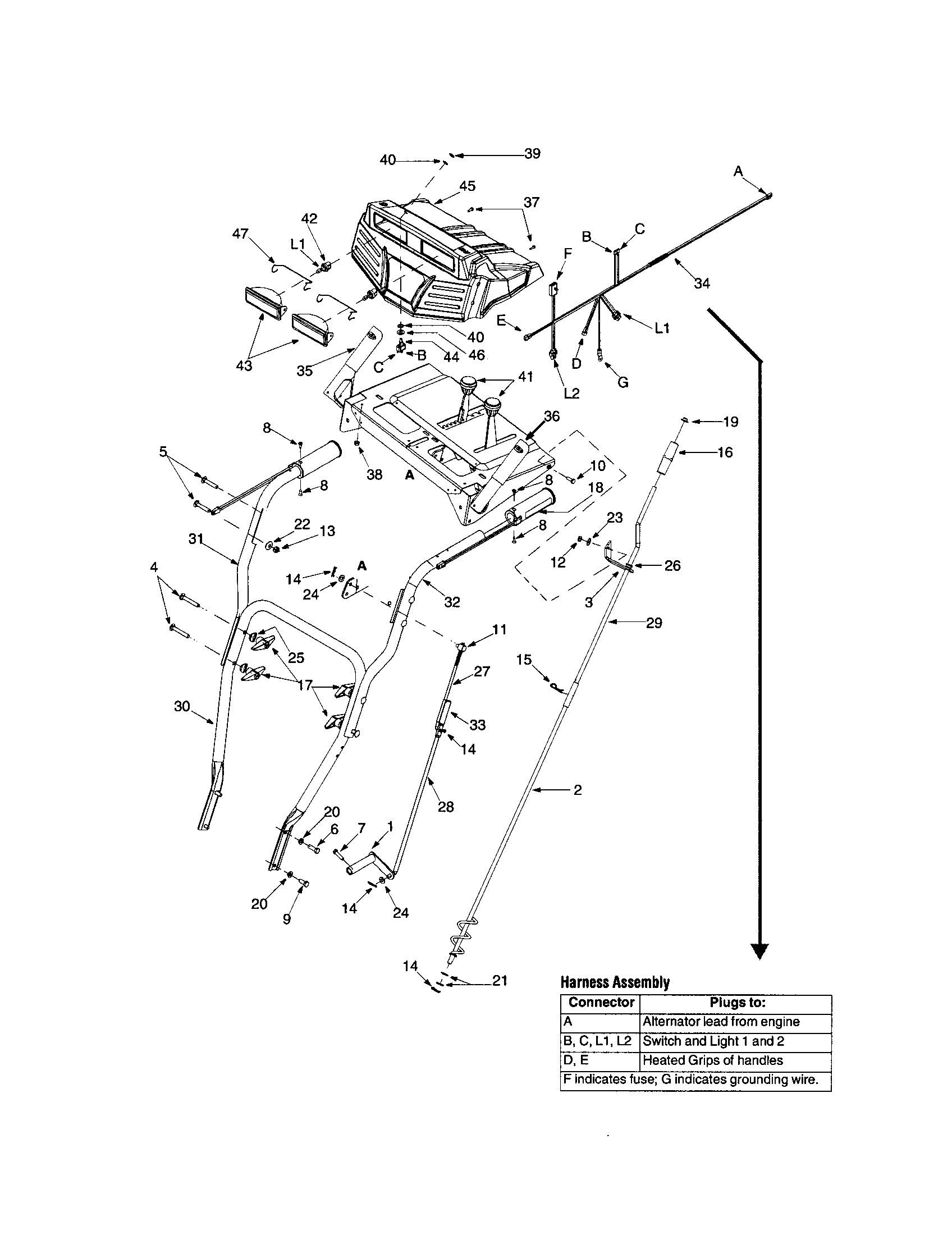

Handle/handle panel diagram

Knob wing nut

Part #720-0284

Replaced by #720-04072A

?
Manufacturer substitution
This part replaces 720-0284. Substitute parts can look different from the original.
BEST SELLER
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Shave Plate 784-5575
#39

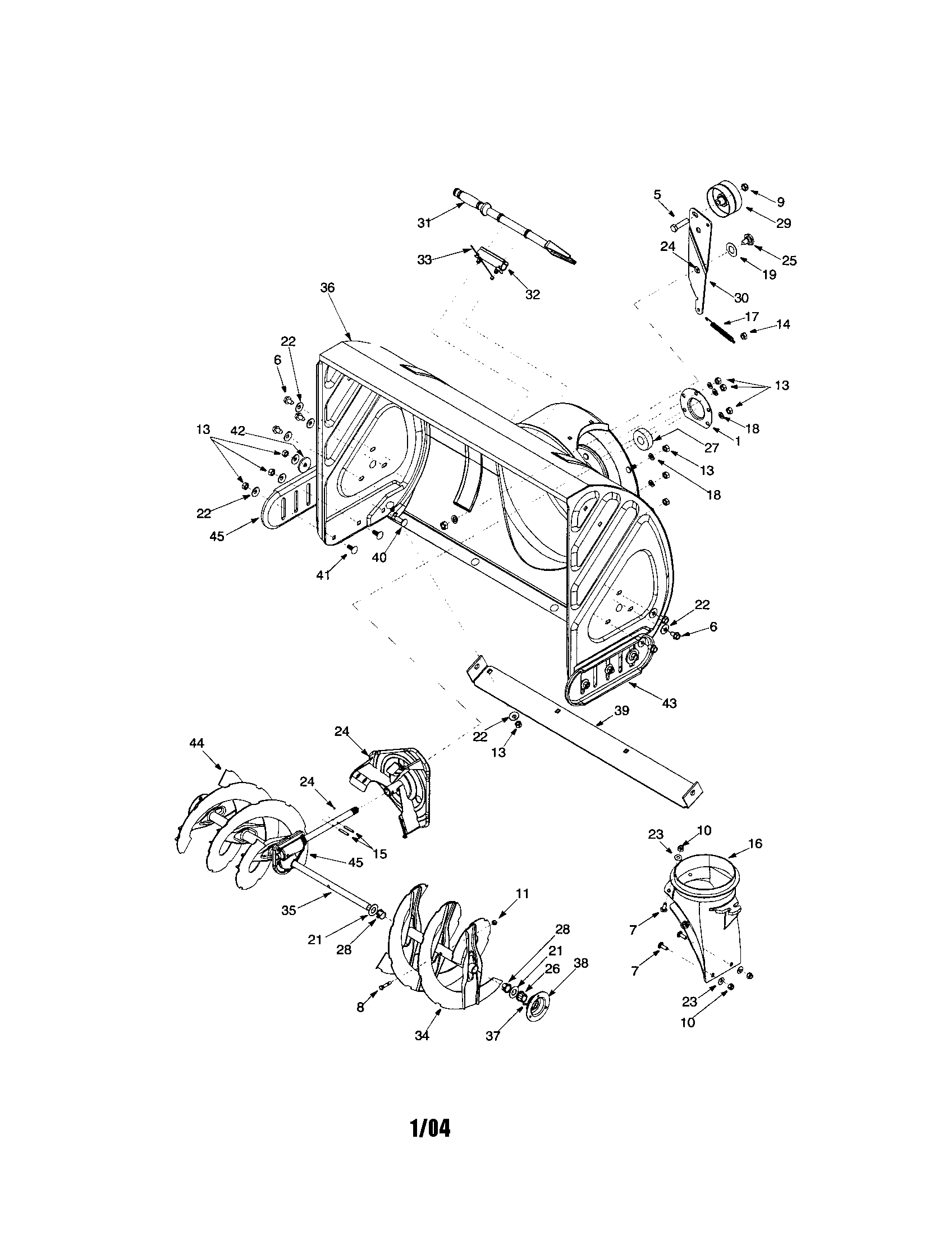

Auger housing/30" spiral blades diagram

Shave plate

Part #784-5575

Replaced by #790-00119-0637

?
Manufacturer substitution
This part replaces 784-5575. Substitute parts can look different from the original.
BEST SELLER
$40.75 |
13% OFF Phone Price : $46.75
In Stock
Snowblower Flange Bearing 741-0493A
#28

Auger housing/30" spiral blades diagram

Snowblower flange bearing

Part #741-0493A

Replaced by #741-0493C

?
Manufacturer substitution
This part replaces 741-0493A. Substitute parts can look different from the original.
BEST SELLER
$7.63
In Stock
Ball Bearing 741-0600
#37

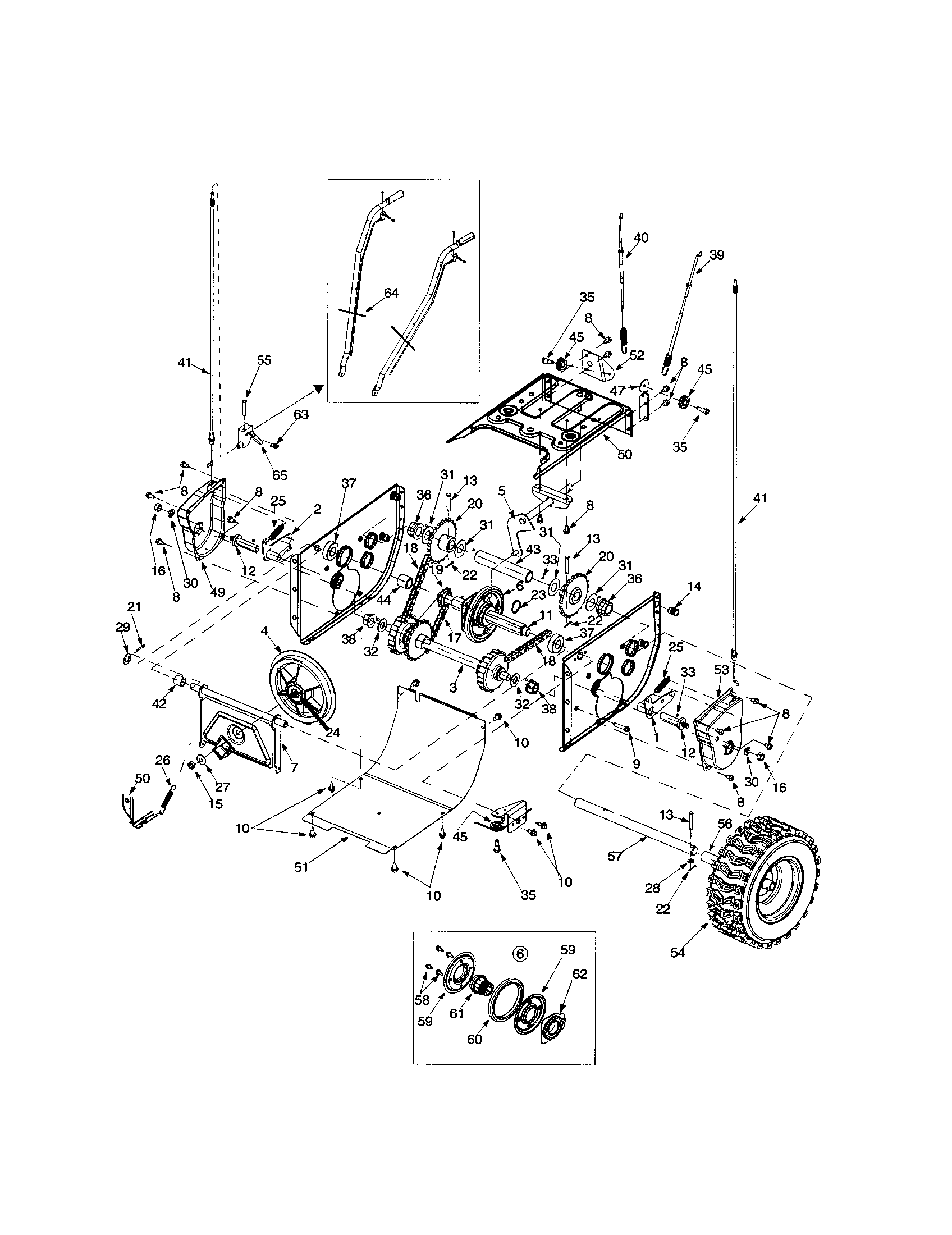

Wheels/axle/frame/cover diagram

Ball bearing

Part #741-0600

Replaced by #941-0600

?
Manufacturer substitution
This part replaces 741-0600. Substitute parts can look different from the original.
BEST SELLER
$28.71 |
17% OFF Phone Price : $34.71
In Stock
Yard Machines Lawn & Garden Equipment Bell Washer (replaces 936-0242) 736-0242
Yard machines lawn & garden equipment bell washer (replaces 936-0242)

Part #736-0242

BEST SELLER
This item is not returnable
$6.58 |
13% OFF Phone Price : $7.58
In Stock
Yard-man Snowblower Shear Bolt (replaces 910-0890a) 710-0890A
#8

Auger housing/30" spiral blades diagram

Yard-man snowblower shear bolt (replaces 910-0890a)

Part #710-0890A

This item is not returnable
$2.55 |
28% OFF Phone Price : $3.55
In Stock
Bearing 741-0245
#26

Auger housing/30" spiral blades diagram

Bearing

Part #741-0245

Replaced by #941-0245

?
Manufacturer substitution
This part replaces 741-0245. Substitute parts can look different from the original.
$12.75 |
14% OFF Phone Price : $14.75
In Stock
Extension Cord 629-0071
#31

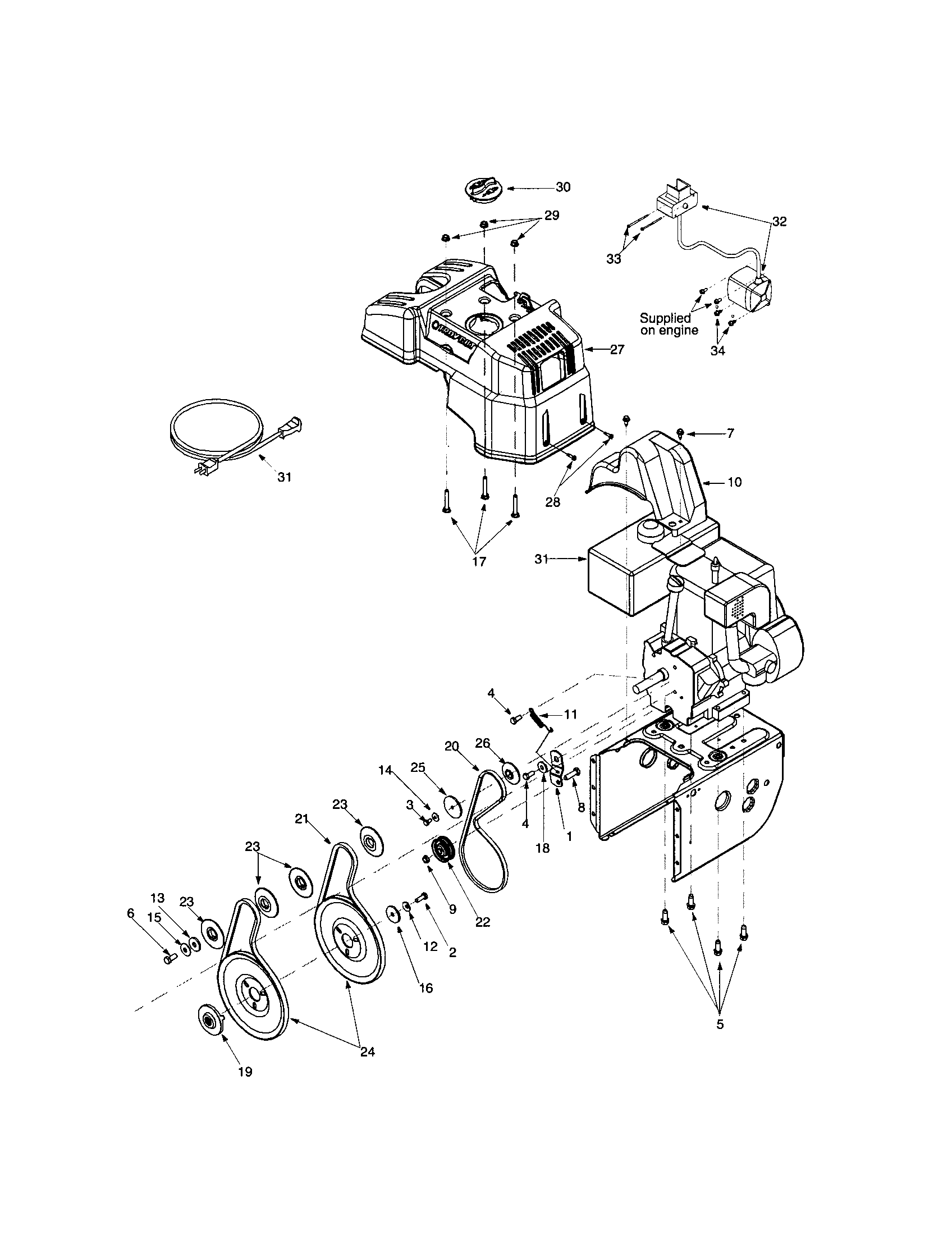

Shroud/drive/electric starter diagram

Extension cord

Part #629-0071

Replaced by #929-0071B

?
Manufacturer substitution
This part replaces 629-0071. Substitute parts can look different from the original.
$30.18 |
17% OFF Phone Price : $36.18
In Stock
Belt Wheel 754-0346
#20

Shroud/drive/electric starter diagram

Belt wheel

Part #754-0346

Replaced by #954-0346

?
Manufacturer substitution
This part replaces 754-0346. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$29.80 |
17% OFF Phone Price : $35.80
In Stock
