Amana
Countertop Microwave

Model # C64TMA Official Amana microwave

Here are the diagrams and repair parts for Official Amana C64TMA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

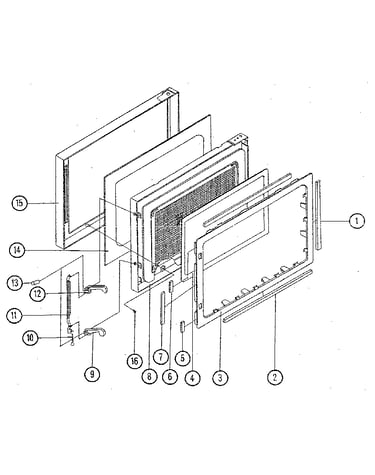

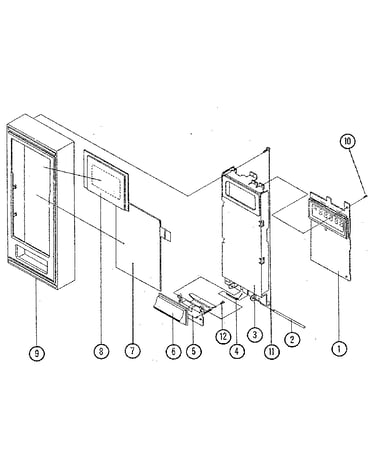

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Lamp R0812005
#4

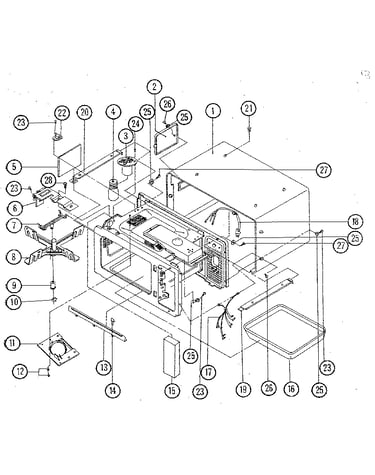

Microwave parts diagram

Lamp

Part #R0812005

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces R0812005. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Switch R0802523
#14

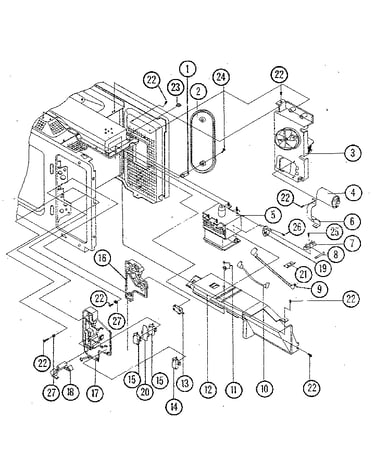

Magnetron and air flow diagram

Switch

Part #R0802523

Replaced by #WP56001036

?
Manufacturer substitution
This part replaces R0802523. Substitute parts can look different from the original.
$42.20
In Stock
Fan R0809509
#8

Magnetron and air flow diagram

Fan

Part #R0809509

Replaced by #WPM0805102

?
Manufacturer substitution
This part replaces R0809509. Substitute parts can look different from the original.
$8.69 |
10% OFF Phone Price : $9.69
In Stock
Capacitor R0811506
#4

Magnetron and air flow diagram

Capacitor

Part #R0811506

Replaced by #D8547928

?
Manufacturer substitution
This part replaces R0811506. Substitute parts can look different from the original.
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Diode R0809508
#6

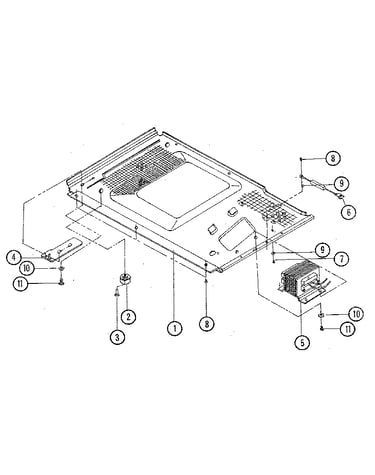

Base diagram

Diode

Part #R0809508

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces R0809508. Substitute parts can look different from the original.
$23.01 |
21% OFF Phone Price : $29.01
In Stock
Screw R0800061
#24

Magnetron and air flow diagram

Screw

Part #R0800061

The manufacturer no longer makes this part, and there's no substitute part

Outer Clip R0801516
#21

Microwave parts diagram

Outer clip

Part #R0801516

The manufacturer no longer makes this part, and there's no substitute part

Tooth Washer R0800508
Tooth washer

Part #R0800508

The manufacturer no longer makes this part, and there's no substitute part

Bracket R0805625
#6

Magnetron and air flow diagram

Bracket

Part #R0805625

The manufacturer no longer makes this part, and there's no substitute part

Cushion R0804508
#15

Microwave parts diagram

Cushion

Part #R0804508

The manufacturer no longer makes this part, and there's no substitute part
