Model # 55LW9800UAAUSYLJR Official LG television

Here are the diagrams and repair parts for Official LG 55LW9800UAAUSYLJR television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Screw Assembly FAB30016121
#A10

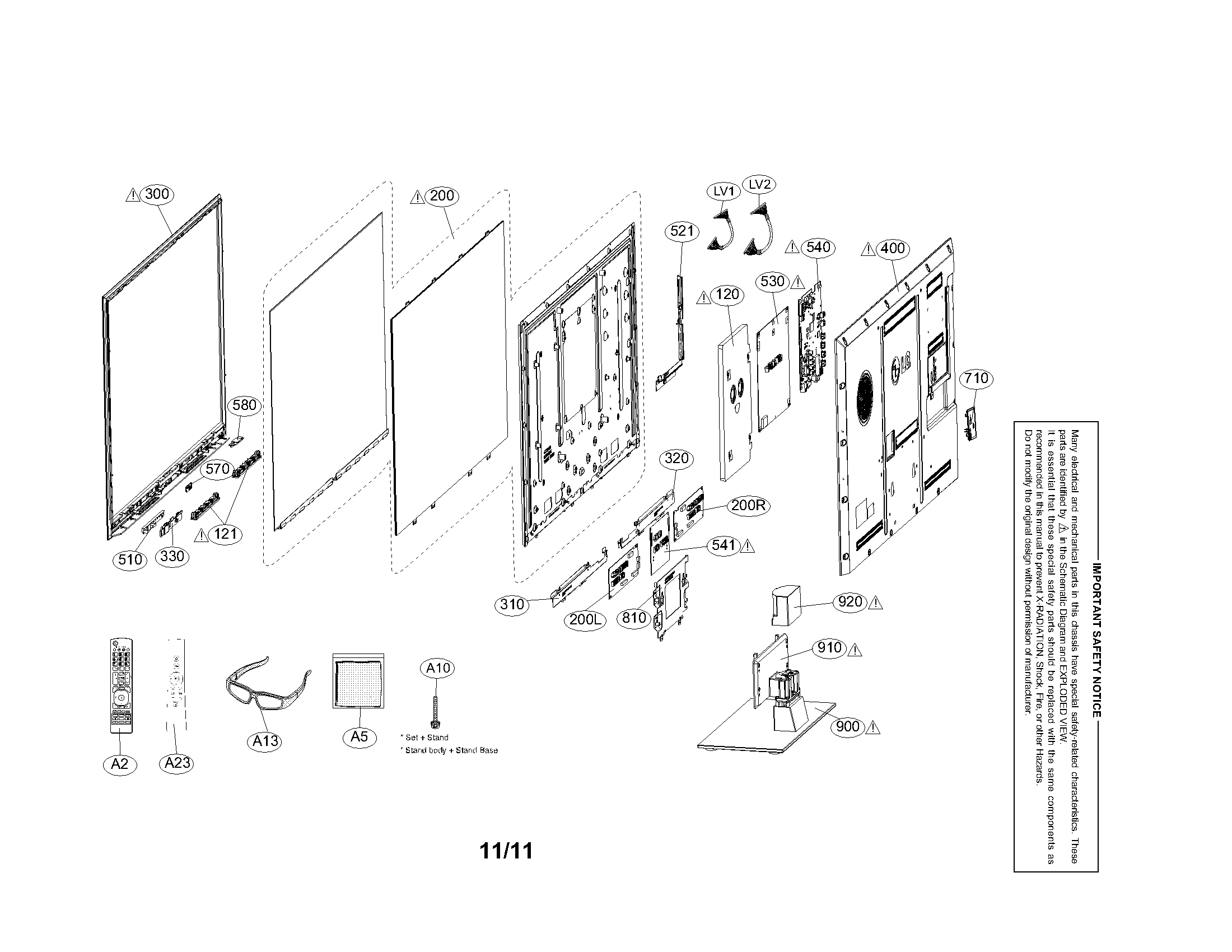

Exploded view parts diagram

Screw assembly

Part #FAB30016121

This item is not returnable
$2.83
In Stock
Lg Lcd Assy,lcm AFB73130539
#200

Exploded view parts diagram

Lg lcd assy,lcm

Part #AFB73130539

$3168.34
In Stock
Lg Cable EAD61668707
#LV2

Exploded view parts diagram

Lg cable

Part #EAD61668707

$14.00
In Stock
Acces,3d Gla EBX61508301
#A13

Exploded view parts diagram

Acces,3d gla

Part #EBX61508301

$58.47
In Stock
Lg Sub Pcb Assembly EBR72670301
#510

Exploded view parts diagram

Lg sub pcb assembly

Part #EBR72670301

$48.53
In Stock
Lg Plate MGJ62704201
#310

Exploded view parts diagram

Lg plate

Part #MGJ62704201

$10.57
In Stock
Lg Pcb Assy,led EBR73889101
#200L

Exploded view parts diagram

Lg pcb assy,led

Part #EBR73889101

$148.62
In Stock
Lg Bracket MAZ62844501
#330

Exploded view parts diagram

Lg bracket

Part #MAZ62844501

This item is not returnable
$2.53
In Stock
Bag MAF60779001
#A5

Exploded view parts diagram

Bag

Part #MAF60779001

This item is not returnable
$2.83
In Stock
Lg Cable EAD61858717
#LV1

Exploded view parts diagram

Lg cable

Part #EAD61858717

$34.96
In Stock
