Model # RE50001 Official Hotpoint microwave

Here are the diagrams and repair parts for Official Hotpoint RE50001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

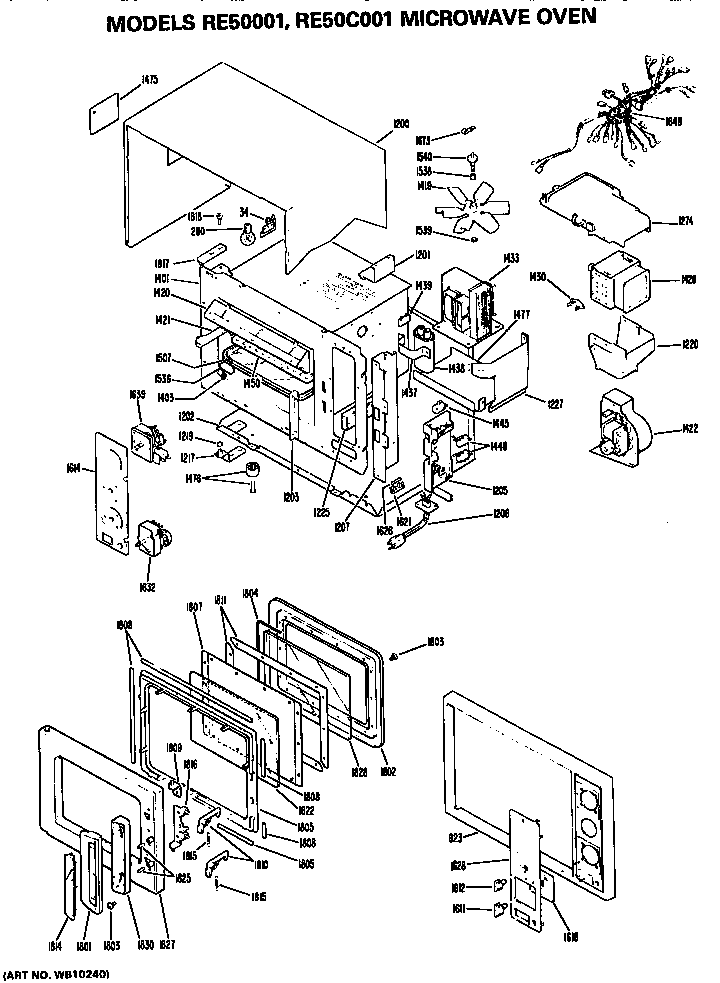

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Rectifier WB27X5318

#1439

All parts diagram

Rectifier

Part #WB27X5318

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5318. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Caseouter Ad WB56X1718

#1200

All parts diagram

Caseouter ad

Part #WB56X1718

$72.99
In Stock
Use And Care Guide 39-4533

#LITR

All parts diagram

Use and care guide

Part #39-4533

$8.49
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Spacer WB2X7389

#1538

All parts diagram

Stirrer spacer

Part #WB2X7389

The manufacturer no longer makes this part, and there's no substitute part

Bolt Mtg Hinge WB1X5692

#1818

All parts diagram

Bolt mtg hinge

Part #WB1X5692

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WB27X5319

#1438

All parts diagram

Capacitor

Part #WB27X5319

The manufacturer no longer makes this part, and there's no substitute part

Bottom WB27X07

#NA

All parts diagram

Bottom

Part #WB27X07

The manufacturer no longer makes this part, and there's no substitute part

Control Trim WB7X6844

#923

All parts diagram

Control trim

Part #WB7X6844

The manufacturer no longer makes this part, and there's no substitute part

Gasket WB2X7405

#1809

All parts diagram

Gasket

Part #WB2X7405

The manufacturer no longer makes this part, and there's no substitute part
